3NB-350 Mud Pump For Water Well Drilling Triplex Back Forth Piston

3NB-350 Mud Pump For Water Well Drilling Triplex Back Forth Piston
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

Mud Pump For Water Well Drilling

,

Forth Piston triplex mud pump

,

3NB-350 Mud Pump

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Model Number: 3NB-350
Payment & Shipping Terms
Payment Terms: T/T
Product Description



3NB-350 Mud Pump

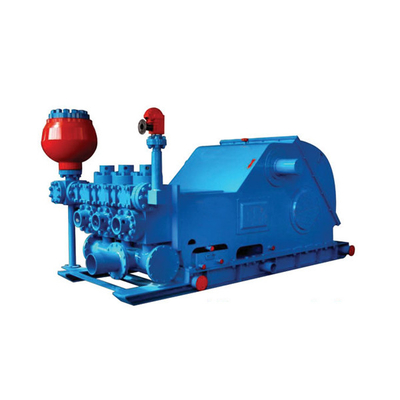

3NB-350 Mud Pump For Water Well Drilling Triplex Back Forth Piston 0



3NB-350 Single Action Triplex back and forth piston pump



Technical Specifications
Model Type input Power

Motiv

e power

Rated pump

speed

Stroke

length

Gear Ratio
3NB-350

Single Action

 Triplex

350hp

6190ZC-1(diesel engine)

Y400-6.28KW(motor)

120 Impact/min 180 4.483

Rated input

speed(Rev/min)

Continuous

speed(Rev/min)

Inhalation

diameter

Discharge pipe

diameter

Dimensions(mm) Weight
582.8 540 203mm 76mm 3100*2080*2015 8.058t



Performance parameter



Pump stroke Bore(mm)
  90 100 110 120 130 140
Impact/min Displacement(L/S)
130 7.44 9.18 11.1 13.23 15.52 18.01
120 6.87 8.48 10.26 12.21 14.33 16.62
110 6.29 7.77 9.4 11.19 13.14 15.23
100 5.72 7.06 8.55 10.17 11.94 13.84
Pump pressure(Mpa) 31 25 20.8 17.5 14.9 12.8
Mechanical efficiency by 90%     100% volumetric efficiency
