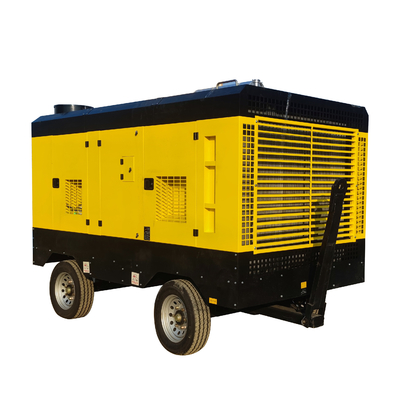

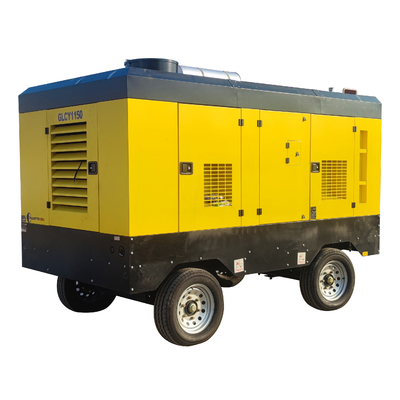

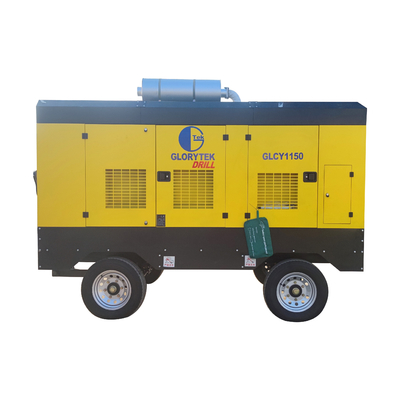

GLORYTEK Drilling Rig Tools Diesel Engine Driven Air Compressor Portable For Industrial
GLCY- (two-stage compression) series diesel-driven screw air compressor is a product carefully designed and manufactured by our company for customers.
It is mainly powered by a diesel engine. The air compressor head is connected through a coupling to generate air, which then drives a rock drill and other pneumatic tools to work. , To carry out work such as drilling;
its characteristic is that it can work in the field where there is no electricity.
| Diesel Driven Compressors Technical Data | |||||||||||
| Model | LUY025-7 | LUY036-7 | LUY050-7 | LYU055-7 | LUY079-7 | LUY085-14 | LUY100-10 | LUY100-12 | LUY108-7 | LUY118-7 | |
| Free air delivery | 2.5 | 3.6 | 5 | 5.5 | 7.9 | 8.5 | 10 | 10 | 10.8 | 11.8 | |
| Working pressure | bar(e) | 7 | 7 | 7 | 7 | 7 | 14 | 10 | 12 | 7 | 7 |
| max./min.Working speed | rpm | 3000-2400 | 2700-1500 | 2800-1500 | 2750-1850 | 2000-1400 | 2300-1430 | ||||
| Noiselevel(soundpressure) at 7m distance |
dB(A) | <70 | <80 | <70 | 77+/-3 | 78+/-3 | |||||
| Capacity of fuel tank | L | 32 | 80 | 80 | 185 | 185 | |||||
| Air outlet valves-qty x size | inches | 2*G3/4 | 2*G3/4 | 3*G3/4 | 1*G3/4 1*G1 1/2 | 1*G3/4 1*G1 1/2 | |||||
| Length with towing device(min.) | mm | 2729 | 2821 | 2200 | 2862 | 2862 | |||||
| Length with horizontal towbar | mm | 2953 | 2821 | 3100 | 3651 | 3651 | |||||
| Width | mm | 1280 | 1470 | 1400 | 1790 | 1790 | |||||
| Height | mm | 1205 | 1361 | 1280 | 1908 | 1908 | |||||
| Operational weight(full fuel tank) | kg | 556 | 652 | 688 | 960 | 1500 | 1680 | ||||
| Engine | |||||||||||
| Manufacturer | KUBOTA | YTO | YTO | DEUTZ | CUMMINS | CUMMINS | |||||
| Engine type | D1105 | YND485G | YND490G | D2011L03 | 4BT3.9-C80 | 4BTAA3.9-C130 | |||||
| Cylinders | 3 | 3 | 3 | 4 | 4 | 4 | |||||
| Output at nominal speed | kW | 19.4 | 22 | 32 | 36 | 60 | 97 | ||||
| HP | 26 | 30 | 43 | 49 | 80 | 130 | |||||
| Diesel Driven Compressors Technical Data | |||||||||
| Modle | LUY120-14 | LUY130-17 | LUY170-13 | LYU184-12 | LUY202-10 | LUY214-9 | LUY239-7 | LUY230-14 | |
| Free air delivery | 12 | 13 | 17 | 18,4 | 20,2 | 21,4 | 23,9 | 23 | |
| Working pressure | bar(e) | 14 | 17 | 15 | 12 | 10 | 8,6 | 7 | 14 |
| max./min.Working speed | rpm | 2300-1270 | 2200-1450 | 2200-1400 | 2000-1400 | ||||
| Noiselevel(soundpressure) at 7m distance | dB(A) | 78+/-3 | 79+/-3 | 79+/-3 | 79+/-3 | ||||
| Capacity of fuel tank | L | 250 | 350 | 495 | |||||
| Air outlet valves-qty x size | inches | 1*G2 | 1*G2 | 1*G2 | |||||
| 1*G3/4 | 1*G3/4 | 1*G3/4 | |||||||
| Length with towing device(min.) | mm | 3525 | 3525 | 4210 | |||||
| Length with horizontal towbar | mm | 4550 | 4550 | 5260 | |||||
| Width | mm | 1770 | 1770 | 1800 | |||||
| Height | mm | 2230 | 2230 | 2631 | |||||
| Operational weight(full fuel tank) | kg | 3100 | 3500 | 3500 | 4600 | ||||
| Engine | |||||||||
| Manufacturer | CUMMINS | CUMMINS | CUMMINS | ||||||
| Engine type | 6BTA5.9-C180 | 6BTAA5.9-C205 | 6CTAA8.3-C240 | 6LTAA8.3-C315 | |||||
| Cylinders | 6 | 6 | 6 | ||||||
| Output at nominal speed | kW HP | 132 | 153 | 179 | 232 | ||||
| 180 | 205 | 240 | 311 | ||||||
| Modle | LUY250-12 | LUY270-10 | LUY290-9 | LYU180-19 | LUY215-21 | LUY213-17 | LUY300-17 | LUY330-21 | |
| Free air delivery | 25 | 27 | 29 | 18 | 21,8 | 23,1 | 30 | 33 | |
| Working pressure | bar(e) | 12 | 10 | 8,6 | 19 | 21 | 17 | 25 | 21 |
| max./min.Working speed | rpm | 2000-1400 | 2200-1400 | 2000-1400 | 1600-1100 | ||||
| Noiselevel(soundpressure) at 7m distance | dB(A) | 79+/-3 | 79+/-3 | 74+/-3 | |||||
| Capacity of fuel tank | L | 495 | 512 | 780 | |||||
| Air outlet valves-qty x size | inches | 1*G2 | 1*G2 | 1*G2 | |||||
| 1*G3/4 | 1*G3/4 | 1*G3/4 | |||||||
| Length with towing device(min.) | mm | 4210 | 4210 | 4710 | |||||
| Length with horizontal towbar | mm | 5260 | 5260 | 6120 | |||||
| Width | mm | 1800 | 2040 | 2100 | |||||
| Height | mm | 2631 | 2631 | 2570 | |||||
| Operational weight(full fuel tank) | kg | 4600 | 5100 | 5200 | 5750 | ||||
| Engine | |||||||||
| Manufacturer | CUMMINS | CUMMINS | CUMMINS | ||||||
| Engine type | 6LTAA8.3-C315 | 6CTAA8.3-C260 | 6LTAA8.8-C315 | QSZ 13-C475 | |||||
| Cylinders | 6 | 6 | 6 | 6 | |||||
| Output at nominal speed | kW | 232 | 194 | 232 | 354 | ||||
| HP | 311 | 260 | 311 | 475 | |||||
GLORYTEK 26/20 And 33/25 Diesel Engine Portable Air Compressor
| Model | 26/20 | 33/25 |
| machine | ||
| Nominal volume flow m3/min | 26(920) | 33 |
| Rated discharge pressure Mpa | 2.0(20) | 2.5 |
| Unit weight kg | 4500 | 6800 |
| Length * width * height | 4600×1950×2850 | 4700×2100×2500 |
| Tire size * number | 7.50-16×4 | 7.50-16×4 |
| Diesel engine | ||
| manufacturer | CUMMINS | CUMMINS |
| model number | 6LTAA8.9-C360 | QSZ13-C550 |
| type | Vertical, straight line, water cooling | Vertical, straight line, water cooling |
| Aspiration | Turbocharged medium cooling | Turbocharged medium cooling |
| Bore×trip×cylinders number | 114×145×6 | 130×163×6 |
| Displacement L | 8.9 | 13 |
| Rated speed r/min | 1800 | 1800 |
| Unloading speed r/min | 1400 | 1300 |
| Rated power HP | 265(360) | 550 |
| Diesel engine oil capacity L | 27.6 | 35 |
| Fuel tank capacity L | 400 | 600 |
| Voltage of electric system v | 24 | 24 |
| Head model | SKY11G194 | |
| Compression series | 2 | 2 |
| Compressor oil capacity L | 48 | 80 |
| Gas supply valve | G2×1, | G2×1, |
| Specification * quantity | G3/4×1 | G3/4×1 |
GLORYTEK Portable Electric Driven Air Compressor
| Compressor | LUY 100D-7 |
LUY 110D-10 |
LUY 130D-7 |
LYU 139D-10 |
LUY 165D-7 |
LUY 135D-13 |
LUY 165-10 |
LUY 203D-7 |
LUY 165D-14 |
|||||
| Free air delivery | 10 | 11 | 13 | 13.9 | 16.5 | 13.5 | 16.5 | 20.3 | 16.5 | |||||
| Pressure | bar(e) | 7 | 10 | 7 | 10 | 7 | 13 | 10 | 7 | 14 | ||||
| Noise | dB(A) | 73+/-3 | 75+/-3 | 75+/-3 | ||||||||||
| Max.Working Environment Temperature | ℃ | ≤50 | ≤50 | ≤50 | ||||||||||
| Dimensions | mm | 3651*1790*1850 | 4550*1770*2292 | 5260*1800*2590 | ||||||||||
| Weight | kg | 1800 | 1920 | 1920 | 3195 | 3195 | 3220 | 3220 | 3220 | 3220 | ||||
| Outlet size | 1*G1 1/2 | 1*G1 1/2 | 1*G1 1/2 1*G3/4 | |||||||||||
| 1*G3/4 | 1*G3/4 | |||||||||||||
| Tire size | 6.5-16*2 | 7.0-16*4 | 7.0-16*4 | |||||||||||
| Motor | kW | 55 | 75 | 75 | 90 | 90 | 110 | 110 | 110 | 132 | ||||
| Voltage | 380V/3/50HZ | 380V/3/50HZ | 380V/3/50HZ | |||||||||||
| Motor case | IP54/F | IP54/F | IP54/F | |||||||||||
| Compressor | LUY 210D-10 |
LUY 230D-8.5 |
LUY 210D-14 |
LUY 250D-10 |
LUY 280D-8.5 |
LUY 238D-14 |
LUY 220D-21 |
LUY 250D-21 |
LUY 290D-21 |
|||||
| Free air delivery | 21 | 23 | 21 | 25 | 28 | 23.8 | 22 | 25 | 29 | |||||
| Pressure | bar(e) | 10 | 8.5 | 14 | 10 | 8.5 | 14 | 21 | 21 | 21 | ||||
| Noise | dB(A) | 75+/-3 | 78+/-3 | |||||||||||
| Max.Working Environment Temperature | ℃ | ≤50 | ≤50 | |||||||||||
| Dimensions | mm | 5260*1800*2590 | 5260*2040*2630 | |||||||||||
| Weight | kg | 4360 | 4360 | 4500 | 4500 | 4500 | 4600 | 4700 | 4850 | 4900 | ||||
| Outlet size | 1*G1 1/2 1*G3/4 | 1*G1 1/2 1*G3/4 | ||||||||||||
| Tire size | 6.5-16*2 | 7.0-16*4 | 7.0-16*4 | |||||||||||
| Motor | kW | 132 | 132 | 160 | 160 | 160 | 180 | 200 | 220 | 250 | ||||
| Voltage | 380V/3/50HZ | 380V/3/50HZ | ||||||||||||
| Motor case | IP54/F | IP54/F | ||||||||||||
Glorytek Industry (Beijing) Co., Ltd. is an integrated corposration specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters,construlction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine,testing equipments etc. over 200 sets and more than 600 employees.
Our main products are surface mining drilling rig, water well drilling rigs, core drilling rigs, hdd drilling rigs, foundation drilling rigs, downhole motor, air compressor, dth hammer, hammer bit, tricone bit, pdc drill bit, button bit, drag bit, drill pipes, shank adaptor, core bit, wireline coring tools, rock reamer, iluted reamer, barrel reamer, stabilizer, drill collar etc.
1.The air compressor can be load in 20ft, 40ft container.
3.The delivery time for machine normally be 20 days after receiving payment.
4. Shipping by sea.
