Crawler Type Water Well Drill Rig Mini With 300m Drilling Depth

1
MOQ
Negotiable
Price
Crawler Type Water Well Drill Rig Mini With 300m Drilling Depth
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Crawler Type 300m GL-50D Mini Water Well Drill Rig With Yuchai 50HP Diesel Engine
Keyword: Mini Crawler Water Well Drill Rig
Depth: 300m
Hole Diameter: 70-180mm
Crawler: Rubber Crawler
Transport Size: 3300*1200*1300mm
Rig Mass: 1.8T
Power (hp): Yuchai 50HP (electric Start Diesel Engine)
Highlight:

Water Well Drill Rig Mini

,

Crawler Water Well Drill Rig

,

300m mini well drilling rig

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL-50D
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 20sets/month
Product Description

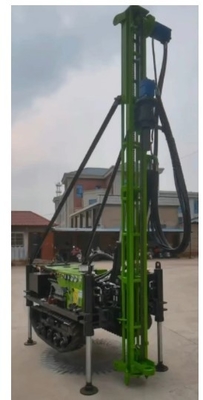

Crawler Type 300m GL-50D Mini Water Well Drill Rig With Yuchai 50HP Diesel Engine



Description:

GL-50D mini water well drill rig is compact design with dimension of 3300*1200*1300mm.

This model can drill max. 300m deep.

It is equipped with rubber crawler chassis, which can improve off-road performance.

It adopts China famous brand 50H Pdiesel engine, which features strong power and ability to meet the working require-ment of various operation

environment.

The four outrigger cylinders can be respectively controlled, which facilitates the adjustment of the vertical angle between the well hole and the ground when drilling, and at the same time ensures the stability of the drilling rig when it is working.



Tehnical Parameter:



Technical Specification
Model GL-50D
The weight (T) 1.8
Tower weight (removable) (kgs) 220
The hole diameter (mm) 70-180
Drilling depth (m) 300m at 90mm hole
Feeding distance (m) 2.3m/3.3m
Drilling angle horizontal or vertical
Power (hp) Yuchai 50HP (electric start diesel engine)
Drill pipe diameter (mm) 76/89
Drill pipe length (m) 2.0/3.0
Rig lifting force (T) 6
Chassis rubber crawler
Rotation torque (N.m) 1700
Dimension(walking state) (mm) 3300*1200*1300
Drilling method Down the hole hammer


Related products



Crawler Type Water Well Drill Rig Mini With 300m Drilling Depth 0


Customer Visting

Crawler Type Water Well Drill Rig Mini With 300m Drilling Depth 1

Company Profile

Crawler Type Water Well Drill Rig Mini With 300m Drilling Depth 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
