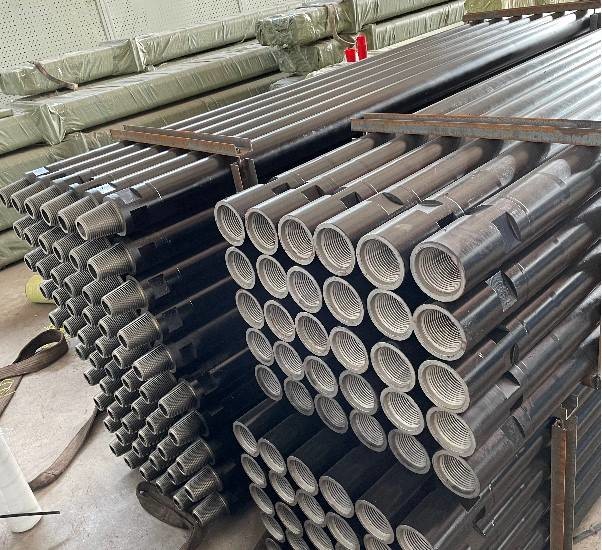

Water Well Drill Rod 114mm 4 1/2" With 2 7/8reg Thread For Borehole Drilling
114mm water well drill rod is made of alloy steel, with joints at both ends, and friction welding is used between the joint and the pipe body. It is used to deepen the wellbore, transmit torque, and form a channel for drilling fluid circulation.
According to customers request,we can supply 114mm water well drill rod with 0.5m, 1m, 1.5m, 2m, 3m, 4m, 5m and 6m etc.
| Size(inch) | Outside Diameter | Wall Thickness | thread | length |
| mm | mm | mm | mm | |
| 4 1/2 | 114 | 8.56 | 2 7/8reg | 500-6000 |
Water Well Drill Rod is mainly used for borehole water well drilling and geothermal drilling etc.
End-upsetting process can meet with API 5D standard.
The steel grade can reach to G105 or S135 after heat treatment of thickened pipe
The forging process and heat treatment of the pipe joint can be up to API SPEC7-1 standard.
Welding line performance can reach the API SPEC 7 standard.
Packing: The Water Well Drill Rod is normally packed by steel frame.
Delivery: Normally 7-10 days after down payment.
Shipping method: by sea
Hot extrusion machine
Adopt T-connector hydraulic for joints forging, to improve the metallo graphical fibrous tissue and impact toughness. So guarantee the comprehensive mechanical properties of the welding joints.
Heat treatment equipment
To use controllable atmosphere heat treatment equipment. Ensure each workpiece sorbite transfermation more fully, greatly enhance the mechanical properties of joints.
Thread machining equipment
To use CNC machine tool to thread finish machining and thread close tolerances.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects, etc.
We own the most advanced pipe production line in China.The technology of heat treatment product line has achieved to the world-class leading levels, we have 200T Friction Welding Machine is the largest model welder, the largest welding capacity can reach drill rod of 200mm OD.
The tube body upsetting technology has achieved the advanced level.Thickening of the anti-extrusion molding of pipe end technology can make the transition zone of internal and external upsetting reach the length to 200mm above.
And the one-piece drilling upsetting technology is more outstanding.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
