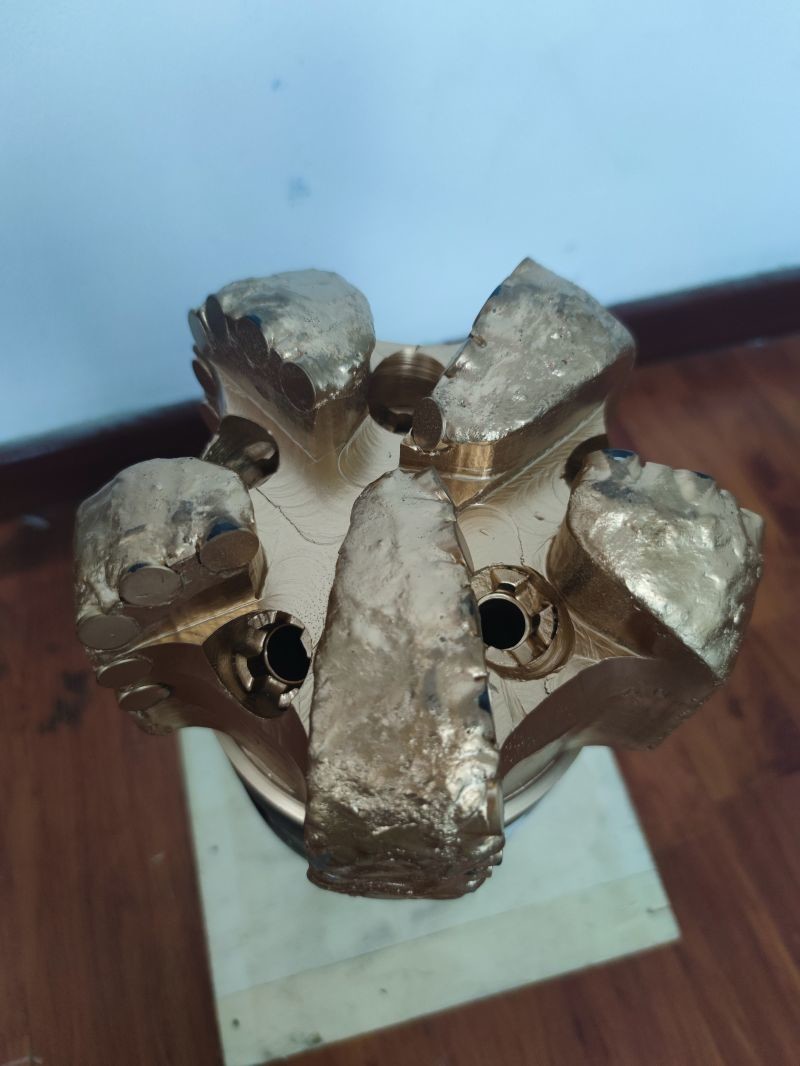

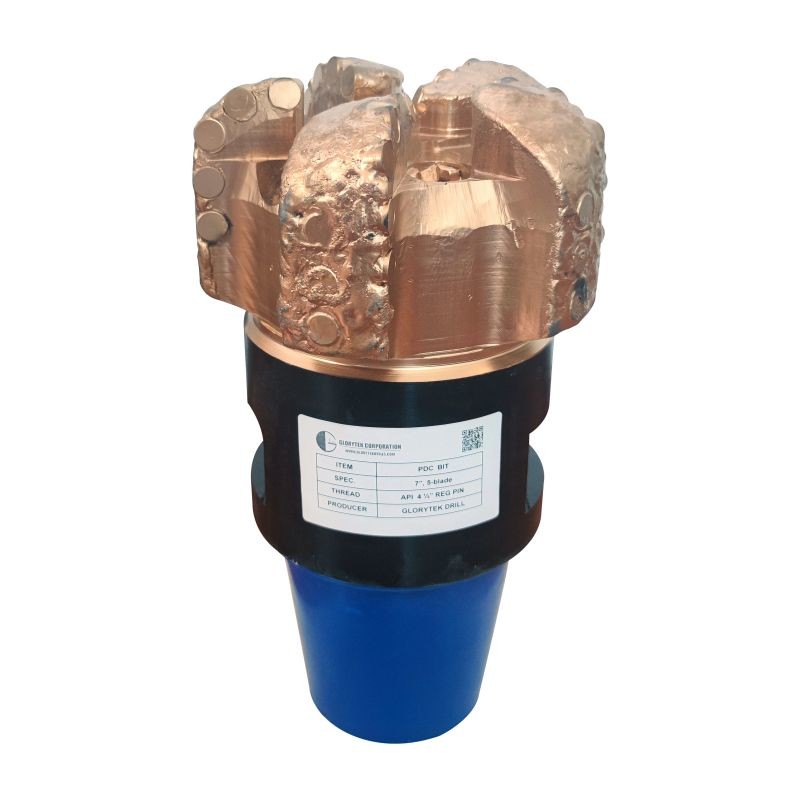

Steel Material PDC Drill Bit For Geological Exploration Coal Mining Drilling

1pc
MOQ
Negotiable
Price
Steel Material PDC Drill Bit For Geological Exploration Coal Mining Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: PDC Drill Bit 6 1-2 Inch 165 Mm 5 Blades Reinforced Body For Water Well Drilling
Keyword: PDC Drill Bit 6 1-2 Inch
Model: 6 1-2 Inch
Blade: 5
Thread: 2 3/8reg Pin
Body Material: Steel Body
Highlight:

Steel PDC Drill Bit

,

Exploration PDC Drill Bit

,

Coal mining drilling bits

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Model Number: 6 1-2 Inch
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 5days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10000pieces/month
Product Description

PDC Drill Bit 6 1-2 Inch 165 Mm 5 Blades Reinforced Body For Water Well Drilling​ ​



Description



Glorytek Industry (Beijing) Co., Ltd., is the professional manufacturer and exporter of various of PDC bits. Since its mass production and marketing, Glorytek's market share keeps increasing, and perfect after sales service and maintenance network to provide strong support.

Glorytek PDC bits have been winning confidence of overseas customers from Canada, Australia,Nigeria,Russia, Kazakhstan etc.

Our products are widely used in geological exploration,coal mining, water conservancy and hydropower,construction of road, railway,bridge and building domains etc.



Technical Parameter




Size 6 1-2"
Number of Nozzles  5
Number of Blades 5
Total Number of Cutters 29
Primary Cutter Size 13mm
Standard Gauge Length 2"(50mm)
API Pin Connection 3 1/2" API Reg
Hydraulic Flow Rate 400~600 GPM/25~38 L/S
Rotation Speed 60~350 rpm
Weight on Bit 3~15 Klbs/14~67 KN
Maximum Weight on Bit 15Klbs/67 KN



Applications



1. Compound drill bit for geological exploration

The composite drill bit mainly used for geological exploration and exploration is suitable for soft to medium hard rock layers. Now some manufacturers have newly developed new composite chips that can be applied to ten-grade hardness rock layers.



2. Coal field drilling adopts composite drill bit

It is mainly used for coal seam drilling and mining in coal mines. Generally speaking, the rock formation in the coal field is relatively soft, and the composite drill bits are widely used, such as bolt bits, tri-wing bits and so on.



3. Compound drill bit for petroleum exploration

It is mainly used for drilling in oil and gas fields. At present, the oilfield composite drill bit is the most expensive and the most demanding among all the composite drill bits.





Packing



Packing: wooden box.
Delivery: Normally 5-7 days after down payment.

Shipping method: by express, by air or by sea

Steel Material PDC Drill Bit For Geological Exploration Coal Mining Drilling 0



Company Profile



Steel Material PDC Drill Bit For Geological Exploration Coal Mining Drilling 1

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.



FAQ



Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ?
A: No requirement for testing and trial order.
