Name: Wireline Drilling Impregnated Diamond Core Bits For Geological Exploration Drilling
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: Aq Bq Nq Hq Pq Nq3 Pq3 Hq3 Nmlc etc.
Price: 335,002.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Aq Bq Nq Hq Pq Nq3 Pq3 Hq3 Nmlc Impregnated Diamond Core Bits For Mining/Mineral Wireline Exploration

Keyword: Aq Bq Nq Hq Pq Nq3 Pq3 Hq3 Nmlc Impregnated Diamond Core Bits

Size: Aq Bq Nq Hq Pq Nq3 Pq3 Hq3 Nmlc

Application: Mining/Mineral Wireline Exploration

Formations: Soft To Hard Rocks

Material Of Bit: Diamond

Highlight:

Exploration Impregnated Diamond Core Bits

Geological Impregnated Diamond Core Bits

Wireline diamond core drilling bit

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: SGS, TUV

Model Number: Aq Bq Nq Hq Pq Nq3 Pq3 Hq3 Nmlc etc.

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10-15 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

Wireline Drilling Impregnated Diamond Core Bits For Geological Exploration Drilling

Product Description

Aq Bq Nq Hq Pq Wireline Drilling Tools Impregnated Diamond Core Bits For Geological Exploration Drilling

Description

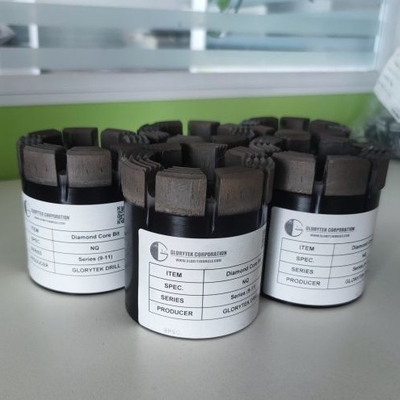

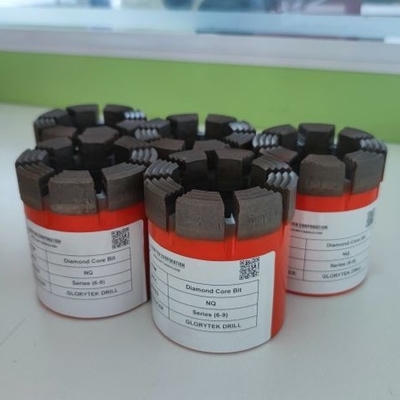

Impregnated Diamond Core Bit

Impregnated Diamond Core Bit is made from high-quality synthetic diamond and metal powder which could be used in various types of strata. The best effect is achieved through the flexible design according to the different strata and parameters of drilling equipment.

Available Size for our Impregnated Diamond Bits
"Q" series:AQ,BQ,NQ,HQ,PQ/AQTK,BQTK,BQ3,NQ2,NQ3,NQTT,HQ3,HQTT,PQ3,PQTT
T2 series: T2 46,T2 56,T2 66,T2 76,T2 86,T2 101
T6 series: T6 76,T6 86,T6 101,T6 116,T6 131,T6 146, T6S 101,T6S 116
T series: T36,T46,T56,T66,T76,T86
Z series: Z46,Z56,Z66,Z76,Z86,Z101,Z116,Z131,Z146
B series: B36,B46,B56,B66,B76,B86,B101,B116,B131,B146
WF series: HWF,PWF,SWF,UWF,ZWF
WT series: RWT,EWT,AWT,BWT,NWT,HWT
WM series: EWM,AWM,BWM,NWM,HWM
WG series: EWG,AWG,BWG,NWG,HWG
Others: NMLC,HMLC,LTK48,LTK60,BGM,NGM,ADBG,TBW,TNW,
ATW,BTW,NTW,NXD3,AX,NX,NXC,AXT,T6H,4 9/16,NWD4,412F,SK6L146,
TT46,TB56,TS116,CHD101

Technical Parameter

Size	Inner tube Outside dia.*thickness	Outer tube Outside dia.*thickness	Core Dia.	Bit Size
BQ	42*2.5	58*6	36.4	BQ
NQ	56*.	73*6.5	47.6	NQ
HQ	73*3	93*7	63.5	HQ
PQ	93*3	114*6	85	PQ

Packing of Impregnated Diamond Core Bits

Packing: standard exporting packing.
Delivery: Normally 7 days after your advanced payment.

Company Profile

Wireline Drilling Impregnated Diamond Core Bits For Geological Exploration Drilling 0

Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Impregnated Diamond Core Bits are one of our main and best selling wireline core driling tools. We can also supply other core drilling tools, such as Drill Rod and Coupling, Core Barrel, Wire-line Drilling Tool System, Casings & Subs, Accessorial drilling parts, Recovery tools and Other Drilling Materials, etc.
