5 Blades Steel Polycrystalline Diamond Drill Bits For Water Well Drilling

1pc
MOQ
Negotiable
Price
5 Blades Steel Polycrystalline Diamond Drill Bits For Water Well Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 6 Inch Steel Body PDC Drill Bit 152mm Pdc Drill Bit With 5 Blades For Water Well Drilling
Keyword: 6 Inch Steel Body PDC Drill Bit
Model: 6"
Blade: 5
Thread: 3 1/2 Reg Pin
Body Material: Steel Body
Highlight:

steel water well pdc drill bit

,

5 blades polycrystalline diamond drill bits

,

water well polycrystalline diamond drill bits

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE, SGS, TUV
Model Number: 6"
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 5days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10000pieces/month
Product Description

6 Inch Steel Body PDC Drill Bit 152mm Pdc Drill Bit With 5 Blades For Water Well Drilling



Description



PDC drill bits are one of the most important material advances for oil drilling tools in recent yearsIt has the advantages of hard and durable from diamond, and also has the advantages of high impact resistance and big blade from hard alloy. It is greatly improved the drilling efficiency and is the ideal drill bit for the drill operation of medium & hard as well as super hard rock.



Cutting structure is force balanced and bit blade is asymmetrically designed so that the load on bit is balanced that resulting better stability of the bit

Main cutter are high performance PDC cutters to insure service life of the bit while improving ROP.

Cutter exposure is optimized to insure the oil bit can achieve higher ROP is soft to medium formations



All materials and processes used in the manufacture of our PDC bits are rigorously monitored to ensure the prefect performance.



Technical Parameter



Size 6"
IADC Code S323
Blade 5
Body Type steel body
Cutter Size 13mm
Nozzle Qty 3
Connection 3-1/2" API REG
Torque 10.4-11.4KN.m
Weight on bit 8-50
MAX. WOB 90
Flow Rate 10-30
Rotation Speed 60-260



Applications



1. PDC drill bit is used for geology, coal field, metallurgy, building materials, mine core drilling;

2. PDC drill bit is used for core engineering exploration and drilling of roads, railways,building construction, bridges, etc.

3. Suit for drilling medium to medium-hard formations.

4. For large diameter engineering drilling, hydrology water well drilling, construction pile foundation, inverted vertical hole construction drilling;

5. Composite gage protection and low torque design improve rate of penetration .





Features



1. The PDC cutters are more resistant to grinding and impact, and its excellent thermal stability is more suitable for high-speed drilling in abrasive formations.

2. The unique anti-vibration teeth are designed to enable the bit to drill fast even in gravel-bearing formations.

3. The unique double-row tooth structure greatly enhances the attacking ability of the drill bit, and the effectively optimized hydraulic design and flow channel design make it easier to move cuttings and clean the bottom of the hole.

4. The unique arc surface PDC gauge tooth further enhances the gauge gauge capability of the drill.

5. Finite element analysis software participates in the design, and the reasonable cutter layout further improves the drilling efficiency.

6. The application of balancing software makes the angle of cutting teeth more scientific.

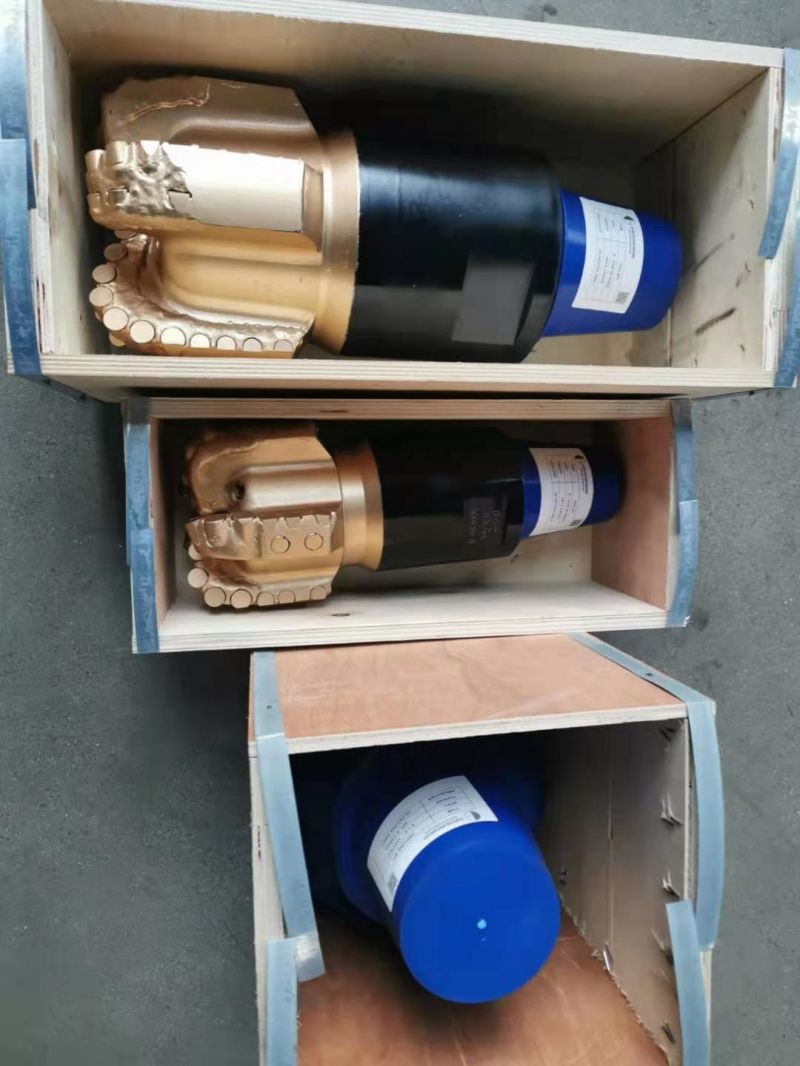

Packing



Packing: wooden box.
Delivery: Normally 5-7 days after down payment.

Shipping method: by express, by air or by sea

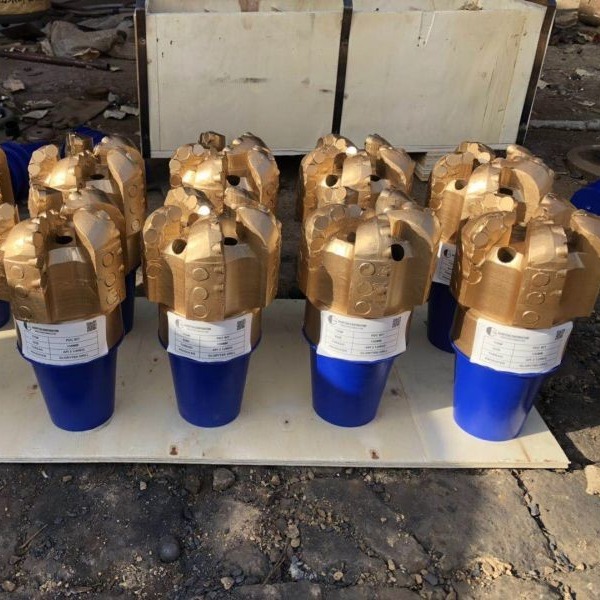

5 Blades Steel Polycrystalline Diamond Drill Bits For Water Well Drilling 0



Company Profile



5 Blades Steel Polycrystalline Diamond Drill Bits For Water Well Drilling 1

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.



FAQ



Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ?
A: No requirement for testing and trial order.
