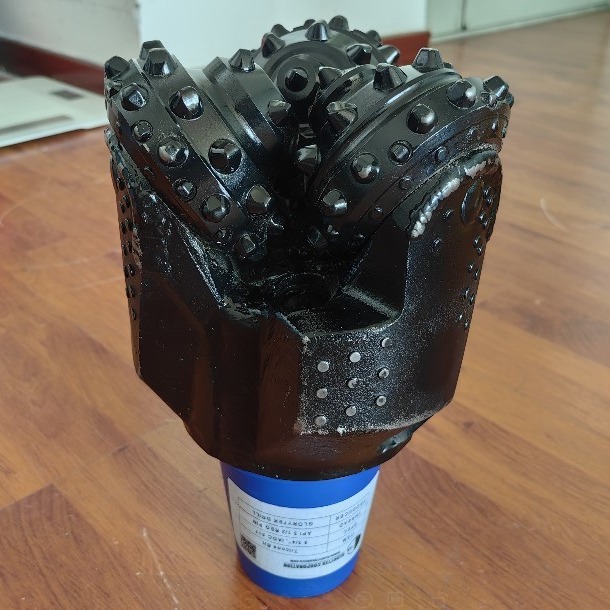

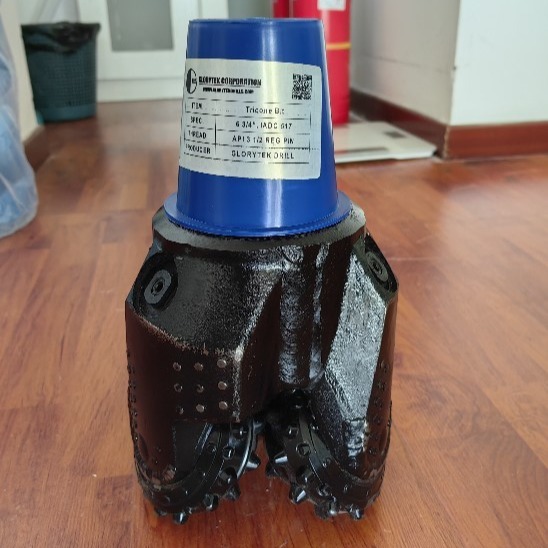

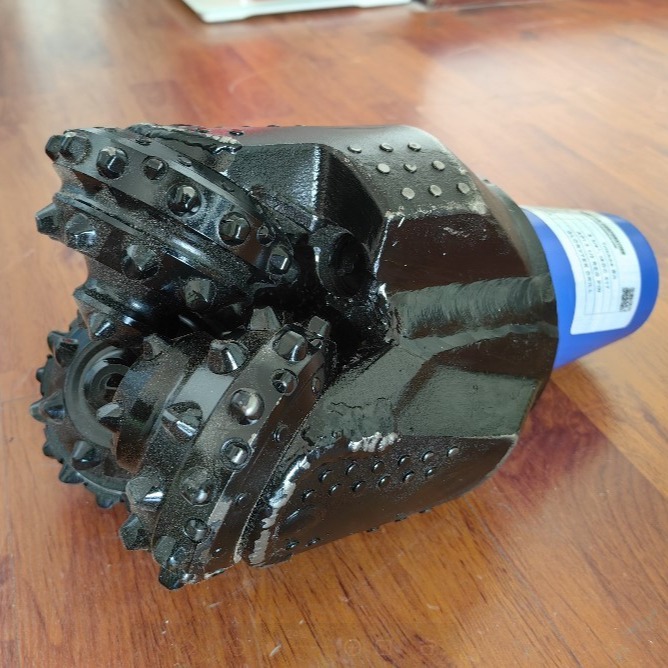

Name: Iadc517 6 3-4 Inch Tricone Rock Bit Water Well Drilling
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 6 3/4" etc.
Price: 10,350.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: IADC517 6 3-4inch Rock Drilling Tricone Roller Bit For Water Well Drilling

Keyword: 6 3-4inch Rock Drilling Tricone Roller Bit

IADC Code: 517

Applications: Water Well Drilling, Mining, HDD, Oilfield, Etc.

Color: Black, Blue, Or As Per Clients' Requirements

Size: 6 3-4inch

Highlight:

6 3-4 inch tricone rock bit

tricone rock bit water well drilling

6 3-4 inch tricone rock roller bits

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: SGS, TUV

Model Number: 6 3/4" etc.

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10-15 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

Iadc517 6 3-4 Inch Tricone Rock Bit Water Well Drilling

Product Description

Rock Drilling Tricone Roller Bit For Water Well Drilling

Description

Tricone bit is mainly used in oil well,water well, coalbed methane and geothermal well drilling engineering. Glorytek tricone bits are designed and manufactured according to the standard of oil drilling bit, which are long life, high drilling efficiency and low operation cost.
At present, sizes ranging from 3 7/8 " to 26" have been developed, which can be applied to different formations from soft to very hard. Those designs are compatible with different drilling technologies such as conventional drilling and directional drilling.

Technical Parameter

Bit size		API thread	recommended torque
in	mm	in	KN.M
6	152.4	3 1/2	9. 5-12.2
6 1/8	155.6	3 1/2	9. 5-12.2
6 1/4	158.8	3 1/2	9. 5-12.2
6 1/2	165.1	3 1/2	9. 5-12.2
6 5/8	168.3	3 1/2	9. 5-12.2
6 3/4	171.5	3 1/2	9. 5-12.2
7 1/2	190.5	4 1/2	16. 3〜21. 7
7 5/8	193.7	4 1/2	16. 3〜21. 7
7 7/8	200	4 1/2	16. 3〜21. 7
8 3/8	212.7	4 1/2	16. 3〜21. 7
8 1/2	215.9	4 1/2	16. 3〜21. 7
8 5/8	219.1	4 1/2	16. 3〜21. 7
8 3/4	222.3	4 1/2	16. 3〜21. 7
9 1/2	241.3	6 5/8	38〜43. 4
9 5/8	244.5	6 5/8	38〜43. 4
9 7/8	250.8	6 5/8	38〜43. 4
10 1/2	266.7	6 5/8	38〜43. 4
10 5/8	269.9	6 5/8	38〜43. 4
11	279.4	6 5/8	38〜43. 4
115/8	295.3	6 5/8	38〜43. 4
12	304.8	6 5/8	38〜43. 4
12 1/4	311.2	6 5/8	38〜43. 4
12 5/16	312.7	6 5/8	38〜43. 4
12 3/8	314.3	6 5/8	38〜43. 4
12 7/16	315.9	6 5/8	38〜43. 4
12 5/8	320.7	6 5/8	38〜43. 4
13 1/8	333.4	6 5/8	38〜43. 4
13 1/2	342.9	6 5/8	38〜43. 4
13 5/8	346.1	6 5/8	38〜43. 4
13 3/4	349.3	6 5/8	38〜43. 4

Packing of Tricone Rock Bit

Packing: standard exporting packing.
Delivery: Normally 10 days after your advanced payment.

Company Profile

Iadc517 6 3-4 Inch Tricone Rock Bit Water Well Drilling 0

Glorytek Industry (Beijing)Co.,Ltd., is specialized in manufacturing high quality rock bit since 20 years ago, especially for tricone bit, PDC bit, hole opener, single cone bit and drag bit. With advanced CNC machines and R&D team and on-time delivery. we have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices.

We ship to more than 60 different countries and serve industries such as Oil & Gas, water well , Construction,Mining, Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with everything from choosing the right bit to shipping around the globe.

Jane Cheng
Sales Representative

Glorytek Industry ( Beijing ) Co., Ltd.
Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.
Tel: +86-10-52864265/52864786
Fax: +86-10-52037270
Mobile:+86-13426420230
