Name: 171.4mm Tricone Rock Roller Bits Borehole Drilling For Hard Formations
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 6 3/4" etc.
Price: 10,350.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: IADC537 171.4mm Borehole Drilling Tricone Roller Bit For Hard Formations

Keyword: Borehole Drilling Tricone Roller Bit

IADC Code: 517 537 Etc.

Applications: Borehole Drilling, Mining, HDD, Oilfield, Etc.

Color: Black, Blue, Or Up To Clients' Requirements

Size: 171.4mm

Highlight:

171.4mm tricone rock roller bits

borehole drilling tricone rock roller bits

hard formations tricone roller bit

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: SGS, TUV

Model Number: 6 3/4" etc.

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10-15 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

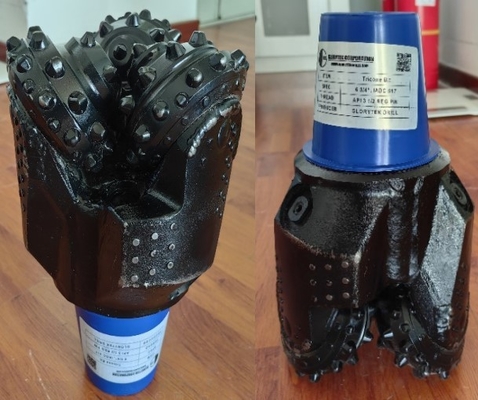

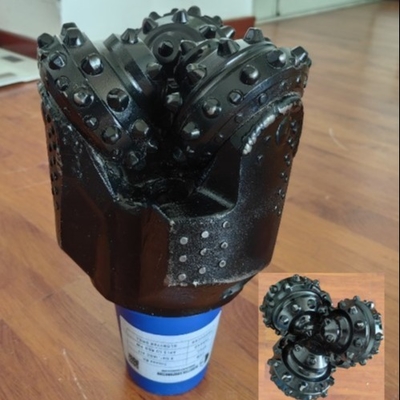

171.4mm Tricone Rock Roller Bits Borehole Drilling For Hard Formations

Product Description

Borehole Drilling Tricone Roller Bit For Hard Formations

Description

Tricone bit is mainly used in oil well,water well, coalbed methane and geothermal well drilling engineering. Glorytek tricone bits are designed and manufactured according to the standard of oil drilling bit, which are long life, high drilling efficiency and low operation cost.

Structure
The tricone bit is composed of three cones and three tooth palms assembled together and processed with some necessary functional structures.
According to the structure, the tricone bit can be divided into: bearing structure, cutting structure, cone tip and cone back reinforcement structure, flow channel system, injection system, oil storage pressure balance system and thread connection.

Technical Parameter

IADC code	Application	Recommended parameters
IADC code	Application	Drilling pressure kN/mm (bit diameters)	Rotary speed (r/min)
117	Very soft formation with low compressive strength and high drillability, such as soft shale, clay, salt rock, etc.	0.35-0.90	150-80
127	Soft formation with low compressive strength and high drillability, such as shale, clay, salt rock, soft limestone, etc.	0.35-1.00	150-70
417	Wry soft formation with low compressive strength and high drillability, such as shale, clay, sandstone, conglomerate, etc.	0.35-0.90	140-70
437	Wry soft formation with low compressive strength and high drillability, such as shale, clay, sandstone, conglomerate, etc.	0.35-0.95	140-60
447	Soft formation with low compressive strength and high drillability, such as shale, clay, salt rock, sandstone, soft limestone, gypsum, etc.	0.35-1.00	140-60
517	Soft formation with low compressive strength and high drillability, such as shale, clay, sandstone, soft limestone, etc.	0.35-1.05	120-50
527	Soft formation with low compressive strength such as shale, clay, sandstone, soft limestone, salt rock, anhydrite, etc.	0.35-1.05	120-50
537	Low compressive strength, medium soft, hard	0.35-1.05	110-40
547	Low compressive strength, medium soft, hard abrasive inter layer, such as hard shale, anhydrite, soft limestone, sandstone, etc.	0.35-1.05	110-40
617	High compressive strength, medium hard, with thick hard inter layer, such as hard shale, limestone, dolomite, sandstone, etc	0.35-1.05	80-40
627		0.35-1.05	80-40
637	High compressive strength, high abrasiveness and medium hard strata, such as limestone, dolomite, sandstone, chert, etc.	0.70-1.20	70-40
647		0.70-1.20	70-40
Note: the recommended range of WOB and RPM in the table cannot be applied at the top range at the same time.

Packing of Tricone Rock Bit

Packing: standard exporting packing.
Delivery: Normally 10 days after your advanced payment.

Company Profile

171.4mm Tricone Rock Roller Bits Borehole Drilling For Hard Formations 0

Glorytek Industry (Beijing)Co.,Ltd., is specialized in manufacturing high quality rock bit since 20 years ago, especially for tricone bit, PDC bit, hole opener, single cone bit and drag bit. With advanced CNC machines and R&D team and on-time delivery. we have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices.

We ship to more than 60 different countries and serve industries such as Oil & Gas, water well , Construction,Mining, Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with everything from choosing the right bit to shipping around the globe.
