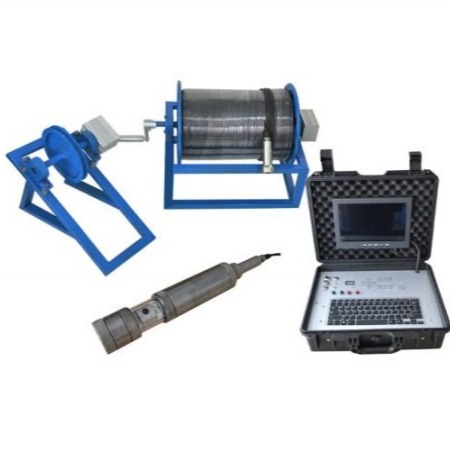

Deep Well Camera/Underwater Camera/Borehole Camera Drilling Rig Tools with Dual Camera and Electric Winch
Description:
The Deep Well Camera, Underwater Camera, Logging Camera, Borehole Camera, Water Well Camera and Down Hole Camera adopts reflective axicon lens to take 360° Hole wall images, image acquisition and processing by means of computer to form a continuous hole wall developed image. The hole wall image are developed following the order NESWN. The longitude connection of images are jointed as per the order of depth, thus the overall hole-wall image is fully understand at a glance.
Function:
Deep Well Camera, Underwater Camera, Logging Camera, Borehole Camera, Water Well Camera and Down Hole Camera
1 To inspection the water leakaging of the well,
2 To imaging the blockage of the well
3 To help the repair of the well
4 Provide broadcast quality video of the underwater world
5 This camea can be viewed in real time or recorded for later
Tehnical Parameter:
| Downhole television imager |
| Main control box |
12V/220V |

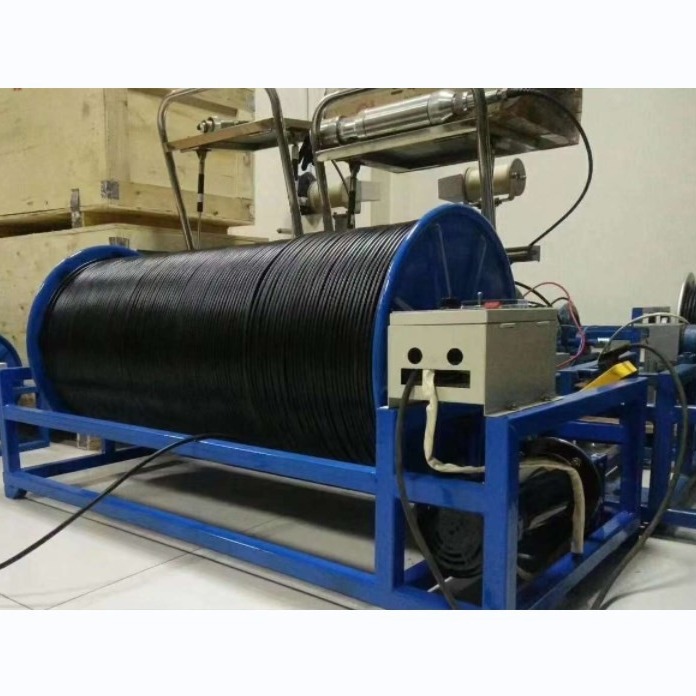

| Winch |
Electric manual winch (optional) |
| Display |
12 inch high brightness industrial control display |
| Video recording system |
32g (USB flash disk) |
| Dual camera probe |
The 73mm diameter dual camera underground TV adopts the Japanese Sony 1200 line low illumination camera, with unrestricted horizontal rotation of 360 degrees, free control of forward and reverse rotation, adjustable light brightness, and a uniform light cover is added to make the light more uniform and prevent the occurrence of reflection. The U disk saves videos, pictures, high-precision depth meter and on-site playback. Toughened glass is used at the front and side ends to effectively prevent abrasion and greatly improve the definition of the camera. |
| Downhole pulley |
Precision count |
| Logging cable |
Tensile length 0-2000m (optional) |
| hold-all |
Connecting cables and accessories |
Features:
1 Super high resolution color picture
2 Low light operation
3 Led underwater light
4 Stainless steel housing
5 watertightness cable
6 Ability to attach up to deep place and stand large pressure
Packing and Transport
Packing: Non-fumigation wooden box
Delivery: Normally 7-10 days after your down payment. Shipping by sea, air or express are all available.
