Video Inspection Camera Underground Inspection Camera Drilling Rig Tools for Borehole Drilling Projects
Description:

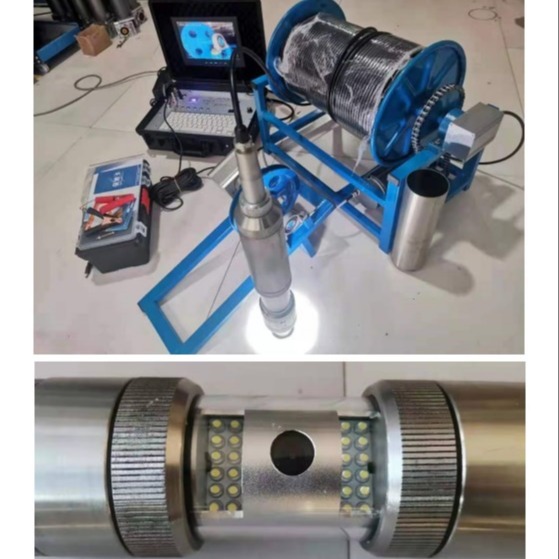

Dual camera probe: The 73mm diameter dual camera underground TV adopts the Japanese Sony 1200 line low illumination camera, with unrestricted horizontal rotation of 360 degrees, free control of forward and reverse rotation, adjustable light brightness, and a uniform light cover is added to make the light more uniform and prevent the occurrence of reflection. The U disk saves videos, pictures, high-precision depth meter and on-site playback. Toughened glass is used at the front and side ends to effectively prevent abrasion and greatly improve the definition of the camera.
Tehnical Parameter:
| Downhole television imager |
| Main control box |
12V/220V |
| Winch |
Electric manual winch (optional) |
| display |
12 inch high brightness industrial control display |
| Video recording system |
32g (USB flash disk) |
| Dual camera probe |
The 73mm diameter dual camera underground TV adopts the Japanese Sony 1200 line low illumination camera, with unrestricted horizontal rotation of 360 degrees, free control of forward and reverse rotation, adjustable light brightness, and a uniform light cover is added to make the light more uniform and prevent the occurrence of reflection. The U disk saves videos, pictures, high-precision depth meter and on-site playback. Toughened glass is used at the front and side ends to effectively prevent abrasion and greatly improve the definition of the camera. |
| Downhole pulley |
Precision count |
| Logging cable |
Tensile length 0-2000m (optional) |
| hold-all |
Connecting cables and accessories |

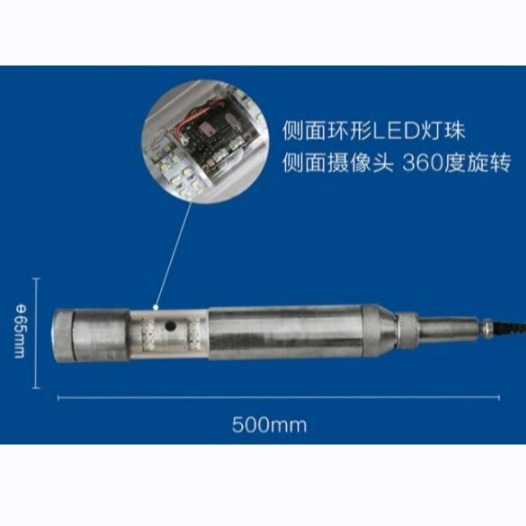

| Dual camera |
* Camera material: 304 stainless steel |
| *Camera size: Φ 73mm |
| *Camera lens material: front high transparent quartz glass |
| Side end quartz glass effectively prevents abrasion |
| *Camera pixel: Sony CCD camera |
| *Lens angle: 120 degrees |
| *Camera lamp: front highlight LED lamp bead, side mounted LED strong light source lamp bead (adjustable brightness) |
| *Probe withstand voltage: withstand voltage 20MPa, and the maximum withstand voltage depth can reach 2000m |
| *The side camera can rotate 360 degrees forward and backward indefinitely |
| Logging cable |
*Cable material; Photothermal resistant material |
| *Bearing capacity: 280kg |
| *Outer diameter: 8mm |
| *Temperature resistance: 70 ℃ |
Features:
1 Super high resolution color picture
2 Low light operation
3 Led underwater light
4 Stainless steel housing
5 watertightness cable
6 Ability to attach up to deep place and stand large pressure
Packing and Transport
Packing: Non-fumigation wooden box
Delivery: Normally 7-10 days after your down payment. Shipping by sea, air or express are all available.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we
have drilling equipments like rigs, mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100%
advance payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 3-5 days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
