Name: 12 1/4" 311mm Tci Tricone Bit Well Drilling Tools For Drilling Hard Rocks
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 12 1/4" 311mm
Price: 10,350.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: 12 1/4" 311mm Well Drilling Tools Tricone Rock Bit For Drilling Hard Rocks

Keyword: 12 1/4" 311mm Tricone Rock Bit

IADC: IADC517/537/637 Etc.

Projects: Well Drilling

Colors: Black, Blue, Yellow, Etc.

Diameter: 12 1/4" 311mm

Highlight:

12 1/4" tci tricone bit

311 mm tci tricone bit

iadc code 517 tricone bits

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: SGS, TUV

Model Number: 12 1/4" 311mm

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10-15 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

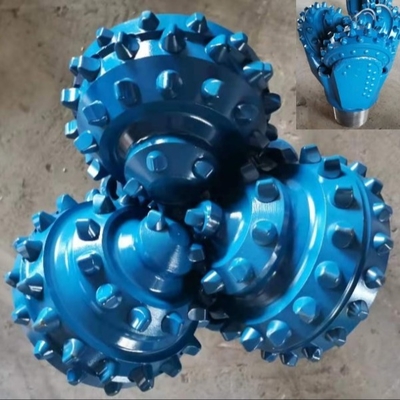

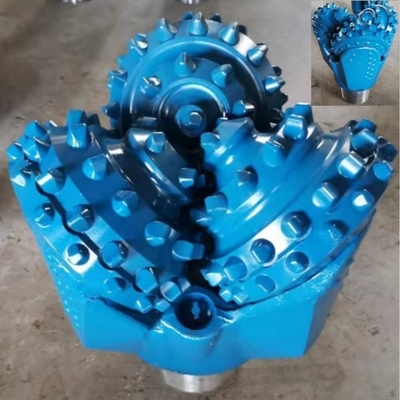

12 1/4" 311mm Tci Tricone Bit Well Drilling Tools For Drilling Hard Rocks

Product Description

12 1/4" 311mm Well Drilling Tools Tricone Rock Bit for Drilling Hard Rocks

Description

The roller cone bit is the most widely used type of drilling bit. When the roller cone bit is working, the cutting teeth alternately contact the bottom of the well, the rock-breaking torque is small, the contact area between the cutting teeth and the bottom of the well is small, the specific pressure is high, and it is easy to penetrate into the formation; the total length of the working blade is large, so the wear is relatively reduced. Roller cone bits can adapt to a variety of formations from soft to hard.

Our main products include tricone bits (both Steel Milled Tooth and Tungsten Carbide Inserts Bit) from 3" and 20" inch and PDC drill bits from 3 1/2" to 17 1/2" inch. We are competent to design and produce the drilling tools like single cutters,hole openers and other customized bits depending on the utility demand. Both standardized tricone bits produced strictly according to API and rock bits-customizing used in various construction works are provided. Good quality is the main aim we abide by, ever and forever.

Technical Parameter

Basical Specification
Size	12 1/4 inchs
IADC Code:	517/537/637G
Thread Connection	6 5/8 API REG PIN
Series	Elastomer Sealed Bearing
Operating Parameters
WOB	156-373KN
RPM	80-40
Formations	Medium/Hard formation

Packing of Tricone Rock Bit

Packing: standard exporting packing.
Delivery: Normally 7-10 days after your advanced payment.
