Home /Products/Tricone Rock Bit/Iadc Code 537 Tricone Rock Bit For Drilling Soft And Hard Rocks

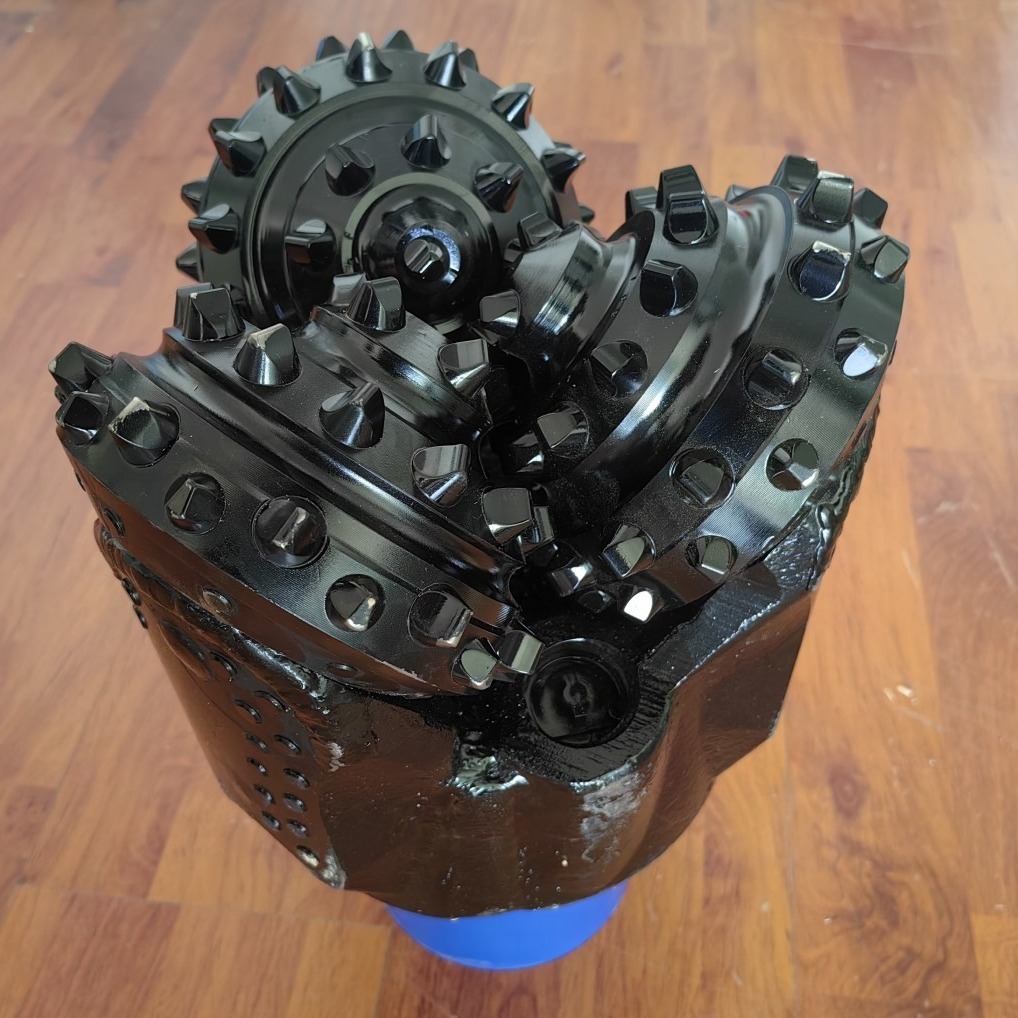

Iadc Code 537 Tricone Rock Bit For Drilling Soft And Hard Rocks

1pc
MOQ
Negotiable
Price
Iadc Code 537 Tricone Rock Bit For Drilling Soft And Hard Rocks
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 9 7/8" 250mm Oil Gas Water Well Drilling Tricone Rock Bit For Drilling Soft And Hard Rocks
Keyword: 9 7/8" 250mm Tricone Rock Bit
IADC: IADC517/527/537/637 Etc.
Projects: Oil Gas Water Well Drilling
Colors: Black, Blue, Yellow, Etc.
Diameter: 9 7/8" 250mm
Highlight:

iadc code 537 tricone rock bit

,

drilling soft tricone rock bit

,

iadc code 537 tricone bits
Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: SGS, TUV
Model Number: 9 7/8" 250mm
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100sets/month
Product Description

9 7/8" 250mm Oil Gas Water Well Drilling Tricone Rock Bit For Drilling Soft And Hard Rocks



Description

Soft formation TCI tricone bits:
The soft formation TCI tricone bits are used to drill low compressive strength, very soft formations. This bit maximized to use of both conical and chisel tungsten carbide inserts of large diameters and high projection. This cutting structure design, combined ith maximum cone offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit bailing in stickyfor mations.
Medium formation TCI tricone bits:
The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.
Hard formation TCI tricone bits:
The hard formation TCI tricone bits can be used to drill hard and abrasive formations. Wear resistance tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of hemispherical shaped inserts are used in all rows to provide cutter durability and long life.

Technical Parameter

Basical Specification
Size 9 7/8(250.8mm)
IADC Code: 537/527/517/637
Thread Connection 6 5/8 REG PIN
Series

Elastomer Sealed Bearing
Operating Parameters
WOB 112-250KN
RPM 120-500
Formations Soft to medium formation with low compressive strength, such as medium,soft shale,medium soft limestone, medium soft sandstone, medium formation withharder and abrasive interbeds, etc.


Packing of Tricone Rock Bit


Packing: standard exporting packing.
Delivery: Normally 7-10 days after your advanced payment.

Company Profile



Iadc Code 537 Tricone Rock Bit For Drilling Soft And Hard Rocks 0

Glorytek Industry (Beijing)Co.,Ltd., provides high-quality and complete drilling equipment including drilling rigs, drilling tools, mud pumps, DTH drilling tools, rock drilling tools, etc. They are widely used in water wells, farmland irrigation, geological exploration, small pile holes, geothermal, rope coring, Mining etc. Our products are the products of choice for drilling engineers in many countries due to their precise design and efficient drilling in use.



Why we achive today′s achievements is because we are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients. Glorytek Industry (Beijing)Co.,Ltd. will continue committing to provide low cost Rock Drills, Drilling tools, well drilling rigs, high efficiency drilling tools, energy saving and environmental product for domestic and international clients.
