Iadc527 Tricone Bit Drilling Diameter 9 7/8 Inch

1pc
MOQ
Negotiable
Price
Iadc527 Tricone Bit Drilling Diameter 9 7/8 Inch
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 9 7/8" 250mm Hard Rock Drill TCI Tricone Rock Bit For Rock Drilling And Quarrying
Keyword: Hard Rock Drill TCI Tricone Rock Bit
IADC: IADC517/527/537/637
Projects: Rock Drilling And Quarrying
Colors: Black, Blue, Yellow, Etc.
Diameter: 9 7/8" 250mm
Highlight:

iadc527 tricone bit drilling

,

9 7/8 inch tricone bit drilling

,

drilling tricone rock roller bits

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: SGS, TUV
Model Number: 250mm
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100sets/month
Product Description

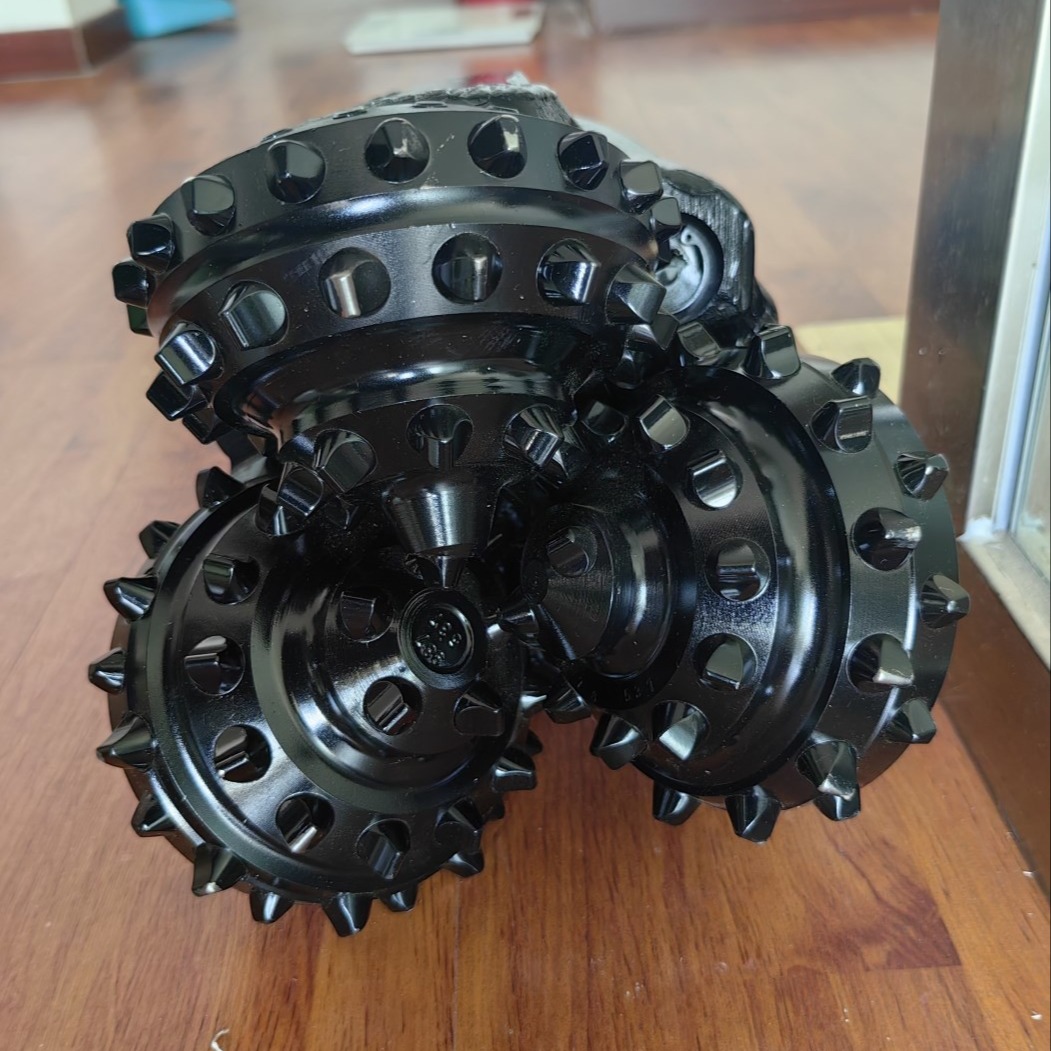

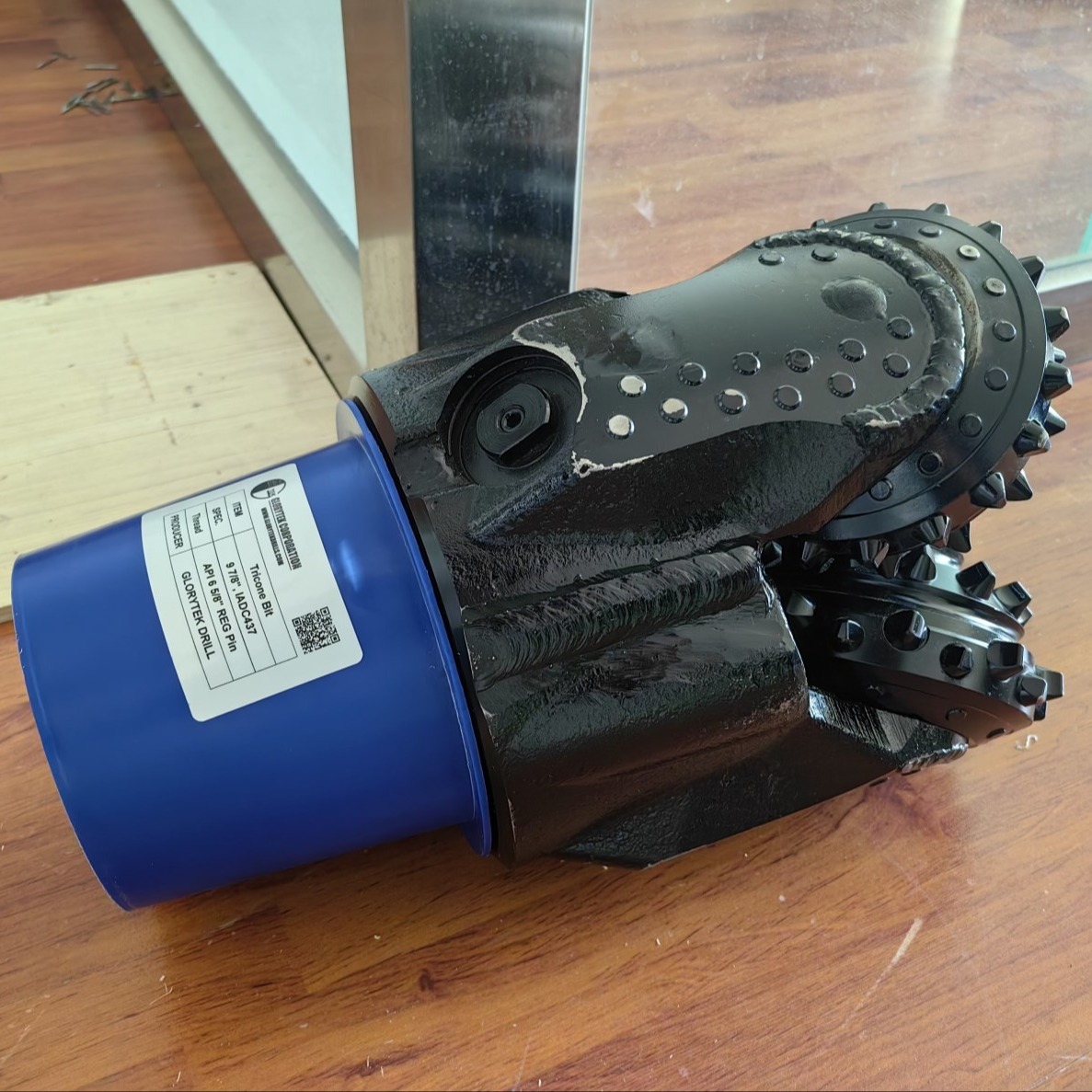

9 7/8" 250mm Hard Rock Drill TCI Tricone Rock Bit For Rock Drilling And Quarrying



Description


1. Sizes: 3 7/8’’ to 36’’is available.

2. Application: Suitable for oil, natural gas, geothermal industrial and water well drilling, HDD projects, etc.

3. Cutting structure:Reinforcing the comprehensive mechanical properties of cutting tooth by using high quality tungsten carbide inserts of new formula and new techniques of insert bit. Unique widened crest insert improved the bit aggressivity and penetration rate.

4. Gauge protection structure:The multiple heel position with gauge trimmer on the heel, tungsten carbide and hardfacing on the shirttail, strengthened spear point will enhance the gauge protection.

5. Bearing structure: High precision journal bearing with two thrust faces. Ball locked cone. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved, and suitable for high rotary speed.


Technical Parameter

Basical Specification
Size 9 7/8(250.8mm)
IADC Code: 537/527/517/637
Thread Connection 6 5/8 REG PIN
Series

Elastomer Sealed Bearing

Operating Parameters
WOB 112-250KN
RPM 120-500
Formations Soft to medium formation with low compressive strength, such as medium,soft shale,medium soft limestone, medium soft sandstone, medium formation withharder and abrasive interbeds, etc.



Regular Sizes Of Tricone Bits
3 7/8" 4 1/2" 4 5/8" 4 3/4" 5 1/4"
5 1/2" 5 5/8" 5 7/8" 6" 6 1/2"
7 1/2" 7 5/8" 7 7/8" 8 1/2" 8 3/4"
9 1/2" 9 5/8" 9 7/8" 10 5/8" 11 5/8"
12 1/4" 13 5/8" 14 3/4" 15 1/2" 16"
17 1/2" 20" 22" 24" 26"


Packing of Tricone Rock Bit


Packing: standard exporting packing.
Delivery: Normally 7-10 days after your advanced payment.

Company Profile



Iadc527 Tricone Bit Drilling Diameter 9 7/8 Inch 0

Glorytek Industry (Beijing)Co.,Ltd., provides high-quality and complete drilling equipment including drilling rigs, drilling tools, mud pumps, DTH drilling tools, rock drilling tools, etc. They are widely used in water wells, farmland irrigation, geological exploration, small pile holes, geothermal, rope coring, Mining etc. Our products are the products of choice for drilling engineers in many countries due to their precise design and efficient drilling in use.



Our company has advanced production equipment, strictly abides by the standards of API (American Petroleum Institute) and ISO9001:2015 quality management system. Through many years of studying and refining of the imported technology, our company integrates a number of scientific research achievements with independent intellectual property rights, and great breakthroughs have been made in bottom hole flow field (CFD), profile optimization, tooth arrangement design, low torque design, materials and manufacturing processes. The product has better performance and wider range of adaptation.
