6'' IADC 437 three cone tci tricone roller drill bit for water well drilling
1.Description:
-The 437 TCI bits are used to Very soft strata have low compressive strength and high drillability, such as mudstone, gypsum, salt, soft shale, soft limestone,etc.
-The cutting structure of Glorytek tricone bits has been in continuous use in the oil & gas industry, and is still being improved.
We have a wide selection of tricone bits - there’s a bit for every application.Our product line can be configured to use tungsten car bide insert (TCI) bits and steel tooth bits for the toughest drilling applications.
-It can avoid the formation of a ball in the bit, eliminate the fluid area at the bottom of the well, accelerate
the upward flow of drilling cuttings and improve ROP.High saturation bearings can reduce sealing pressure and improve sealing reliability. Adding a row of teeth between the rear taper and the outflow to trim the borehole and protect the cone.
2.Applications:
The roller cone bit is the most widely used tool in petroleum drilling and geological drilling. Tricone bit has the function of impacting, crushing and shearing rock in formation, so it can adapt to soft, medium and hard formation. The cone bit can be divided into milling (steel teeth) cone bit and TCI cone bit according to the type of teeth.
3.Specifications:
| Bit size |
API thread |
recommended torque |
| in |
mm |
in |
KN.M |
| 6 |
152.4 |
3 1/2 |
9. 5-12.2 |
| 6 1/8 |
155.6 |
3 1/2 |
9. 5-12.2 |
| 6 1/4 |
158.8 |
3 1/2 |
9. 5-12.2 |
| 6 1/2 |
165.1 |
3 1/2 |
9. 5-12.2 |
| 6 5/8 |
168.3 |
3 1/2 |
9. 5-12.2 |
| 6 3/4 |
171.5 |
3 1/2 |
9. 5-12.2 |
| 7 1/2 |
190.5 |
4 1/2 |
16. 3〜21. 7 |
| 7 5/8 |
193.7 |
4 1/2 |
16. 3〜21. 7 |
| 7 7/8 |
200 |
4 1/2 |
16. 3〜21. 7 |
| 8 3/8 |
212.7 |
4 1/2 |
16. 3〜21. 7 |
| 8 1/2 |
215.9 |
4 1/2 |
16. 3〜21. 7 |
| 8 5/8 |
219.1 |
4 1/2 |
16. 3〜21. 7 |
| 8 3/4 |
222.3 |
4 1/2 |
16. 3〜21. 7 |
| 9 1/2 |
241.3 |
6 5/8 |
38〜43. 4 |
| 9 5/8 |
244.5 |
6 5/8 |
38〜43. 4 |
| 9 7/8 |
250.8 |
6 5/8 |
38〜43. 4 |
| 10 1/2 |
266.7 |
6 5/8 |
38〜43. 4 |
| 10 5/8 |
269.9 |
6 5/8 |
38〜43. 4 |
| 11 |
279.4 |
6 5/8 |
38〜43. 4 |
| 115/8 |
295.3 |
6 5/8 |
38〜43. 4 |
| 12 |
304.8 |
6 5/8 |
38〜43. 4 |
| 12 1/4 |
311.2 |
6 5/8 |
38〜43. 4 |
| 12 5/16 |
312.7 |
6 5/8 |
38〜43. 4 |
| 12 3/8 |
314.3 |
6 5/8 |
38〜43. 4 |
| 12 7/16 |
315.9 |
6 5/8 |
38〜43. 4 |
| 12 5/8 |
320.7 |
6 5/8 |
38〜43. 4 |
| 13 1/8 |
333.4 |
6 5/8 |
38〜43. 4 |
| 13 1/2 |
342.9 |
6 5/8 |
38〜43. 4 |
| 13 5/8 |
346.1 |
6 5/8 |
38〜43. 4 |
| 13 3/4 |
349.3 |
6 5/8 |
38〜43. 4 |
|
4.Tips:
-According to the formation lithology data, hydraulic and drilling parameters, select the appropriate type of drill bit.
-Can seletc the corresponding nozzle according to the hydraulic parameters. The size difference of the nozzle hole should not be too large to avoid erosion of the flow channel.
-If there is abnormal damage to the drill bit, please communicate with our factory, and keep the packaging box, certificate of conformity and original trial data of the drill bit, and the drill bit after use ( do not remove the nozzle).

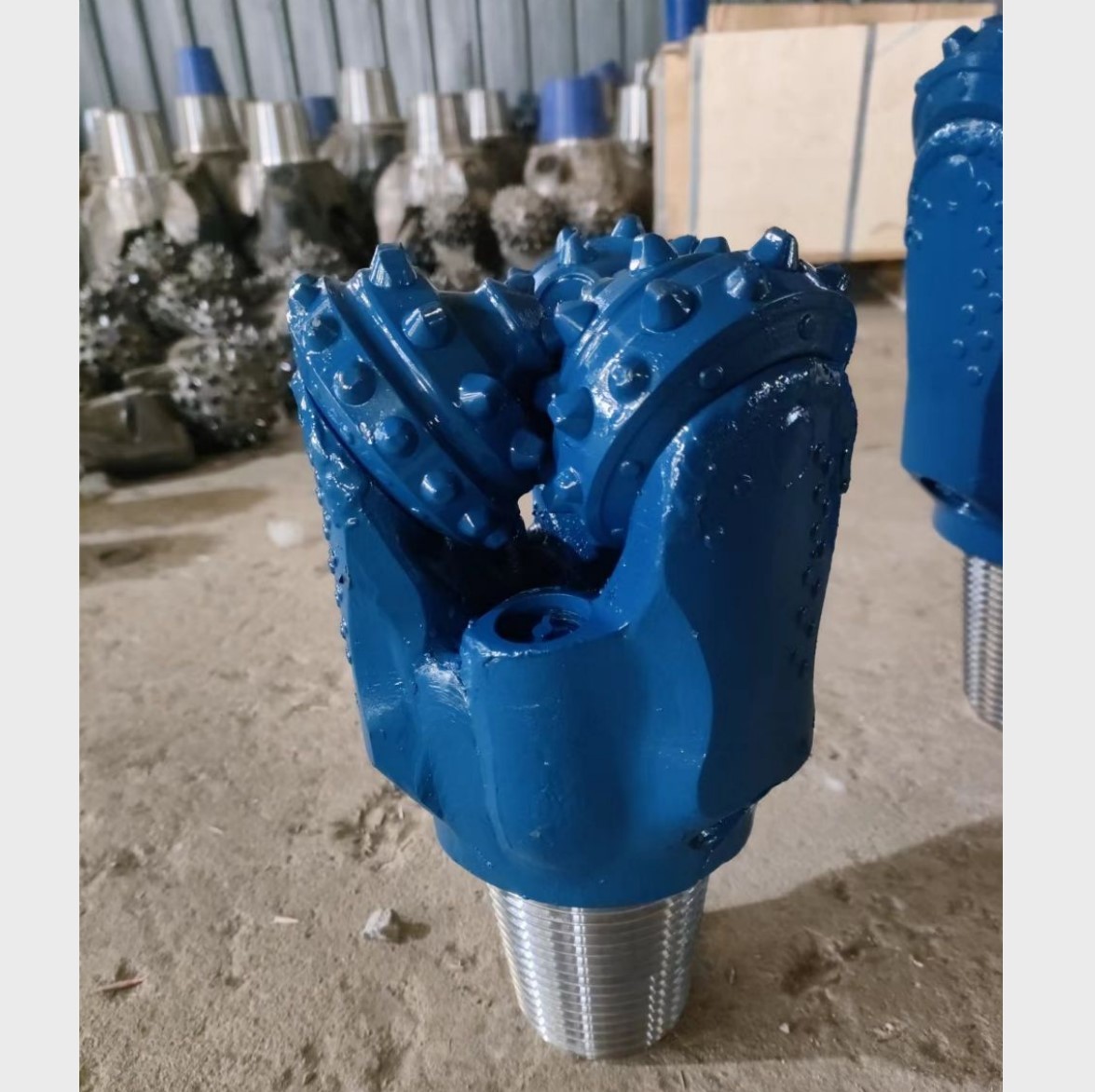

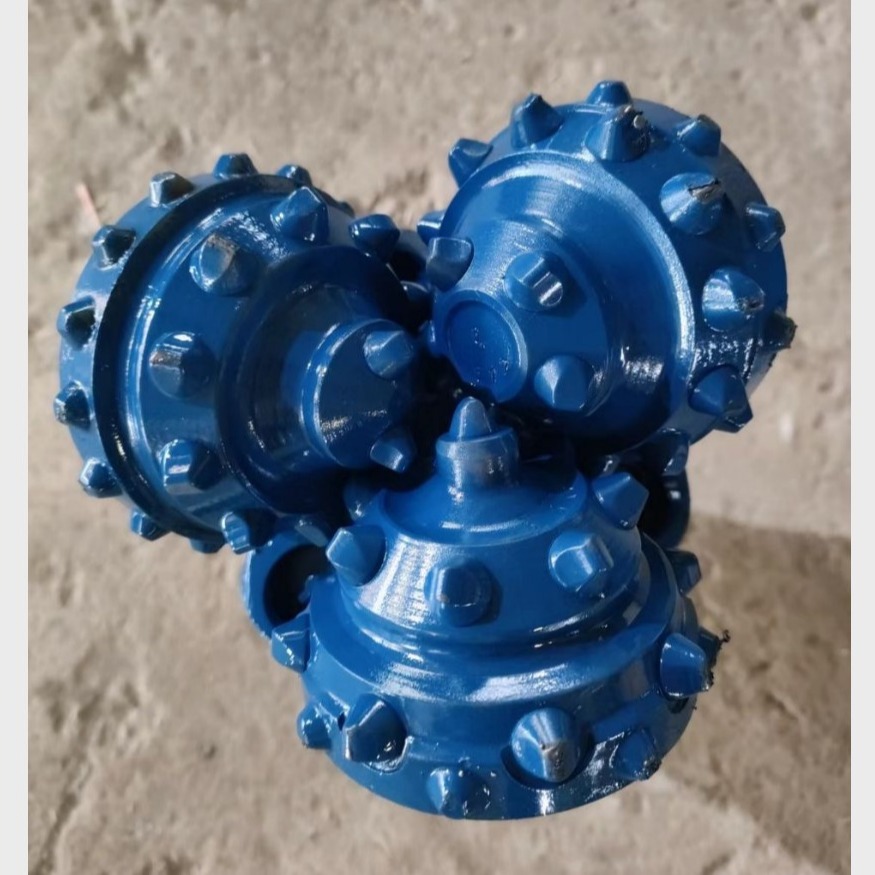

The Photo of products
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
