IADC537 14 3/4" TCI tooth tricone drill bit for water well drilling
1.Description:
-The 537 TCI bits it has long life advantages,be made with TCI material has a long service life, which is higher than similar products;
-Wide application range: it has been proved by practice that this drill bit is suitable for drilling in soft and medium hard formations, such as carbonate rock, limestone, cretaceous rock, clay rock, siltstone and sandstone.
- Compared with general drills, especially in rock formations, the effect is especially remarkable.
-The drill bit available sizes from 2 7/8 to 26” larger sizes for hole opener bit ,reamer bit. TCI tooth styles and shank styles to match the application and rock formations you are drilling in.
2.Applications:
Wry soft formation with low compressive strength and high drillability, such as:
shale, clay, sandstone, gravel, etc.
3.Specifications:
| Bit size |
API thread |
recommended torque |
| in |
mm |
in |
KN.M |
| 6 |
152.4 |
3 1/2 |
9. 5-12.2 |
| 6 1/8 |
155.6 |
3 1/2 |
9. 5-12.2 |
| 6 1/4 |
158.8 |
3 1/2 |
9. 5-12.2 |
| 6 1/2 |
165.1 |
3 1/2 |
9. 5-12.2 |
| 6 5/8 |
168.3 |
3 1/2 |
9. 5-12.2 |
| 6 3/4 |
171.5 |
3 1/2 |
9. 5-12.2 |
| 7 1/2 |
190.5 |
4 1/2 |
16. 3〜21. 7 |
| 7 5/8 |
193.7 |
4 1/2 |
16. 3〜21. 7 |
| 7 7/8 |
200 |
4 1/2 |
16. 3〜21. 7 |
| 8 3/8 |
212.7 |
4 1/2 |
16. 3〜21. 7 |
| 8 1/2 |
215.9 |
4 1/2 |
16. 3〜21. 7 |
| 8 5/8 |
219.1 |
4 1/2 |
16. 3〜21. 7 |
| 8 3/4 |
222.3 |
4 1/2 |
16. 3〜21. 7 |
| 9 1/2 |
241.3 |
6 5/8 |
38〜43. 4 |
| 9 5/8 |
244.5 |
6 5/8 |
38〜43. 4 |
| 9 7/8 |
250.8 |
6 5/8 |
38〜43. 4 |
| 10 1/2 |
266.7 |
6 5/8 |
38〜43. 4 |
| 10 5/8 |
269.9 |
6 5/8 |
38〜43. 4 |
| 11 |
279.4 |
6 5/8 |
38〜43. 4 |
| 115/8 |
295.3 |
6 5/8 |
38〜43. 4 |
| 12 |
304.8 |
6 5/8 |
38〜43. 4 |
| 12 1/4 |
311.2 |
6 5/8 |
38〜43. 4 |
| 12 5/16 |
312.7 |
6 5/8 |
38〜43. 4 |
| 12 3/8 |
314.3 |
6 5/8 |
38〜43. 4 |
| 12 7/16 |
315.9 |
6 5/8 |
38〜43. 4 |
| 12 5/8 |
320.7 |
6 5/8 |
38〜43. 4 |
| 13 1/8 |
333.4 |
6 5/8 |
38〜43. 4 |
| 13 1/2 |
342.9 |
6 5/8 |
38〜43. 4 |
| 13 5/8 |
346.1 |
6 5/8 |
38〜43. 4 |
| 13 3/4 |
349.3 |
6 5/8 |
38〜43. 4 |
|
4.After services:
- T/T or Western Union or money gram or L/C at sight?
All are no problem.
- Shipping time for an order:
If have stock, as usual, we can deliver the goods as soon as get the full payment.
- Quality control:
Each production process have quality inspector to check the quality . And we have a very strict factory standard. There will also be strict inspection and testing for every order before shipping out.
- After sale service:
Free replacement will provide once the failure confirmed caused by our product quality.

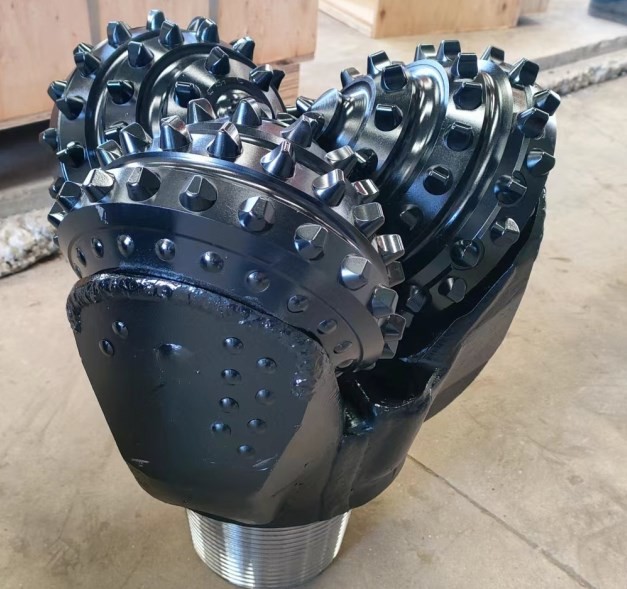

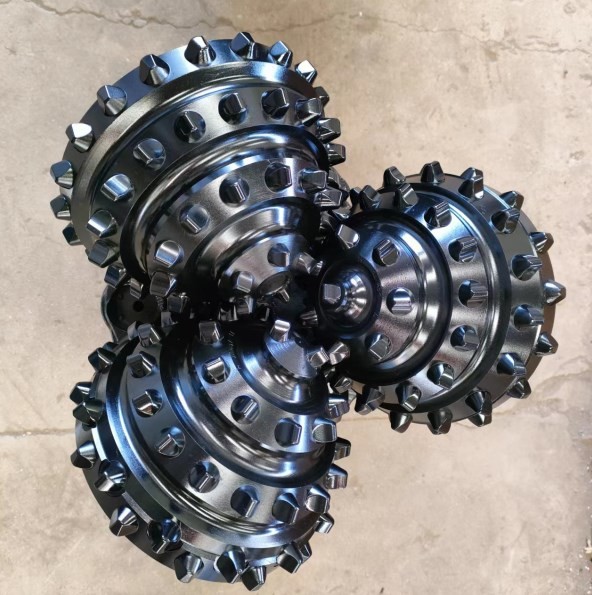

The Photo of products
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
