Brand new 17 1 /2'' water well drilling bits three cone bit for drilling
1.Description:
-Bearing Structure of this type tci tricone rock bits :
High precision roller bearing with two thrust faces. Ball locks the cone. Thrust faces hard face with wear resistant alloy. Abrasion resistance and seizure resistance of the bearing are improved.
How to get an exact quotation?
Answer: Please send us detailed information as below:
-Tricone bits(Diameter, IADC code)
-PDC bits(Matrix or Steel body, blades quantity, cutter size, etc)
-Hole opener(Diameter, size of pilot hole, hardness of rocks, thread connection of your drill pipe, etc.)
-Downhole Mud Motor(Size, Bending, drill bit size, drill pipe size etc)
-Roller cutters(Diameter of cones, model number, etc.)
-Core barrel(Diameter, quantity of cutters, connection, etc.)ystem, injection system, oil storage pressure balance system and thread connection.
2.Applications:
Wry soft formation with low compressive strength and high drillability, such as:
shale, clay, sandstone, gravel, etc.
3.Specifications:
| Bit size |
API thread |
recommended torque |
| in |
mm |
in |
KN.M |
| 6 |
152.4 |
3 1/2 |
9. 5-12.2 |
| 6 1/8 |
155.6 |
3 1/2 |
9. 5-12.2 |
| 6 1/4 |
158.8 |
3 1/2 |
9. 5-12.2 |
| 6 1/2 |
165.1 |
3 1/2 |
9. 5-12.2 |
| 6 5/8 |
168.3 |
3 1/2 |
9. 5-12.2 |
| 6 3/4 |
171.5 |
3 1/2 |
9. 5-12.2 |
| 7 1/2 |
190.5 |
4 1/2 |
16. 3〜21. 7 |
| 7 5/8 |
193.7 |
4 1/2 |
16. 3〜21. 7 |
| 7 7/8 |
200 |
4 1/2 |
16. 3〜21. 7 |
| 8 3/8 |
212.7 |
4 1/2 |
16. 3〜21. 7 |
| 8 1/2 |
215.9 |
4 1/2 |
16. 3〜21. 7 |
| 8 5/8 |
219.1 |
4 1/2 |
16. 3〜21. 7 |
| 8 3/4 |
222.3 |
4 1/2 |
16. 3〜21. 7 |
| 9 1/2 |
241.3 |
6 5/8 |
38〜43. 4 |
| 9 5/8 |
244.5 |
6 5/8 |
38〜43. 4 |
| 9 7/8 |
250.8 |
6 5/8 |
38〜43. 4 |
| 10 1/2 |
266.7 |
6 5/8 |
38〜43. 4 |
| 10 5/8 |
269.9 |
6 5/8 |
38〜43. 4 |
| 11 |
279.4 |
6 5/8 |
38〜43. 4 |
| 115/8 |
295.3 |
6 5/8 |
38〜43. 4 |
| 12 |
304.8 |
6 5/8 |
38〜43. 4 |
| 12 1/4 |
311.2 |
6 5/8 |
38〜43. 4 |
| 12 5/16 |
312.7 |
6 5/8 |
38〜43. 4 |
| 12 3/8 |
314.3 |
6 5/8 |
38〜43. 4 |
| 12 7/16 |
315.9 |
6 5/8 |
38〜43. 4 |
| 12 5/8 |
320.7 |
6 5/8 |
38〜43. 4 |
| 13 1/8 |
333.4 |
6 5/8 |
38〜43. 4 |
| 13 1/2 |
342.9 |
6 5/8 |
38〜43. 4 |
| 13 5/8 |
346.1 |
6 5/8 |
38〜43. 4 |
| 13 3/4 |
349.3 |
6 5/8 |
38〜43. 4 |
|
4.Packing:
Packing: Wooden box or according your requirement
Shipping:Air transportation, Sea transportation, International Express, railway transportation

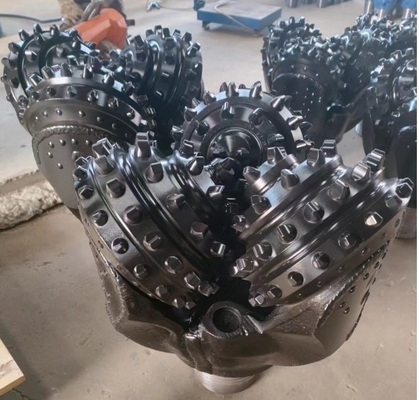

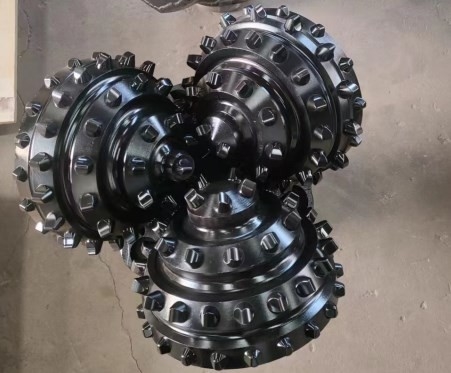

The Photo of products
