High strength Tricone Rock Bit 6 3-4 '' For Soft To Hard Formation
1.Description:
-Tricone drill bits has been in continuous use in the water well,oil & gas industry, and is still being improved!
-We have a wide selection of tricone bits - there’s a bit for every application.our product line can be configured to use tungsten car bide insert (TCI) bits and steel tooth bits for the toughest drilling applications.
-Tricone bits cut faster and last longer in all ground conditions and especially varying ground conditions.Higher penetration rates and Higher quality.
-The 6 3-4 '' blast hole bits are designed for drilling soft to medium hard formations, with rock compressive.Formation drilled may consist of shale, limestone, quartzite, slate, sandstone and granite.
2.Applications:
Wry soft formation with low compressive strength and high drillability, such as:
shale, clay, sandstone, gravel, etc.
3.Specifications:
| Bit size |
API thread |
recommended torque |
| in |
mm |
in |
KN.M |
| 6 |
152.4 |
3 1/2 |
9. 5-12.2 |
| 6 1/8 |
155.6 |
3 1/2 |
9. 5-12.2 |
| 6 1/4 |
158.8 |
3 1/2 |
9. 5-12.2 |
| 6 1/2 |
165.1 |
3 1/2 |
9. 5-12.2 |
| 6 5/8 |
168.3 |
3 1/2 |
9. 5-12.2 |
| 6 3/4 |
171.5 |
3 1/2 |
9. 5-12.2 |
| 7 1/2 |
190.5 |
4 1/2 |
16. 3〜21. 7 |
| 7 5/8 |
193.7 |
4 1/2 |
16. 3〜21. 7 |
| 7 7/8 |
200 |
4 1/2 |
16. 3〜21. 7 |
| 8 3/8 |
212.7 |
4 1/2 |
16. 3〜21. 7 |
| 8 1/2 |
215.9 |
4 1/2 |
16. 3〜21. 7 |
| 8 5/8 |
219.1 |
4 1/2 |
16. 3〜21. 7 |
| 8 3/4 |
222.3 |
4 1/2 |
16. 3〜21. 7 |
| 9 1/2 |
241.3 |
6 5/8 |
38〜43. 4 |
| 9 5/8 |
244.5 |
6 5/8 |
38〜43. 4 |
| 9 7/8 |
250.8 |
6 5/8 |
38〜43. 4 |
| 10 1/2 |
266.7 |
6 5/8 |
38〜43. 4 |
| 10 5/8 |
269.9 |
6 5/8 |
38〜43. 4 |
| 11 |
279.4 |
6 5/8 |
38〜43. 4 |
| 115/8 |
295.3 |
6 5/8 |
38〜43. 4 |
| 12 |
304.8 |
6 5/8 |
38〜43. 4 |
| 12 1/4 |
311.2 |
6 5/8 |
38〜43. 4 |
| 12 5/16 |
312.7 |
6 5/8 |
38〜43. 4 |
| 12 3/8 |
314.3 |
6 5/8 |
38〜43. 4 |
| 12 7/16 |
315.9 |
6 5/8 |
38〜43. 4 |
| 12 5/8 |
320.7 |
6 5/8 |
38〜43. 4 |
| 13 1/8 |
333.4 |
6 5/8 |
38〜43. 4 |
| 13 1/2 |
342.9 |
6 5/8 |
38〜43. 4 |
| 13 5/8 |
346.1 |
6 5/8 |
38〜43. 4 |
| 13 3/4 |
349.3 |
6 5/8 |
38〜43. 4 |
|
4.Packaging & Shipping:
Packaging for tricone drill bit for water well drilling is in carton box.
Samples will be shipped by express, batch products will be shipped by sea;
3-5 days for samples, batch products are depend on the order quantity.
5.Our advantage:
- We have CE,SGS certificate, we guarantee product quality, delivery time and payment in safe; button tooth used tricone bits
- 20+ years manufacturing experience of drill bits;
- Powerful technology support and mature manufacturing experience;
- Strict quality control before delivering;
- 24 hours online service;
- We can provide customized products with special requirements.

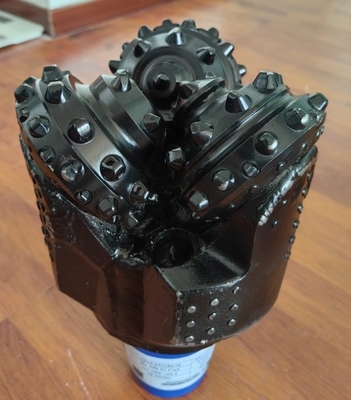

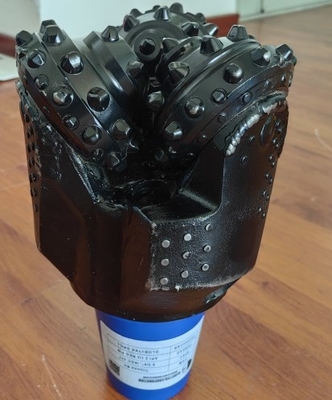

The Photo of products
