Name: Api Standard Tricone Roller Bit 14 3 / 4'' Iadc 127 Steel Tooth
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 14 3-4'' IADC217
Price: 10,350.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Roller Cone

Application: Oil,gas,water Well,diamond Oil Well Drilling

Color: Black Or As Customers' Requirement

Gauge Protection: Steel Teeth

Connection: API Reg

Highlight:

api standard tricone roller bit

iadc 127 tricone roller bit

iadc117g tricone bit

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: CE,SGS,TUV

Model Number: 14 3-4'' IADC217

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 5-7 workdays

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 2000 pieces per month

Gallery

Api Standard Tricone Roller Bit 14 3 / 4'' Iadc 127 Steel Tooth

Product Description

1.Description:

▹High temperature heat treatment forged alloy steel.
▹Carbide teeth with high strength and toughness work more efficiently
▹Tooth palm lip hard welding surface with hard alloy, Effectively prevent the drill bit wear and tear work
▹ Head OD protection to effectively reduce head wear in abrasive formation and extend bit work
▹Directional jet enlarges lateral flow area and helpful bottom hole cleaning and increase of ROP
▹Lubricating system protection of bearing and sea l system of bit extend bit work life

2.Applications:

Soft formation with low compressive strength and high drillability, such as:
shale, clay, salt rock, soft limestone,etc.

3.Specifications:

Bit size		API thread	recommended torque
in	mm	in	KN.M
6	152.4	3 1/2	9. 5-12.2
6 1/8	155.6	3 1/2	9. 5-12.2
6 1/4	158.8	3 1/2	9. 5-12.2
6 1/2	165.1	3 1/2	9. 5-12.2
6 5/8	168.3	3 1/2	9. 5-12.2
6 3/4	171.5	3 1/2	9. 5-12.2
7 1/2	190.5	4 1/2	16. 3〜21. 7
7 5/8	193.7	4 1/2	16. 3〜21. 7
7 7/8	200	4 1/2	16. 3〜21. 7
8 3/8	212.7	4 1/2	16. 3〜21. 7
8 1/2	215.9	4 1/2	16. 3〜21. 7
8 5/8	219.1	4 1/2	16. 3〜21. 7
8 3/4	222.3	4 1/2	16. 3〜21. 7
9 1/2	241.3	6 5/8	38〜43. 4
9 5/8	244.5	6 5/8	38〜43. 4
9 7/8	250.8	6 5/8	38〜43. 4
10 1/2	266.7	6 5/8	38〜43. 4
10 5/8	269.9	6 5/8	38〜43. 4
11	279.4	6 5/8	38〜43. 4
115/8	295.3	6 5/8	38〜43. 4
12	304.8	6 5/8	38〜43. 4
12 1/4	311.2	6 5/8	38〜43. 4
12 5/16	312.7	6 5/8	38〜43. 4
12 3/8	314.3	6 5/8	38〜43. 4
12 7/16	315.9	6 5/8	38〜43. 4
12 5/8	320.7	6 5/8	38〜43. 4
13 1/8	333.4	6 5/8	38〜43. 4
13 1/2	342.9	6 5/8	38〜43. 4
13 5/8	346.1	6 5/8	38〜43. 4
13 3/4	349.3	6 5/8	38〜43. 4

4.Feature Advantage:

1) High-strength,high flexibility,high temperature,high wear resistance.
2) High-precision metal seal.
3) locking roller ball,to adapt to high-speed.
4) The use of high strength hig toughness carbide teeth.
5) Hours in the rotary cone bit with the impact,crushing and shearing the role of broken rock.
6) cone bit to adapt to the soft,medium and hard of various strata.

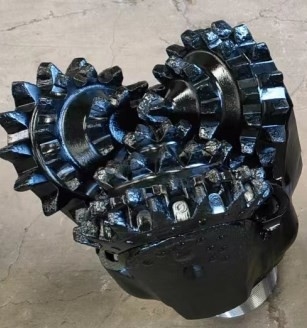

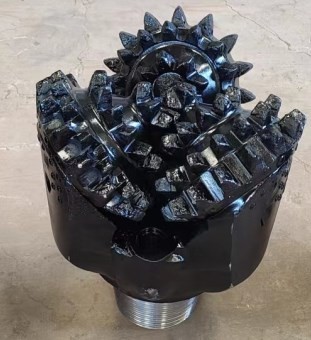

The Photo of products

Api Standard Tricone Roller Bit 14 3 / 4'' Iadc 127 Steel Tooth 0

Company Profile

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
