14 3 / 4'' IADC117G steel tooth tricone drill bit for Oil drilling and geological drilling
1.Description:
-Tricone bit used for geoloical prospecting,development of oil and gas,drilling water wells,blast holes and making holes for
seismic prospecting,construction engineering.now there are eleven common types of tricone rock bits.
Steel teeth series:IADC CODE:116,117,126,127,136,137,216,217,317,337,
TCI series:IADC CODE:417,437,447,517,527,537,547,617,627,637,647,737,837.
-Cutter structer
K Hard plastic formation cutting structure:
Unique designing parameters and wider insert crest en large rock-breaking volume on bottom hole andincrease bottom hole coverage. At the same time, shear sliding distance of inserts at bottom hole is made larger and ROP of the bit in hard plastic formation is increased.
X Conve x created wedge compact:
Conve x crested wedge compact is with the features of high effectively cutting ability and strong anti-breaking ability, which can increase ROP and improve service li te of bit effectively it's suitable for formations from medium soft to medium hard.
Y Conical spherical compact:
Main cutters of bit are con ical spherical compacts, which are suitable for drilling in hard brittleformations
2.You may concern about:
-Delivery Time:Based on order quantity, normally it takes 10-15 days for production.Only 2 or 3 days if we have stock on your request size.
-Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
-After Services: Technical Support will be available in any time. We could provide the professional suggestion for you
3.Specifications:
| Bit size |
API thread |
recommended torque |
| in |
mm |
in |
KN.M |
| 6 |
152.4 |
3 1/2 |
9. 5-12.2 |
| 6 1/8 |
155.6 |
3 1/2 |
9. 5-12.2 |
| 6 1/4 |
158.8 |
3 1/2 |
9. 5-12.2 |
| 6 1/2 |
165.1 |
3 1/2 |
9. 5-12.2 |
| 6 5/8 |
168.3 |
3 1/2 |
9. 5-12.2 |
| 6 3/4 |
171.5 |
3 1/2 |
9. 5-12.2 |
| 7 1/2 |
190.5 |
4 1/2 |
16. 3〜21. 7 |
| 7 5/8 |
193.7 |
4 1/2 |
16. 3〜21. 7 |
| 7 7/8 |
200 |
4 1/2 |
16. 3〜21. 7 |
| 8 3/8 |
212.7 |
4 1/2 |
16. 3〜21. 7 |
| 8 1/2 |
215.9 |
4 1/2 |
16. 3〜21. 7 |
| 8 5/8 |
219.1 |
4 1/2 |
16. 3〜21. 7 |
| 8 3/4 |
222.3 |
4 1/2 |
16. 3〜21. 7 |
| 9 1/2 |
241.3 |
6 5/8 |
38〜43. 4 |
| 9 5/8 |
244.5 |
6 5/8 |
38〜43. 4 |
| 9 7/8 |
250.8 |
6 5/8 |
38〜43. 4 |
| 10 1/2 |
266.7 |
6 5/8 |
38〜43. 4 |
| 10 5/8 |
269.9 |
6 5/8 |
38〜43. 4 |
| 11 |
279.4 |
6 5/8 |
38〜43. 4 |
| 115/8 |
295.3 |
6 5/8 |
38〜43. 4 |
| 12 |
304.8 |
6 5/8 |
38〜43. 4 |
| 12 1/4 |
311.2 |
6 5/8 |
38〜43. 4 |
| 12 5/16 |
312.7 |
6 5/8 |
38〜43. 4 |
| 12 3/8 |
314.3 |
6 5/8 |
38〜43. 4 |
| 12 7/16 |
315.9 |
6 5/8 |
38〜43. 4 |
| 12 5/8 |
320.7 |
6 5/8 |
38〜43. 4 |
| 13 1/8 |
333.4 |
6 5/8 |
38〜43. 4 |
| 13 1/2 |
342.9 |
6 5/8 |
38〜43. 4 |
| 13 5/8 |
346.1 |
6 5/8 |
38〜43. 4 |
| 13 3/4 |
349.3 |
6 5/8 |
38〜43. 4 |
|
4.Bearing type:
(1).sealed bearing and non-sealed bearing
(2).metal sealed journal bearing
(3).rubber sealed journal bearing
(4).aircooled bearing type

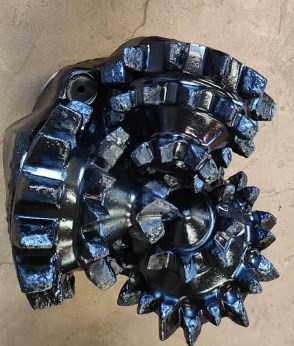

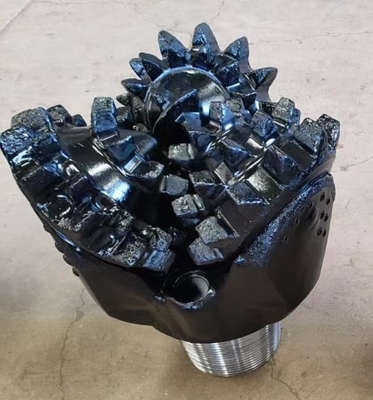

The Photo of products
