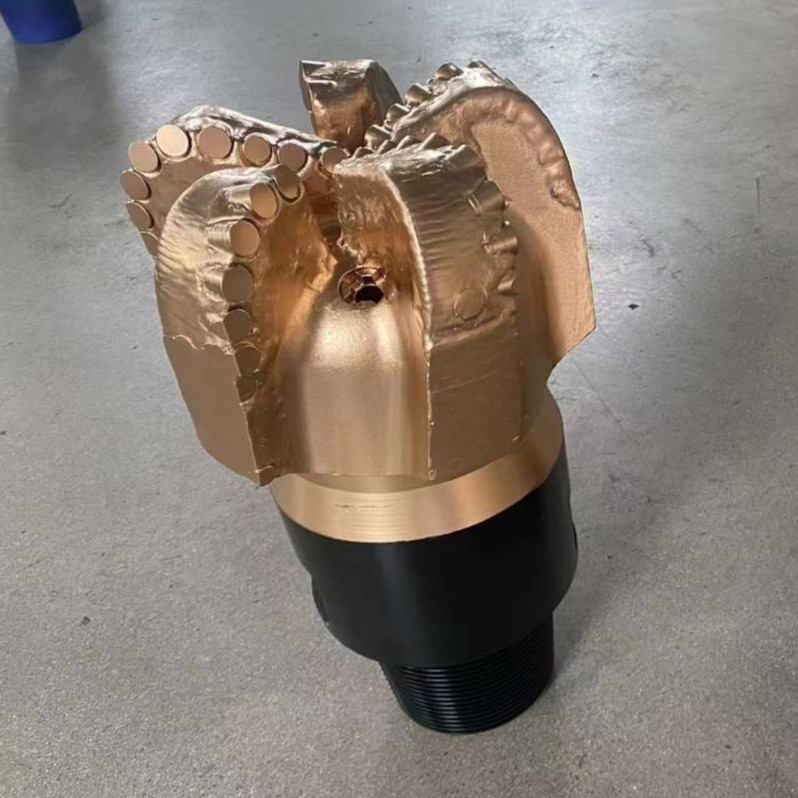

12 1/4" 311.1mm S195 Pdc Drill Bit For Oil Drilling

12 1/4" (311.1mm) S195 PDC Bit, PDC Drill Bit For Oil Drilling

The PDC drill bit features a cutting structure consisting of PDC cutters. PDC cutters are made by combining synthetic diamond grit with a tungsten carbide substrate using high-pressure, high-temperature processes. These cutters have a polycrystalline diamond layer bonded to the substrate, providing exceptional hardness, wear resistance, and thermal stability.

The body of a PDC drill bit is typically made of high-strength steel. The steel body provides structural integrity, durability, and the ability to withstand the forces and vibrations encountered during drilling operations. The design and dimensions of the bit body may vary depending on the specific application and drilling requirements.

PDC bits are versatile and can be used in a wide range of formations, including both soft and medium-hard formations. They can efficiently drill through formations such as shale, sandstone, limestone, and even some harder formations. This versatility makes PDC bits suitable for various drilling applications, including oil and gas exploration, geothermal drilling, mining, and more.

PDC drill bits are equipped with nozzles strategically positioned around the bit body. These nozzles allow the flow of drilling fluid or mud to cool and lubricate the bit, carry away cuttings, and maintain stability during the drilling process.

The PDC cutters on the bit face are arranged in a specific pattern based on the drilling requirements and formation characteristics. The layout may include various cutter sizes, shapes, and orientations to optimize cutting efficiency and stability while drilling.

Packing: wooden box.
Delivery: Normally 5-7 days after down payment.

Shipping method: by express, by air or by sea

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ?
A: No requirement for testing and trial order.
