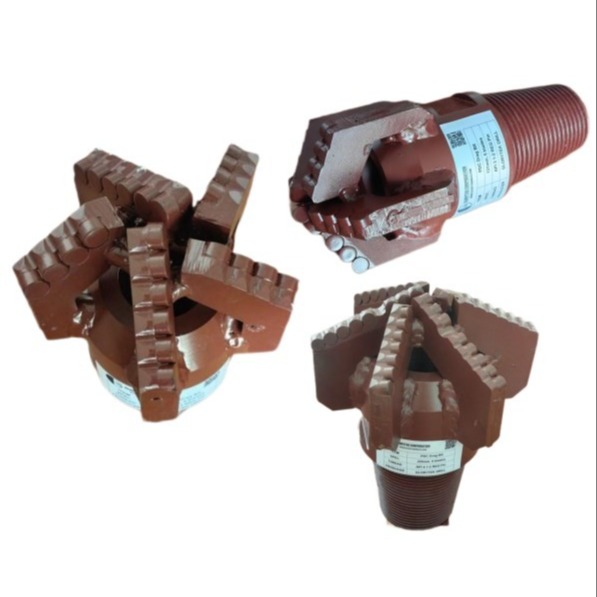

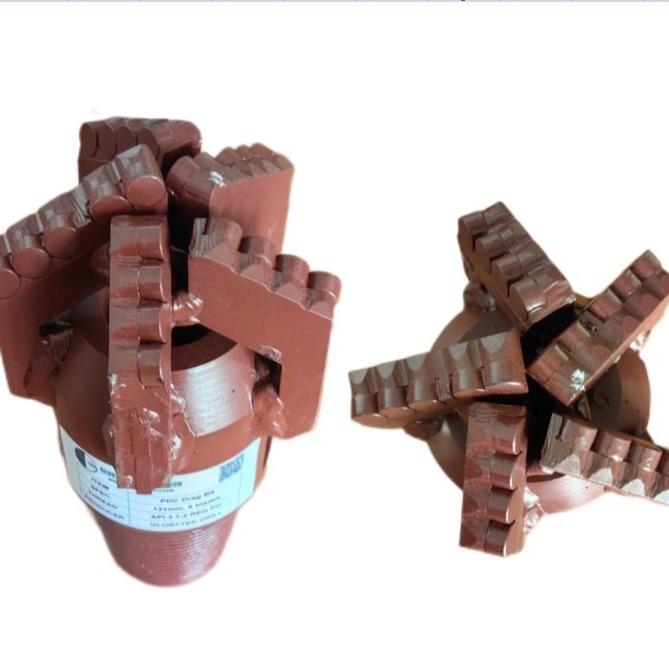

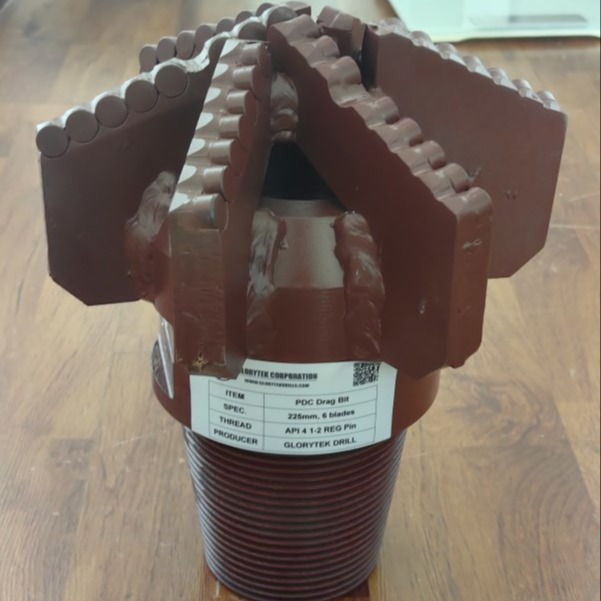

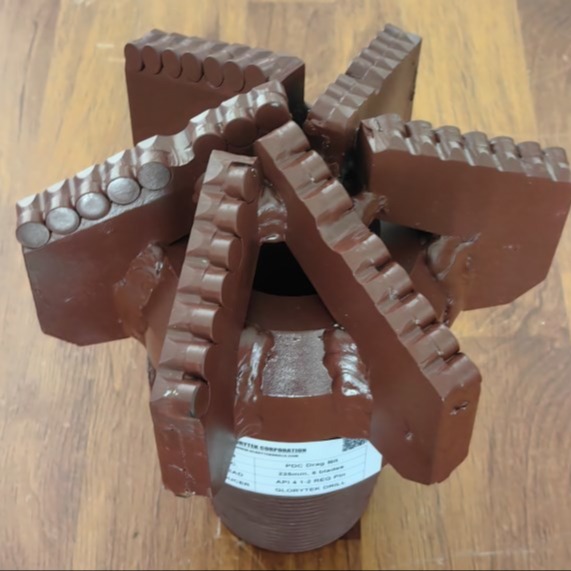

SML Customized Drilling Bits PDC Drag Bit for Water Well
1.Description:
PDC Drag Bit
We Glorytek Industry manufacture and supply various of PDC Drag bits, like 3-wing, 4-wing,5-wing,6-wing. And we can customize to meet your special requirements.
In addition to PDC bits, we also provide various bits for geological mining.Such as tricone drill bits, Dth hammer bits , diamond drill ,well drilling bits etc.
Our Drill Drag Bits are made from premium materials, ensuring long-lasting performance even in the harshest environments. They are designed to withstand high impact and resist wear, providing you with a reliable and efficient drilling experience.
>>Formation: Layer Soft, Medium soft, Hard, Medium hard
>>Material:Alloy steel, Carbide, PDC cutter
>>Market:Canada, USA, Middle east, Africa, Europe, etc .
| Size |
|
| 3 1/2" |
88.9 mm |
| 3 5/8" |
92.1 mm |
| 3 3/4" |
95.3 mm |
| 6 1/8" |
155.6mm |
| 6 1/4" |
158.8mm |
| 6 1/2" |
165.1mm |
| 8 7/8" |
225.4mm |
| 9" |
228.6mm |
| 9 1/8" |
231.8mm |
|
|
2.Features:
• A solid one piece heat treated, alloy steel body for bit strength & durability;
• CNC threaded machining for proper installation &use;
• Forgings are milled to better seat the carbide inserts.
• Relief is hand ground behind carbide inserts for maximum performance.
3.Application Industry:
Step drag bits are recommended for drilling in Mining, Exploration, Environmental, Water well, Geo Exchange, etc.
4.Specifications:
| Types of PDC Drag Bit & Application |
| Type |
Application |
| PDC 4-wing Drag Bit |
Normal |
Fit for f<6 rock formations |
| Reinforced |
Fit for f<8 rock formations |
| PDC Multi-wing Drag Bit Normal |
Normal |
Fit for f<6 rock formations |
| Reinforced |
Fit for f<8 rock formations |
|
|
| PDC Drag Bit Specifications |
| Type |
Size (mm) |
Height (mm) |
Wing(s) (pcs) |
PCD Cutter (pcs) |
Nozzle (pcs) |
Nozzle Size (mm) |
| Normal Reinforced |
94 |
170 |
4 |
16 |
5 |
6 |
| 113 |
195 |
4 |
20 |
5 |
8 |
| 133 |
220 |
6 |
30 |
5 |
8 |
| 153 |
250 |
6 |
36 |
5 |
1 |
|
|
5.Packing and Shipping
6.Company Profile
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per clients; requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
Q: Which kind pf application can be used for tricone bit?
A: Mining, tunnel, foundation pit, quarry, oil, well, etc.
Q: Do you have different type for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different type respectively.
