Sand Driller Soft Formation Mining Drill Bit used for environmental and exploration drilling
1.Description:

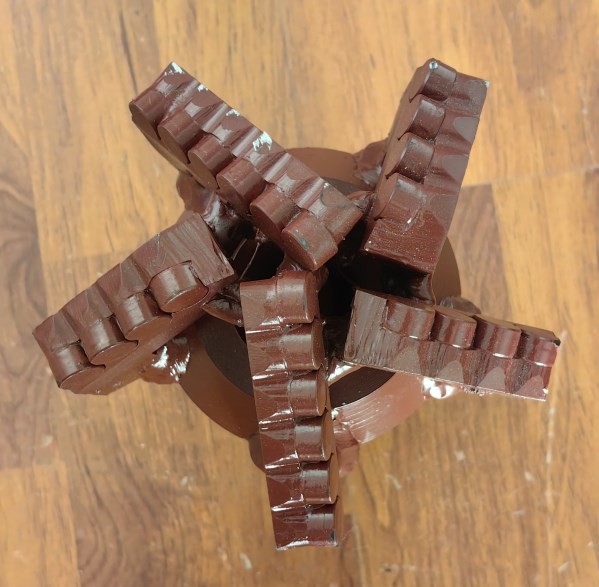

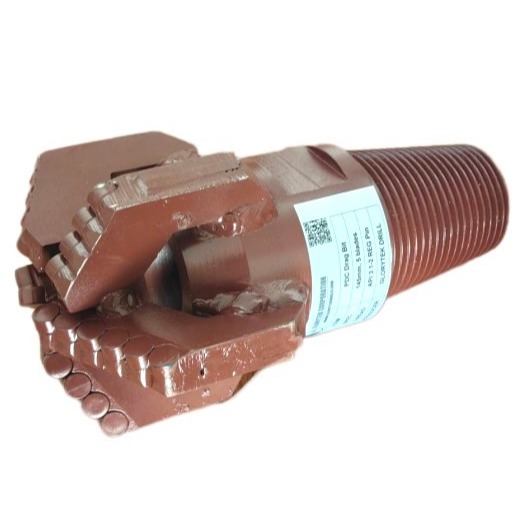

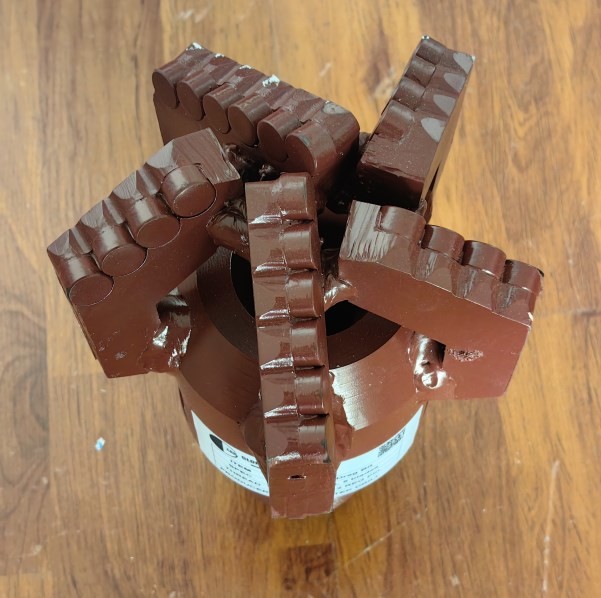

Introducing our high-quality PDC Drag Bits, designed for efficient drilling in soft formations such as sand. With 3, 4, or 5 wings and a step bit design, these drill bits are perfect for your mining machinery needs. Made from durable materials, our PDC Bits offer exceptional performance and longevity.
Our PDC Drag Bits are specifically engineered to provide optimal cutting and drilling capabilities, ensuring smooth and fast drilling operations. With their rock drill bit design, they deliver superior penetration rates, reducing drilling time and increasing productivity.
Whether you are drilling for mining purposes or any other application, our PDC Drag Bits are the perfect choice. Their versatility and reliability make them suitable for various soft formations, providing you with exceptional results every time.
| Size |
|
| 3 1/2" |
88.9 mm |
| 3 5/8" |
92.1 mm |
| 3 3/4" |
95.3 mm |
| 6 1/8" |
155.6mm |
| 6 1/4" |
158.8mm |
| 6 1/2" |
165.1mm |
| 8 7/8" |
225.4mm |
| 9" |
228.6mm |
| 9 1/8" |
231.8mm |
|
|
2.Application Industry:
Step drag bits are recommended for drilling in Mining, Exploration, Environmental, Water well, Geo Exchange, etc.
3.Specifications:
| Types of PDC Drag Bit & Application |
| Type |
Application |
| PDC 4-wing Drag Bit |
Normal |
Fit for f<6 rock formations |
| Reinforced |
Fit for f<8 rock formations |
| PDC Multi-wing Drag Bit Normal |
Normal |
Fit for f<6 rock formations |
| Reinforced |
Fit for f<8 rock formations |
|
|
| PDC Drag Bit Specifications |
| Type |
Size (mm) |
Height (mm) |
Wing(s) (pcs) |
PCD Cutter (pcs) |
Nozzle (pcs) |
Nozzle Size (mm) |
| Normal Reinforced |
94 |
170 |
4 |
16 |
5 |
6 |
| 113 |
195 |
4 |
20 |
5 |
8 |
| 133 |
220 |
6 |
30 |
5 |
8 |
| 153 |
250 |
6 |
36 |
5 |
1 |
|
|
4.Packing and Shipping
6.Company Profile
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per clients; requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
Q: Which kind pf application can be used for tricone bit?
A: Mining, tunnel, foundation pit, quarry, oil, well, etc.
Q: Do you have different type for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different type respectively.
