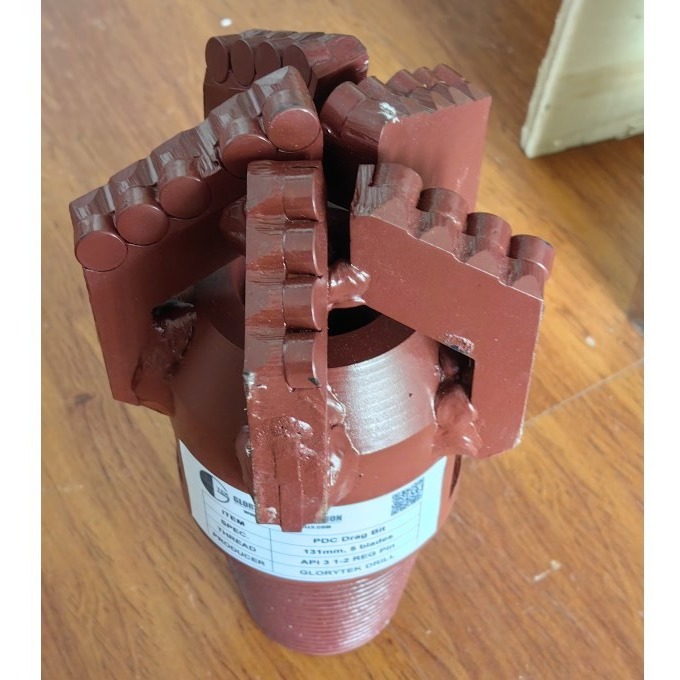

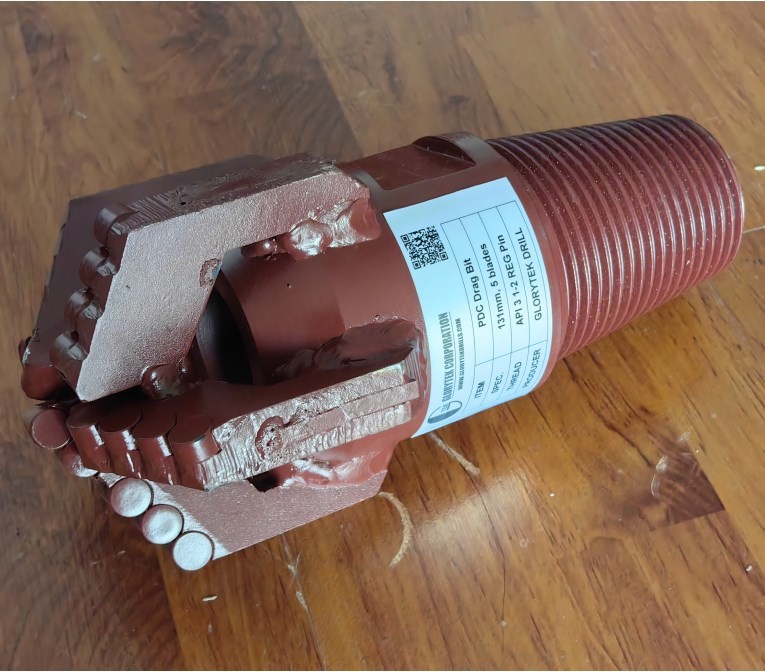

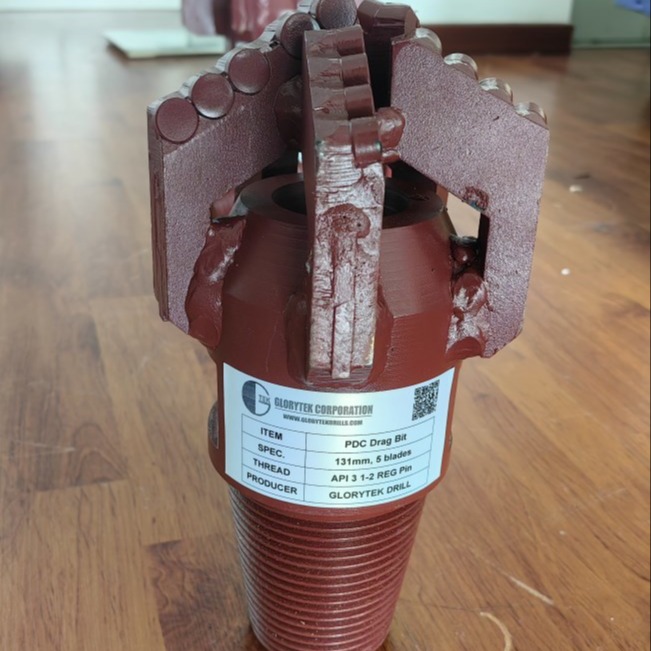

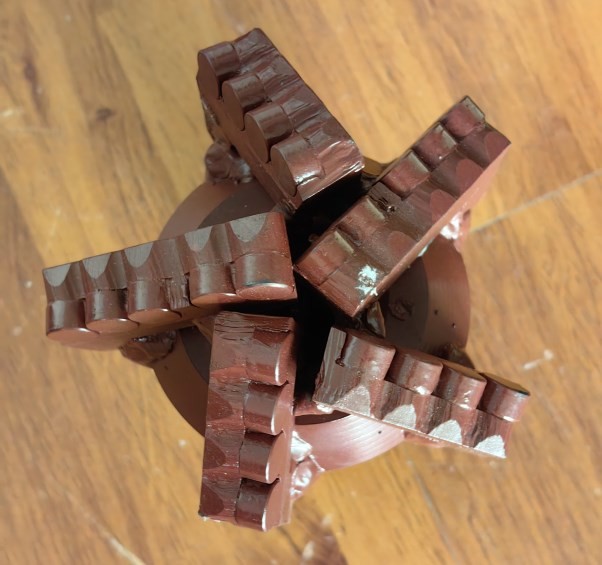

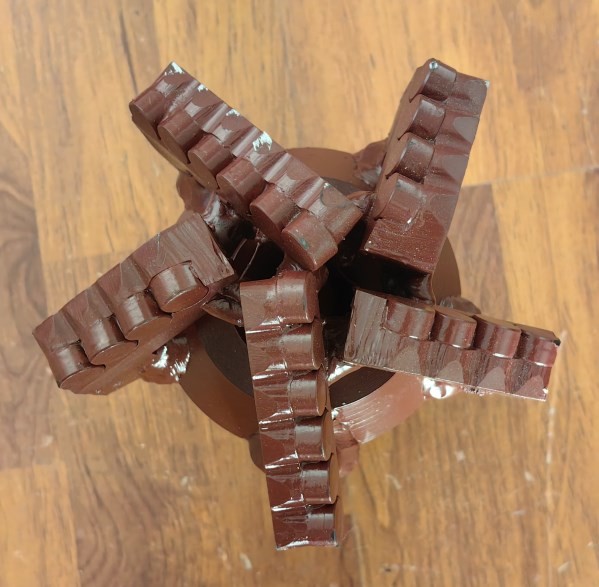

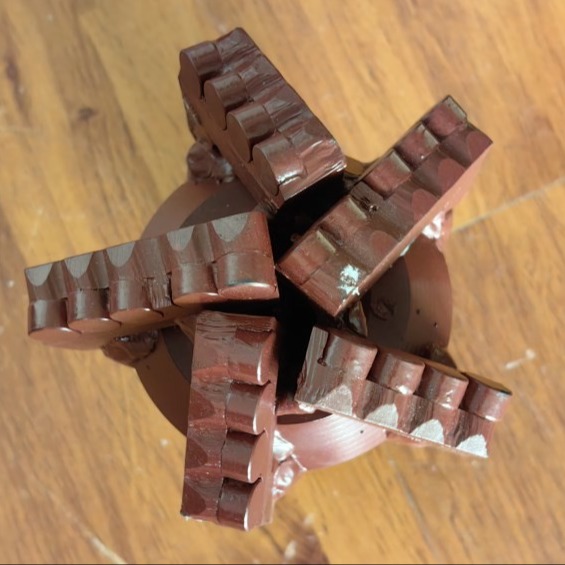

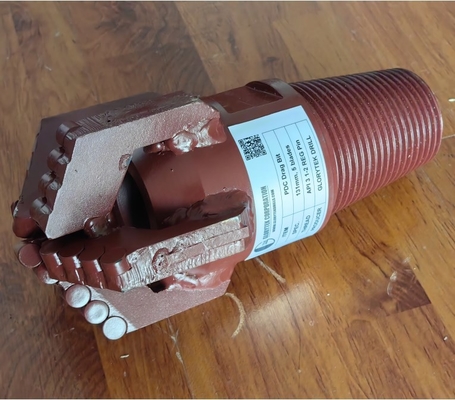

6 inch PDC Drag Bits drilling in Mining, Exploration, Environmental, Water well, Geo Exchange
1.Description:
Our PDC Drag Bits are expertly crafted using premium materials, making them highly resistant to wear and tear. This ensures a longer lifespan and reduced replacement costs.
With 3, 4, and 5 wings step bit options available, our PDC Drag Bits offer superior performance and durability. The unique design ensures efficient drilling and excellent penetration rates, saving you time and money on your drilling projects.
With their robust construction, our PDC Drag Bits offer excellent wear resistance, extending their lifespan and reducing the need for frequent replacements. This translates into significant cost savings for our customers.
Choose our PDC Drag Bits for your drilling operations and experience enhanced productivity, increased efficiency, and reduced maintenance. Trust in our high-quality mining machinery parts to take your drilling performance to new heights.
>>Formation: Layer Soft, Medium soft, Hard, Medium hard
>>Material:Alloy steel, Carbide, PDC cutter
>>Market:Canada, USA, Middle east, Africa, Europe, etc .
| Size |
|
| 3 1/2" |
88.9 mm |
| 3 5/8" |
92.1 mm |
| 3 3/4" |
95.3 mm |
| 6 1/8" |
155.6mm |
| 6 1/4" |
158.8mm |
| 6 1/2" |
165.1mm |
| 8 7/8" |
225.4mm |
| 9" |
228.6mm |
| 9 1/8" |
231.8mm |
|
|
2.Application Industry:
Step drag bits are recommended for drilling in Mining, Exploration, Environmental, Water well, Geo Exchange, etc.
3.Specifications:
| Types of PDC Drag Bit & Application |
| Type |
Application |
| PDC 4-wing Drag Bit |
Normal |
Fit for f<6 rock formations |
| Reinforced |
Fit for f<8 rock formations |
| PDC Multi-wing Drag Bit Normal |
Normal |
Fit for f<6 rock formations |
| Reinforced |
Fit for f<8 rock formations |
|
|
| PDC Drag Bit Specifications |
| Type |
Size (mm) |
Height (mm) |
Wing(s) (pcs) |
PCD Cutter (pcs) |
Nozzle (pcs) |
Nozzle Size (mm) |
| Normal Reinforced |
94 |
170 |
4 |
16 |
5 |
6 |
| 113 |
195 |
4 |
20 |
5 |
8 |
| 133 |
220 |
6 |
30 |
5 |
8 |
| 153 |
250 |
6 |
36 |
5 |
1 |
|
|
4.Packing and Shipping
6.Company Profile
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per clients; requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
Q: Which kind pf application can be used for tricone bit?
A: Mining, tunnel, foundation pit, quarry, oil, well, etc.
Q: Do you have different type for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different type respectively.
