Underground Hydraulic Rock Mining Jumbo
Product Description

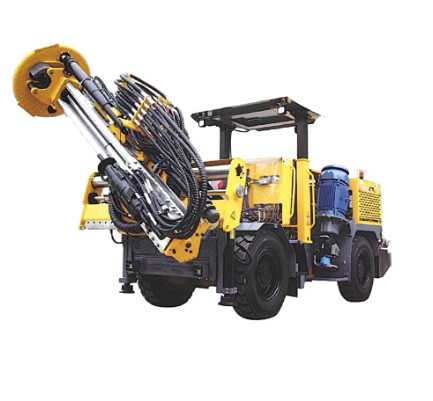

Are you in need of a reliable and efficient rock drilling machine for your mining operations? Look no further than the Underground Jumbo Drill CYTC71 Pro from Glorytek Industry (Beijing) Co., Ltd. This medium-sized medium to deep hole rock drilling jumbo is designed to meet all your drilling needs.
With a drilling diameter of 64-89mm, this jumbo can tackle a wide range of drilling tasks. It features a rod storage device that can accommodate up to 27 drill pipes, allowing for uninterrupted drilling. The impressive drilling depth of 42m (1525 drill pipes) ensures that you can reach even the deepest areas. Equipped with a high-performance top hammer rock drill and our advanced control system, the Underground Jumbo Drill CYTC71 Pro guarantees high positioning accuracy, production efficiency, and drilling quality. Whether you need to drill fan-shaped holes on vertical or inclined decks or parallel holes of 1.5m, this jumbo has got you covered. Invest in this top-rated jumbo drill and experience the benefits of its high-quality construction and reliable performance. Say goodbye to downtime and hello to increased productivity in your mining operations.
Technical Parameter
| Item |
CYTC71 |
CYTC71 Pro |
CYTC72D |
| Cross section |
3500×3500-5000×5000mm |
3800×3800-6000×6000mm |
3200×3200-4000×4000mm |
| Overall dimension |
7900×2400×2300(3000)mm |
8200×2400×2200(3000)mm |
8700×1600×2000(2800)mm |
| Ground clearance |
300mm |
270mm |
240mm |
| Total weight |
14500 ±500 kg |
16500±500 kg |
15500 ±500 kg |
| Horizontal hole range |
1500mm |
1500mm |
1500mm |
| Boom compensation stroke |
900mm |
900mm |
900mm |
| Boom pitching angle |
45° 65° |
25° 65° |
30° 50° |
| Turning radius |
3350mm (inner)
5850mm(outer) |
3820mm(inner)
6550mm(outer) |
3350mm(inner)
5750mm(outer) |
| Engine |
YTO |
- |
YANMAR / YC |
| Engine power |
73.6 kW |
81 kW |
53.7kW / 73.6kW |
| Total installed power |
65.5kW/85.5kW |
87.5kW |
85.5kW |
| Main motor power |
55kW/75kW |
75kW |
75kW |
| Voltage(customized) |
380V |
380V |
380V |
| Rod storage capacity |
|
27+1 |
27+1 |
| Rock drill (optional) |
YYG22U,YYG18U,RC2200, HC95 |
YYG22U,RC2200 |
YYG22U,RC2200 |
| |
YYG22U |
YYG18U |
HC95 |
RC2200 |
| Shank adaptor |
T38/T45 |
T38 |
T45 |
T45 |
| Rock drill length |
1097mm |
1007mm |
1032mm |
1076mm |
| Impact power |
22kW |
18kW |
24kW |
21kW |
| Impact frequency |
53Hz |
60Hz |
55Hz |
55Hz |
| Impact pressure |
220bar |
220bar |
200bar |
220bar |
| Overall length of thruster |
3160 / 3465 mm |
3160 / 3465 mm |
2855 mm |
| Rod length |
1220 / 1525 mm |
1220 / 1525 mm |
915 mm |
| mechanized drilling depth |
35/42.6 m |
35 /42.6m |
26 m |
Our Company & Service
Glorytek Industry (Beijing) Co., Ltd. is a reputable manufacturer and exporter of high-quality drilling equipment and parts. With over 20 years of experience, we have established ourselves as a trusted name in the industry. Our success stems from the support of our skilled R&D team and engineers who ensure the successful completion of projects according to clients' specifications.
Spanning an area of 250,000 square meters, our state-of-the-art factory is equipped with advanced machinery, including CNC processing centers, friction welding machines, and testing equipment. With over 200 sets of machinery and a workforce of more than 600 employees, we have the capacity to meet the demands of our customers.
Our products have gained recognition in over 60 countries, including Australia, Russia, South Africa, Malaysia, France, and the USA. We take pride in our global presence and the trust placed in us by customers worldwide.
Certificate
Customer Visit
Exhibition
FAQ
Q: How do we select an appropriate water well drilling rig?
A: We typically recommend a suitable model based on factors such as drilling depth, hole diameter, and site conditions.
Q: Is your company a manufacturer or a trading company?
A: We are an integrated corporation specializing in manufacturing and exporting.
Q: What are your accepted payment terms?
A: We accept T/T and L/C as payment methods.
Q: What is your minimum order quantity (MOQ), and what is the delivery time?
A: Our MOQ is 1 set. Usually, the delivery time for drill rigs is around 25-30 days after receiving payment, while drilling tools take about 15 days.
Q: What is the warranty period?
A: The mainframe is covered by a one-year warranty (excluding quick-wear parts).
Q: Can we have our logo printed on the products?
A: Yes, we support OEM and can accommodate your logo printing requirements.
