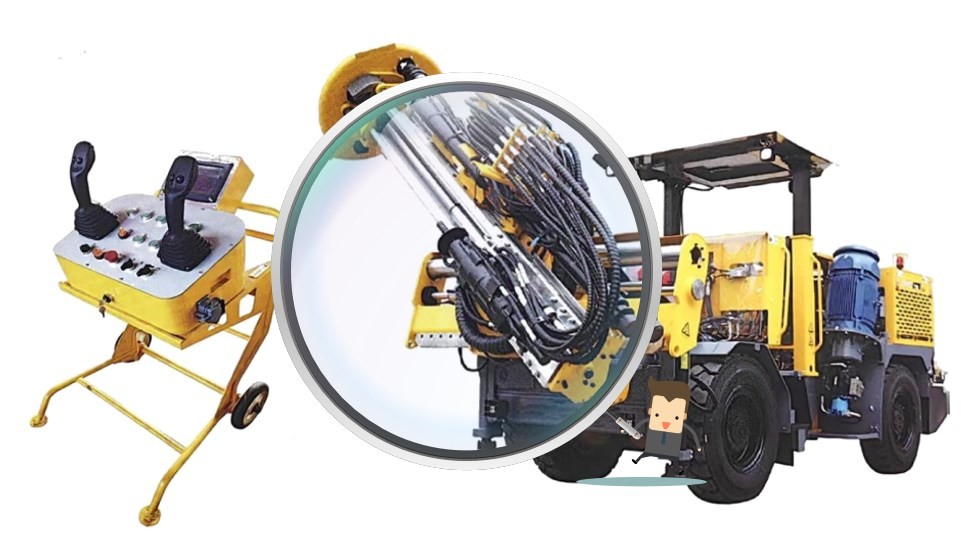

This medium-sized rock drilling jumbo is designed for medium to deep hole drilling. With a drilling diameter of 64-89mm, it is perfect for various mining operations. The rod storage device can accommodate up to 27 drill pipes, allowing for efficient drilling. The maximum drilling depth is an impressive 42m, equivalent to 1525 drill pipes.
Equipped with a high-performance top hammer rock drill and our advanced control system, this jumbo provides users with precise positioning, high production efficiency, and exceptional drilling quality. It is capable of drilling fan-shaped holes on vertical and inclined decks, as well as parallel holes of 1.5m.
Glorytek Industry (Beijing) Co., Ltd. is a trusted supplier of underground mining equipment, and this hydraulic drilling machine is one of our best offerings. It is a heavy-duty and efficient solution for deep hole rock drilling in underground mines.
| CYTC71 | CYTC71 Pro | CYTC72D | |
| Cross section | 3500×3500-5000×5000mm | 3800×3800-6000×6000mm | 3200×3200-4000×4000mm |
| Overall dimension | 7900×2400×2300(3000)mm | 8200×2400×2200(3000)mm | 8700×1600×2000(2800)mm |
| Ground clearance | 300mm | 270mm | 240mm |
| Total weight | 14500 ±500 kg | 16500±500 kg | 15500 ±500 kg |
| Horizontal hole range | 1500mm | 1500mm | 1500mm |
| Boom compensation stroke | 900mm | 900mm | 900mm |
| Boom pitching angle | 45° 65° | 25° 65° | 30° 50° |
| Turning radius | 3350mm (inner) 5850mm(outer) |
3820mm(inner) 6550mm(outer) |
3350mm(inner) 5750mm(outer) |
| Engine | YTO | CUMMINS | YANMAR / YC |
| Engine power | 73.6 kW | 81 kW | 53.7kW / 73.6kW |
| Total installed power | 65.5kW/85.5kW | 87.5kW | 85.5kW |
| Main motor power | 55kW/75kW | 75kW | 75kW |
| Voltage(customized) | 380V | 380V | 380V |
| Rod storage capacity | 27+1 | 27+1 | |
| Rock drill (optional) | YYG22U,YYG18U,RC2200, HC95 | YYG22U,RC2200 | YYG22U,RC2200 |
| YYG22U | YYG18U | HC95 | RC2200 | |
| Shank adaptor | T38/T45 | T38 | T45 | T45 |
| Rock drill length | 1097mm | 1007mm | 1032mm | 1076mm |
| Impact power | 22kW | 18kW | 24kW | 21kW |
| Impact frequency | 53Hz | 60Hz | 55Hz | 55Hz |
| Impact pressure | 220bar | 220bar | 200bar | 220bar |
| Overall length of thruster | 3160 / 3465 mm | 3160 / 3465 mm | 2855 mm |
| Rod length | 1220 / 1525 mm | 1220 / 1525 mm | 915 mm |
| mechanized drilling depth | 35/42.6 m | 35 /42.6m | 26 m |
With over 20 years of expertise in manufacturing and exporting drilling equipment, we are dedicated to meeting our clients' requirements and delivering successful projects.
Our state-of-the-art factory spans an impressive 250,000 square meters, with a construction area of approximately 150,000 square meters. Equipped with advanced machinery, including CNC processing centers and friction welding machines, we have the tools necessary to produce exceptional drilling equipment.
Keywords: Rock Drill Jumbo, Underground Mining Jumbo, Hydraulic Drilling Equipment, Low Price Drilling Machine, Top Hammer Rock Drill, Efficient Rock Drilling Jumbo, Heavy-duty Mining Equipment, Deep Hole Drilling Jumbo, Hydraulic Rock Drilling Machine, Underground Mine Drilling Jumbo, Best Hydraulic Jumbo Drill, Low Price Rock Drill, Underground Hydraulic Drilling Equipment, Hydraulic Rock Mining Jumbo, Top Hammer Drilling Machine, Rock Drill for Underground Mining, Underground Jumbo Drill Supplier, Hydraulic Rock Drill Jumbo Machine, Efficient Rock Drilling Equipment, Heavy-duty Hydraulic Jumbo, Deep Hole Rock Drilling Machine, Low Price Hydraulic Jumbo Drill, Underground Hydraulic Rock Drill, Hydraulic Drilling Machine for Mining
1. Drilling machine is bare packing, load into 40HQ container.
2. Drilling tools will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 25-30 days after receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.
