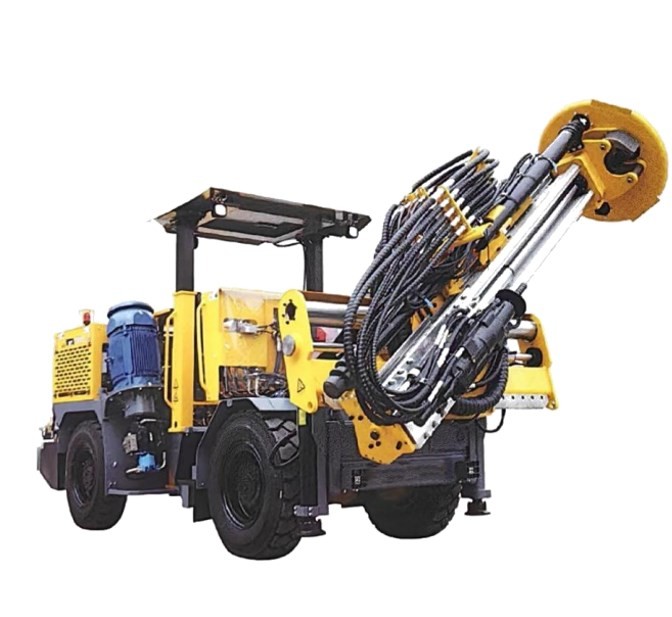

Introducing our medium-sized medium to deep hole rock drilling jumbo, the Hydraulic Rock Drilling Equipment CYTC71. Designed to provide a calm and soothing mining experience, this state-of-the-art drilling machine is perfect for underground rock mining.
With a drilling diameter of 64-89mm, our jumbo can effortlessly create fan-shaped holes on vertical, inclined decks, and parallel holes of 1.5m. The advanced control system ensures high positioning accuracy, allowing for precise drilling operations.
Equipped with a high-performance top hammer rock drill, our jumbo guarantees high production efficiency and exceptional drilling quality. The rod storage device can accommodate up to 27 drill pipes, allowing for uninterrupted drilling sessions.
With a maximum drilling depth of 42m (1525 drill pipes), our Hydraulic Rock Drilling Equipment CYTC71 is a reliable companion for all your mining needs. Its robust construction and low maintenance design ensure durability and longevity.
Experience the benefits of our top-quality hydraulic jumbo drill. Trust Glorytek Industry (Beijing) Co., Ltd. to provide you with the best underground drilling equipment in the market.
| CYTC71 | CYTC71 Pro | CYTC72D | |
| Cross section | 3500×3500-5000×5000mm | 3800×3800-6000×6000mm | 3200×3200-4000×4000mm |
| Overall dimension | 7900×2400×2300(3000)mm | 8200×2400×2200(3000)mm | 8700×1600×2000(2800)mm |
| Ground clearance | 300mm | 270mm | 240mm |
| Total weight | 14500 ±500 kg | 16500±500 kg | 15500 ±500 kg |
| Horizontal hole range | 1500mm | 1500mm | 1500mm |
| Boom compensation stroke | 900mm | 900mm | 900mm |
| Boom pitching angle | 45° 65° | 25° 65° | 30° 50° |
| Turning radius | 3350mm (inner) 5850mm(outer) |
3820mm(inner) 6550mm(outer) |
3350mm(inner) 5750mm(outer) |
| Engine | YTO | CUMMINS | YANMAR / YC |
| Engine power | 73.6 kW | 81 kW | 53.7kW / 73.6kW |
| Total installed power | 65.5kW/85.5kW | 87.5kW | 85.5kW |
| Main motor power | 55kW/75kW | 75kW | 75kW |
| Voltage(customized) | 380V | 380V | 380V |
| Rod storage capacity | 27+1 | 27+1 | |
| Rock drill (optional) | YYG22U,YYG18U,RC2200, HC95 | YYG22U,RC2200 | YYG22U,RC2200 |
| YYG22U | YYG18U | HC95 | RC2200 | |
| Shank adaptor | T38/T45 | T38 | T45 | T45 |
| Rock drill length | 1097mm | 1007mm | 1032mm | 1076mm |
| Impact power | 22kW | 18kW | 24kW | 21kW |
| Impact frequency | 53Hz | 60Hz | 55Hz | 55Hz |
| Impact pressure | 220bar | 220bar | 200bar | 220bar |
| Overall length of thruster | 3160 / 3465 mm | 3160 / 3465 mm | 2855 mm |
| Rod length | 1220 / 1525 mm | 1220 / 1525 mm | 915 mm |
| mechanized drilling depth | 35/42.6 m | 35 /42.6m | 26 m |
Experience the pinnacle of drilling equipment with Glorytek Industry (Beijing) Co., Ltd. With over 20 years of expertise in manufacturing and exporting, we are committed to meeting your requirements and delivering successful projects.
Our state-of-the-art factory spans an impressive 250,000 square meters, providing a serene and spacious environment for the production of exceptional drilling equipment. Equipped with advanced machinery, including CNC processing centers and friction welding machines, we have the tools necessary to create top-quality hydraulic rock drilling equipment.
Designed for underground rock mining, our Hydraulic Rock Drilling Equipment CYTC71 is a true marvel. With its advanced hydraulic system and robust construction, it ensures efficient and reliable drilling in deep holes. The low maintenance design guarantees hassle-free operation, allowing you to focus on your mining endeavors.
Experience the benefits of our top hammer rock drill jumbo, featuring high-performance capabilities and a durable build. Its efficient hydraulic system ensures smooth and precise drilling, while the heavy-duty construction ensures longevity and reliability in the most demanding mining environments.
Invest in the best underground drilling equipment with Glorytek Industry (Beijing) Co., Ltd. Our Hydraulic Rock Drilling Equipment CYTC71 is the epitome of excellence, offering top-quality performance, low prices, and a reliable supplier. Take your underground mining operations to new heights with our advanced drilling equipment.
1. Drilling machine is bare packing, load into 40HQ container.
2. Drilling tools will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 25-30 days after receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.
