This medium-sized medium to deep hole rock drilling jumbo is designed for efficient mining operations. With a drilling diameter of 64-89mm, it can easily drill fan-shaped holes on vertical, inclined decks, and parallel holes of 1.5m. The rod storage device can accommodate up to 27 drill pipes, allowing for a drilling depth of up to 42m (1525 drill pipes).
Equipped with a high-performance top hammer rock drill and our advanced control system, this drilling machine provides users with high positioning accuracy, high production efficiency, and high drilling quality. It is the perfect solution for underground mining operations.
| CYTC71 | CYTC71 Pro | CYTC72D | |
| Cross section | 3500×3500-5000×5000mm | 3800×3800-6000×6000mm | 3200×3200-4000×4000mm |
| Overall dimension | 7900×2400×2300(3000)mm | 8200×2400×2200(3000)mm | 8700×1600×2000(2800)mm |
| Ground clearance | 300mm | 270mm | 240mm |
| Total weight | 14500 ±500 kg | 16500±500 kg | 15500 ±500 kg |
| Horizontal hole range | 1500mm | 1500mm | 1500mm |
| Boom compensation stroke | 900mm | 900mm | 900mm |
| Boom pitching angle | 45° 65° | 25° 65° | 30° 50° |
| Turning radius | 3350mm (inner) 5850mm(outer) |
3820mm(inner) 6550mm(outer) |
3350mm(inner) 5750mm(outer) |
| Engine | YTO | CUMMINS | YANMAR / YC |
| Engine power | 73.6 kW | 81 kW | 53.7kW / 73.6kW |
| Total installed power | 65.5kW/85.5kW | 87.5kW | 85.5kW |
| Main motor power | 55kW/75kW | 75kW | 75kW |
| Voltage(customized) | 380V | 380V | 380V |
| Rod storage capacity | 27+1 | 27+1 | |
| Rock drill (optional) | YYG22U,YYG18U,RC2200, HC95 | YYG22U,RC2200 | YYG22U,RC2200 |
| YYG22U | YYG18U | HC95 | RC2200 | |
| Shank adaptor | T38/T45 | T38 | T45 | T45 |
| Rock drill length | 1097mm | 1007mm | 1032mm | 1076mm |
| Impact power | 22kW | 18kW | 24kW | 21kW |
| Impact frequency | 53Hz | 60Hz | 55Hz | 55Hz |
| Impact pressure | 220bar | 220bar | 200bar | 220bar |
| Overall length of thruster | 3160 / 3465 mm | 3160 / 3465 mm | 2855 mm |
| Rod length | 1220 / 1525 mm | 1220 / 1525 mm | 915 mm |
| mechanized drilling depth | 35/42.6 m | 35 /42.6m | 26 m |

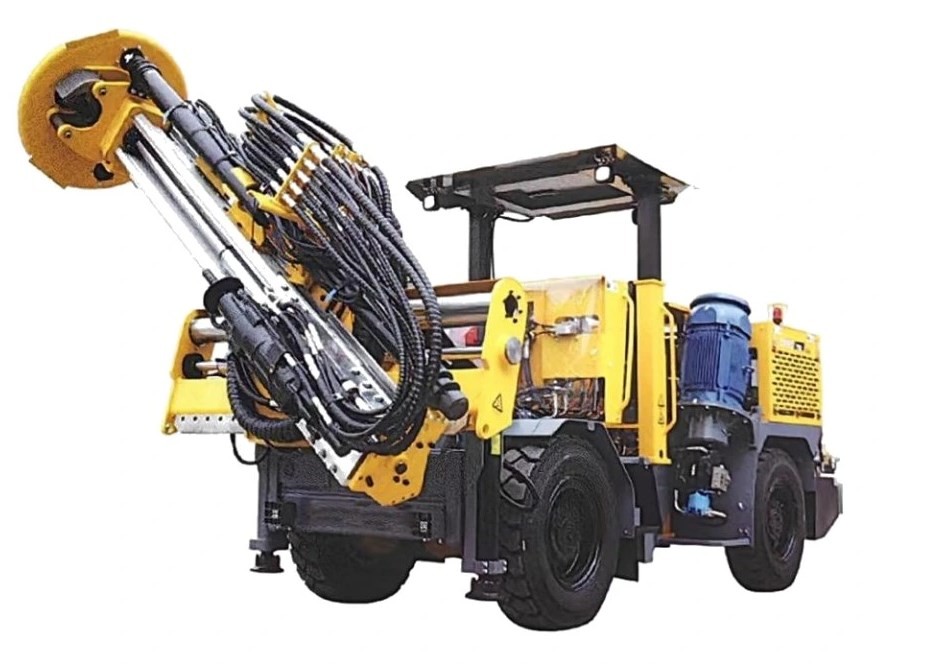

Introducing the Underground Hydraulic Drilling Machine CYTC71 Pro from Glorytek Industry (Beijing) Co., Ltd. With over 20 years of expertise in manufacturing and exporting drilling equipment, we are dedicated to meeting our clients' requirements and delivering successful projects.
Our state-of-the-art factory spans an impressive 250,000 square meters, with a construction area of approximately 150,000 square meters. Equipped with advanced machinery, including CNC processing centers and friction welding machines, we have the tools necessary to produce exceptional drilling equipment.
Key Features:
Experience the benefits of our Underground Hydraulic Drilling Machine CYTC71 Pro:
Choose Glorytek Industry (Beijing) Co., Ltd. for the best underground drilling machine. Contact us today for more information and to discuss your drilling equipment needs.
1. Drilling machine is bare packing, load into 40HQ container.
2. Drilling tools will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 25-30 days after receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.
