Name: 200mm Tricone Rock Bit Oil Gas Geothermal Mining Water Iadc 545 Compatible Api Standard
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 200mm IADC545
Price: 10,350.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Oil/Gas/Geothermal/Mining/Water IADC545 Tricone Rock Bit Compatible With API Standard

Keyword: IADC545 Hard Rock Tricone Bit

IADC: IADC545, 535 And Etc.

Application: Mining Drilling, HDD Trenchless, Well Drilling Etc.

Colors: Black, Blue, Etc.

Size: 7 7/8" (200mm)

Highlight:

200mm tricone rock bit

iadc 545 tricone rock bit

tricone bit compatible api standard

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: SGS, TUV

Model Number: 200mm IADC545

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10-15 days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 100sets/month

Gallery

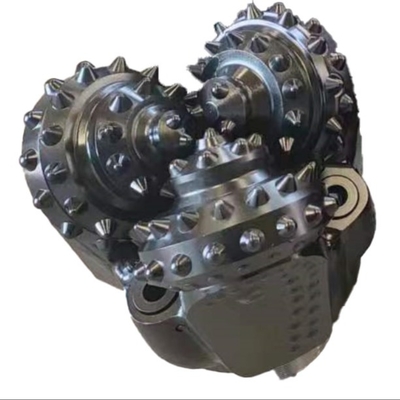

200mm Tricone Rock Bit Oil Gas Geothermal Mining Water Iadc 545 Compatible Api Standard

Product Description

Air Drilling IADC545 Hard Rock Tricone Bit for Oil well with Elastomer Sealed Bearing

Description

According to cutting material,tirocne bit can be divided into TCI bit and Steel Tooth Bit .
TCI is short for Tungsten Carbide Insert, tungsten carbide is regular hard material in rock drilling field, another material is diamond.
Inserts means Tungsten Carbide teeth that's fitting on cones of rotary drilling roller cone bits. API TCI tricone drill bit IADC617 have type of Rubber /Elastomer sealed bearing and Metal sealed bearing. We suggest that we had better choose metal face sealed bearing bits for deep rock wells with hard formations.For very deep well drilling, we recommend Metal-face sealed bearing tricone bits in drilling depth exceeds 1000 meters, For hard rock and long distance trenchless pilot hole drilling that length exceeds 300 meters we also recommend metal-face sealed bearing tricone bits.For water well drilling, shallow well drilling or shorter distance trenchless pilot hole drilling projects, elastomer(rubber) sealed bearing tricone bits has better cost performance.

Available sizes: From 2 7/8 to 26"

IADC	WOB (KN/mm)	RPM (r/min)	Applicable Formations
114/116/117	0.3~0.75	180~60	Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc.
124/126/127	0.3~0.85	180~60	Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc.
134/135/136/137	0.3~0.95	150~60	Soft to medium formations with low compressive strength and high drillability, such as medium soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
214/215/216/217	0.35~0.95	150~60	Medium formations with high compress strength, such as medium soft shale, hard gypsum , medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
227	0.35~0.95	150~50	Medium hard formations with high compressive strength, such as abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble,etc
Note: The upper limits of WOB and RPM in above table should not be used simultaneously.

IADC	WOB (KN/mm)	RPM (r/min)	Applicable Formations
417/437/ 447/415/435	0.35~0.9	150~70	Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, gypsum, salt, soft limestone, etc.
517/527/515	0.35~1.0	140~60	Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc.
537/547/535	0.45~1.0	120~50	Soft to medium formations with low compressive strength, such as medium, soft shale, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds, etc.
617/615	0.45~1.1	90~50	Medium hard formation with high compress strength, such as hard shale, limestone, sandstone, dolomite. etc
637/635	0.5~1.2	80~40	Hard formations with high compressive strength, such as sandstone, limestone, dolomite ,hard gypsum, marble, etc.
Note: The upper limits of WOB and RPM in above table should not be used simultaneously.

Technical Parameter

Basical Specification
Bit Size	200mm
IADC Code:	545 etc.
Thread Connection	2 3/8 API REG PIN
Series	rubber sealed / metal sealed

Packing of Tricone Rock Bit

Packing: standard exporting packing.
Delivery: Normally 7-10 days after your advanced payment.

The type we can supply:

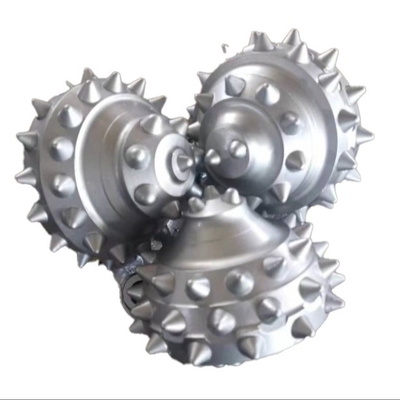

200mm Tricone Rock Bit Oil Gas Geothermal Mining Water Iadc 545 Compatible Api Standard 0

Company Profile

200mm Tricone Rock Bit Oil Gas Geothermal Mining Water Iadc 545 Compatible Api Standard 1

Glorytek Industry (Beijing)Co.,Ltd.,

located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
