Factory Direct Supply Full New 15 Inch IADC227 Tricone Drill Bit Price Tricone Bits Mining Bitng
Product Description

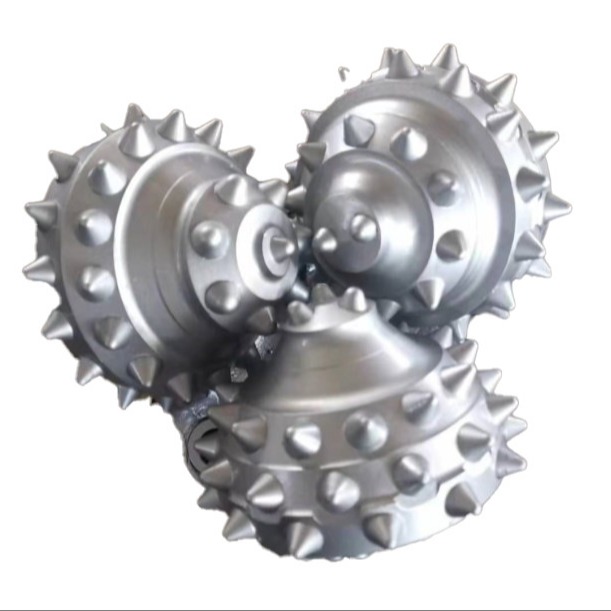

TCI Teeth Elastomer sealed bearing tricone rock bit
Cutting Structure
The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit.
Gauge Structure
Multiple gauge protection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
Bearing Structure
High precision bearing with two thrust faces. Ball lock the cone.Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.
Seal and Lubrication
Premium O-ring, Optimal seal compression and curved seal structure can enhance the seal performance. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
Product Application
It can receive highWOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape, tooth density and tooth exposure height.
Technical Parameter
| Product |
Tricone Bit |
| Model |
TCI BIT, STEEL TOOTH BIT |
| IADC CODE |
116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347 |
| 417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535 |
| Available sizes |
From 2 7/8 to 26"
larger sizes for hole opener bit ,reamer bit |
| Advantage |
most favorable price and best quality |
| Bearing type |
sealed bearing and non-sealed bearing
metal sealed journal bearing
rubber sealed journal bearing
aircooled bearing type |
| Formation or layer |
Soft, medium soft, hard, medium hard, very hard formation |
| Button size (extra features) |
Button bit, saw teeth
1) Y-Conical teeth
2) X-chisel teeth
3) K- wide teeth
4) G- Gauge protection
|
| Packing |
Wooden case |
| Delivery terms |
By sea or by air |
| Market |
Market |
| Application |
Petroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work |
Our Company & Servce
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
Q: Which kind pf application can be used for tricone bit?
A: Mining, hdd drilling, foundation pit, quarry, oil, well, etc.
Q: What is the MOQ?
A. The MOQ is 1 Piece
Q: What is the payment terms?
A: We can accept payment by T/T, Credit Card, West Union etc.
