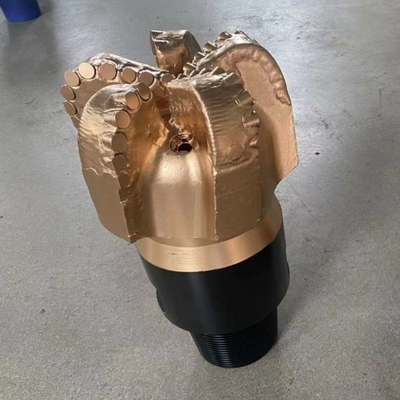

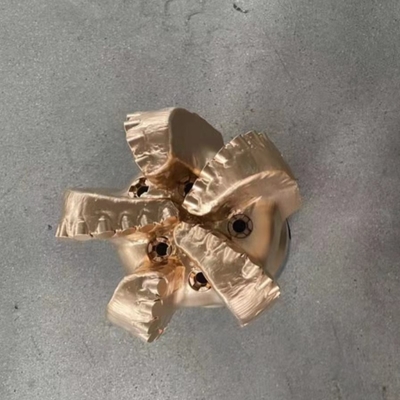

8-1/2" IADC M323 Oil Well PDC Drill Bit With Matrix Body For Hard Rock
1. Description
Introducing our PDC Bit 8 1/2 Inch Steel Body 5 Blades PDC Bit Rock Drill Bits, specially designed for efficient and productive drilling in oil well drilling operations. With its steel body construction, this drill bit offers exceptional durability and longevity, ensuring optimal performance even in the harshest drilling conditions.
Equipped with 5 blades, our PDC Bit provides superior stability and control during drilling, allowing for precise and accurate drilling operations. Its diamond cutters are engineered to deliver exceptional cutting efficiency, enabling faster drilling and increased productivity.
Invest in our PDC Bit 8 1/2 Inch Steel Body 5 Blades PDC Bit Rock Drill Bits and experience the difference in your oil well drilling operations. With its exceptional durability, efficient drilling capabilities, and superior performance, this drill bit is a must-have for any oil drilling project.
2. Product Parameters
|
Bit Type
|
6"
|
8-1/2"
|
8-1/2"
|
12-1/4"
|
Bit Type
|
17-1/2" GM1606T
|
|
IADC Code
|
M423
|
M432
M332
|
M323
|
M432 M332
|
IADC Code
|
M323
|
|
Blade
|
5
|
6
|
8
|
6
|
Blade
|
6
|
|
Cutter Size (mm)
|
Φ13MM
|
Φ16MM
|
Φ13MM
|
Φ16MM
|
Cutter Size (mm)
|
Φ16MM;Φ13MM
|
|
Nozzle Qty/Type
|
5
|
13.2
|
9.6
|
30.78
|
Cutter Qty
|
Φ16×58;Φ13×81
|
|
Nozzle Qty/Type
|
3NZ
|
6NZ
|
4NZ
|
6NZ
|
Nozzle Qty/Type
|
8NZ
|
|
Gauge Length
|
1.5"
|
2.2"
|
2"
|
2.5"
|
Gauge Length (mm)
|
110
|
|
Connection
|
3-1/2" API REG
|
4-1/2" API REG
|
4-1/2" API REG
|
6-5/8" API REG
|
Connection
|
7-5/8" API REG
|
|
Make up Torque(KN.m)
|
10.4~11.4
|
24.1~26.5
|
24.1~26.5
|
51.7~56.9
|
N.W./ G.W.(KG)
|
338/388
|
|
Rotary Speed(rpm)
|
60-260
|
60-260
|
60-260
|
60-260
|
Nozzle Size (inch)
|
10/32
|
|
Weight on Bit(KN)
|
8-50
|
20-100
|
20-100
|
30-140
|
Rotary Speed(Rpm)
|
60-260
|
|
Max.WOB(KN)
|
90
|
130
|
130
|
180
|
Weight On Bit(KN)
|
30-200
|
|
Flow Rate(lps)
|
10-30
|
22-35
|
22-35
|
38-70
|
Max.WOB (KN)
|
240
|
|
|
|
|
|
|
Flow Rate(lps)
|
45-80
|
|
Above are regular sizes for your reference. Size can be customized as per your requirement.
|
3.Feature
◆Matrix Body PDC Drill Bit
Are known for providing improved wear resistance and erosion. As far as the cutter count is concerned, they are usually a heavier set than their steel body counterparts. Offering longer life and multiple bit runs, matrix body drill bits are best suited for applications of high volume or high sand.
◆Steel Body PDC Drill Bit
Are made from high alloy steel and are easy to repair. Depending upon the application they are being used in, steel body PDC drill bits can be quite good for multiple runs.
4.Packaging & Shipping
Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
we have designed and made PDC drill bits for oil and gas industry, and still continue to innovate while using top of the line degree of workmanship and skill to make sure every hole opener as well as drill bit is crafted for your use and requirement to perfection by our experienced professionals.
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
Q: Which kind pf application can be used for PDC bit?
A: Mining, tunnel, foundation pit, quarry, oil, well, etc.
Q: Do you have different type for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different type respectively.
Q:Are you Manufacture or Factory?
A:Yes we have our own factory.
Q:What the MOQ?
A. 1pc.
Q:How to place an order?
A. Inform size and model/main usage/quantity
Q:What is the Payment?
A. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
We also can accept L/C AT SIGHT if the quantity is large.
