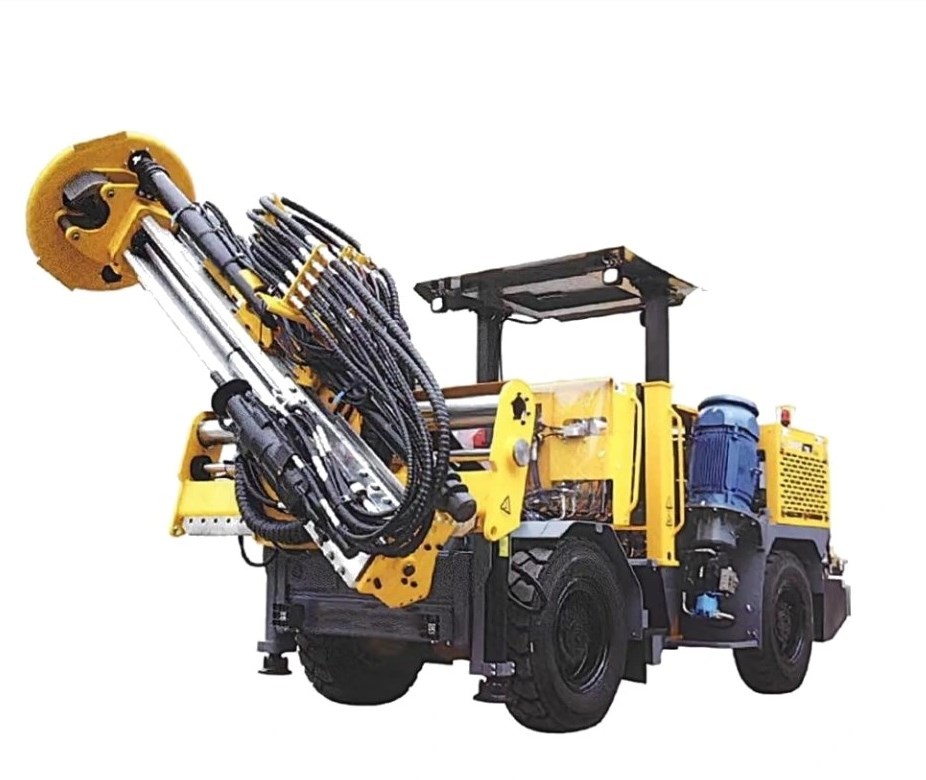

This medium-sized medium to deep hole rock drilling jumbo is designed for efficient mining operations. With a drilling diameter of 64-89mm, it can easily drill fan-shaped holes on vertical, inclined decks, and parallel holes of 1.5m. The rod storage device can accommodate up to 27 drill pipes, allowing for continuous drilling without frequent interruptions. The drilling depth can reach an impressive 42m (1525 drill pipes), ensuring the ability to tackle deep drilling projects.
Equipped with a high-performance top hammer rock drill and our advanced control system, this drilling jumbo provides users with high positioning accuracy, high production efficiency, and exceptional drilling quality. Its hydraulic system ensures smooth and precise drilling operations, while the top hammer rock drill delivers powerful and reliable performance.
Glorytek Industry (Beijing) Co., Ltd. is a trusted supplier of underground drilling equipment, and this Mine Drilling Equipment Pro CYTC71 is a testament to our commitment to providing top-notch solutions for the mining industry. With our hydraulic jumbo drill machine, you can enhance your mining operations and achieve optimal results.
| CYTC71 | CYTC71 Pro | CYTC72D | |
| Cross section | 3500×3500-5000×5000mm | 3800×3800-6000×6000mm | 3200×3200-4000×4000mm |
| Overall dimension | 7900×2400×2300(3000)mm | 8200×2400×2200(3000)mm | 8700×1600×2000(2800)mm |
| Ground clearance | 300mm | 270mm | 240mm |
| Total weight | 14500 ±500 kg | 16500±500 kg | 15500 ±500 kg |
| Horizontal hole range | 1500mm | 1500mm | 1500mm |
| Boom compensation stroke | 900mm | 900mm | 900mm |
| Boom pitching angle | 45° 65° | 25° 65° | 30° 50° |
| Turning radius | 3350mm (inner) 5850mm(outer) |
3820mm(inner) 6550mm(outer) |
3350mm(inner) 5750mm(outer) |
| Engine | YTO | CUMMINS | YANMAR / YC |
| Engine power | 73.6 kW | 81 kW | 53.7kW / 73.6kW |
| Total installed power | 65.5kW/85.5kW | 87.5kW | 85.5kW |
| Main motor power | 55kW/75kW | 75kW | 75kW |
| Voltage(customized) | 380V | 380V | 380V |
| Rod storage capacity | 27+1 | 27+1 | |
| Rock drill (optional) | YYG22U,YYG18U,RC2200, HC95 | YYG22U,RC2200 | YYG22U,RC2200 |
| YYG22U | YYG18U | HC95 | RC2200 | |
| Shank adaptor | T38/T45 | T38 | T45 | T45 |
| Rock drill length | 1097mm | 1007mm | 1032mm | 1076mm |
| Impact power | 22kW | 18kW | 24kW | 21kW |
| Impact frequency | 53Hz | 60Hz | 55Hz | 55Hz |
| Impact pressure | 220bar | 220bar | 200bar | 220bar |
| Overall length of thruster | 3160 / 3465 mm | 3160 / 3465 mm | 2855 mm |
| Rod length | 1220 / 1525 mm | 1220 / 1525 mm | 915 mm |
| mechanized drilling depth | 35/42.6 m | 35 /42.6m | 26 m |
1. Drilling machine is bare packing, load into 40HQ container.
2. Drilling tools will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 25-30 days after receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.
