Name: 5 Wings 6 Inch polycrystalline diamond bit Customization For Water Well Drilling
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 5 wings 6inch
Price: 650.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Customized:: Customized

Customized: Customized Standard:: API

Type:: PDC Bit

Material:: Steel And Matrix

Usage:: HDD Drilling

Highlight:

5 Wings polycrystalline diamond bit

6Inch polycrystalline diamond bit

polycrystalline diamond compact pdc bits Customization

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: 5 wings 6inch

Payment & Shipping Terms

Packaging Details: seaworthy package

Delivery Time: 15days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 6000 piece per month

Gallery

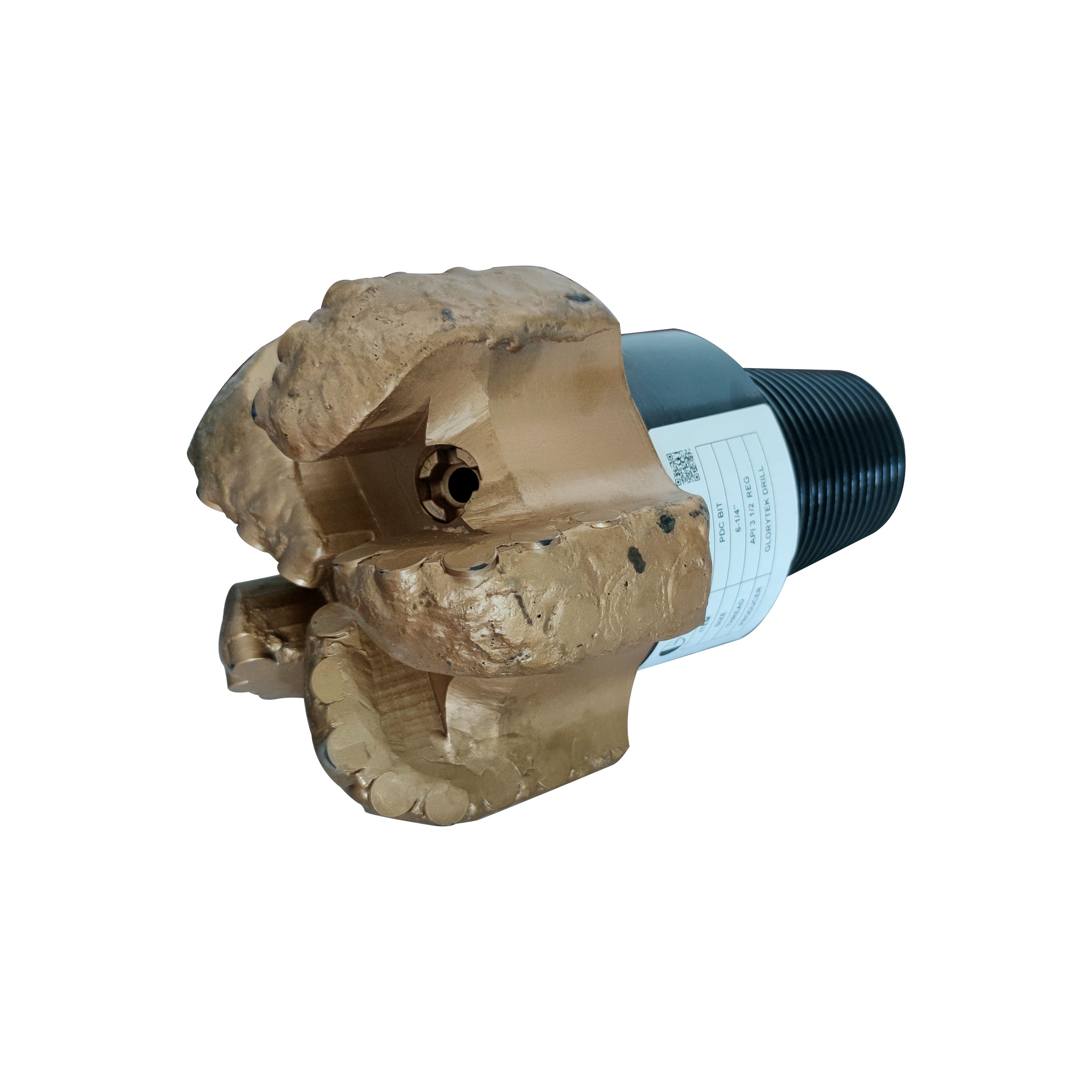

5 Wings 6 Inch polycrystalline diamond bit Customization For Water Well Drilling

Product Description

PDC Drill Bit

Product Description

PDC drill bit is a kind of full face drilling bit. It is mainly used for coal mining, oilfield, water conservancy and hydropower, construction of road and building. Glorytek has been in drilling field for decades, and we can offer PDC bit with various sizes and specifications.

5 Wings 6 Inch polycrystalline diamond bit Customization For Water Well Drilling 0

Technical Parameter

Bit Type	6"	8-1/2"	8-1/2"	12-1/4"	Bit Type	17-1/2" GM1606T
IADC Code	M423	M432 M332	M323	M432 M332	IADC Code	M323
Blade	5	6	8	6	Blade	6
Cutter Size (mm)	Φ13 MM	Φ16 MM	Φ13 MM	Φ16MM	Cutter Size (mm)	Φ16MM;Φ13MM
Nozzle Qty/Type	5	13.2	9.6	30.78	Cutter Qty	Φ16×58;Φ13×81
Nozzle Qty/Type	3NZ	6NZ	4NZ	6NZ	Nozzle Qty/Type	8NZ
Gauge Length	1.5"	2.2"	2"	2.5"	Gauge Length (mm)	110
Connection	3-1/2" API REG	4-1/2" API REG	4-1/2" API REG	6-5/8" API REG	Connection	7-5/8" API REG
Make up Torque(KN.m)	10.4~11.4	24.1~26.5	24.1~26.5	51.7~56.9	N.W./ G.W.(KG)	338/388
Rotary Speed(rpm)	60-260	60-260	60-260	60-260	Nozzle Size (inch)	10/32
Weight on Bit(KN)	8-50	20-100	20-100	30-140	Rotary Speed(Rpm)	60-260
Max.WOB(KN)	90	130	130	180	Weight On Bit(KN)	30-200
Flow Rate(lps)	10-30	22-35	22-35	38-70	Max.WOB (KN)	240
					Flow Rate(lps)	45-80

1. MEDIUM TO HARD FORMATION DRILLING
Medium to short parabolic profile with medium to heavy cutters desity helps to obtain better ROP in medium to hard formations with lower compressive strength and small abrasive layers.

2. DURASET GAUGE
Super strong material promotes gauge wear resistance to provide long bit life

3. HYDRAULICS
Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each blade with the proportional fluid flow.

4.UNIQUE BACKRACK DESIGN
The cutter's back rake has been unique design, reducing the bit torque and increasing aggressiveness.

5 Wings 6 Inch polycrystalline diamond bit Customization For Water Well Drilling 1

5 Wings 6 Inch polycrystalline diamond bit Customization For Water Well Drilling 2

FAQ

Q: Are you manufacturer or trading company?

A: We are professional manufacturer with 20+ years experience.

Q: Which kind pf application can be used for tricone bit?

A: Mining, hdd drilling, foundation pit, quarry, oil, well, etc.

Q: What is the MOQ?
A. The MOQ is 1 Piece

Q: What is the payment terms?

A: We can accept payment by T/T, Credit Card, West Union etc.
