Name: 13 5/8'' PDC Polycrystalline Diamond Compact Drill Bits For Water Well Drillng
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 13 5/8''
Price: 1,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Customized:: Customized

Advantage: High-Efficiency ,Wear Resistant

Connect Thread: API Or Reg Or Customized

Material:: Steel And Matrix

Usage:: HDD Drilling

Highlight:

13 5/8'' polycrystalline diamond compact drill bits

Well polycrystalline diamond compact drill bits

13 5/8'' polycrystalline diamond compact pdc bits

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: 13 5/8''

Payment & Shipping Terms

Packaging Details: seaworthy package

Delivery Time: 16days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 3500 piece per month

Gallery

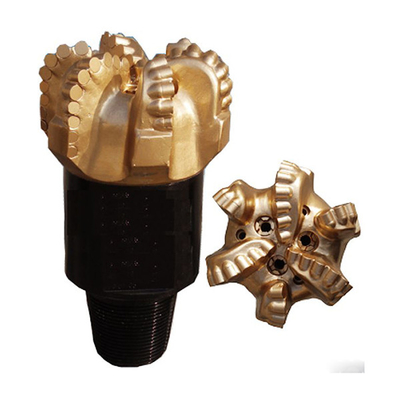

13 5/8'' PDC Polycrystalline Diamond Compact Drill Bits For Water Well Drillng

Product Description

PDC Drill Bit

Product Description

PDC drill bit is a kind of full face drilling bit. It is mainly used for coal mining, oilfield, water conservancy and hydropower, construction of road and building. Glorytek has been in drilling field for decades, and we can offer PDC bit with various sizes and specifications.

13 5/8'' PDC Polycrystalline Diamond Compact Drill Bits For Water Well Drillng 0

Technical Parameter

Bit Type	6"	8-1/2"	8-1/2"	12-1/4"	Bit Type	17-1/2" GM1606T
IADC Code	M423	M432 M332	M323	M432 M332	IADC Code	M323
Blade	5	6	8	6	Blade	6
Cutter Size (mm)	Φ13 MM	Φ16 MM	Φ13 MM	Φ16MM	Cutter Size (mm)	Φ16MM;Φ13MM
Nozzle Qty/Type	5	13.2	9.6	30.78	Cutter Qty	Φ16×58;Φ13×81
Nozzle Qty/Type	3NZ	6NZ	4NZ	6NZ	Nozzle Qty/Type	8NZ
Gauge Length	1.5"	2.2"	2"	2.5"	Gauge Length (mm)	110
Connection	3-1/2" API REG	4-1/2" API REG	4-1/2" API REG	6-5/8" API REG	Connection	7-5/8" API REG
Make up Torque(KN.m)	10.4~11.4	24.1~26.5	24.1~26.5	51.7~56.9	N.W./ G.W.(KG)	338/388
Rotary Speed(rpm)	60-260	60-260	60-260	60-260	Nozzle Size (inch)	10/32
Weight on Bit(KN)	8-50	20-100	20-100	30-140	Rotary Speed(Rpm)	60-260
Max.WOB(KN)	90	130	130	180	Weight On Bit(KN)	30-200
Flow Rate(lps)	10-30	22-35	22-35	38-70	Max.WOB (KN)	240
					Flow Rate(lps)	45-80

Company Profile

Glorytek Industry ( Beijing) Co., Ltd
>Located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

>Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

13 5/8'' PDC Polycrystalline Diamond Compact Drill Bits For Water Well Drillng 1

13 5/8'' PDC Polycrystalline Diamond Compact Drill Bits For Water Well Drillng 2

FAQ

Q: Are you manufacturer or trading company?

A: We are professional manufacturer with 20+ years experience.

Q: Which kind pf application can be used for tricone bit?

A: Mining, hdd drilling, foundation pit, quarry, oil, well, etc.

Q: What is the MOQ?
A. The MOQ is 1 Piece

Q: What is the payment terms?

A: We can accept payment by T/T, Credit Card, West Union etc.
