Name: API Standard PDC Drill Bit For Water Well Drilling 8 1/2 Inch
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 8 1/2 Inch
Price: 900.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Customized:: Customized

Customized: Customized Standard:: API

Type:: PDC Bit

Material:: Steel And Matrix

Usage:: Oil,Gas,Wells,Coal Mining

API: 2 3/8"~7 5/8"

Highlight:

API pdc drill bit

8 1/2 Inch pdc drill bit

API polycrystalline diamond compact pdc bits

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: 8 1/2 Inch

Payment & Shipping Terms

Packaging Details: seaworthy package

Delivery Time: 7-14 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 4800 piece per month

Gallery

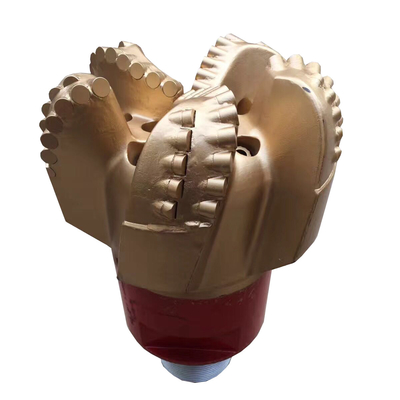

API Standard PDC Drill Bit For Water Well Drilling 8 1/2 Inch

Product Description

PDC Drill Bit

Glorytek Industry ( Beijing) Co., Ltd

>Located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

>Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

Product Description

API Standard PDC Drill Bit For Water Well Drilling 8 1/2 Inch 0

Technical Parameter

Bit Type	6"	8-1/2"	8-1/2"	12-1/4"	Bit Type	17-1/2" GM1606T
IADC Code	M423	M432 M332	M323	M432 M332	IADC Code	M323
Blade	5	6	8	6	Blade	6
Cutter Size (mm)	Φ13 MM	Φ16 MM	Φ13 MM	Φ16MM	Cutter Size (mm)	Φ16MM;Φ13MM
Nozzle Qty/Type	5	13.2	9.6	30.78	Cutter Qty	Φ16×58;Φ13×81
Nozzle Qty/Type	3NZ	6NZ	4NZ	6NZ	Nozzle Qty/Type	8NZ
Gauge Length	1.5"	2.2"	2"	2.5"	Gauge Length (mm)	110
Connection	3-1/2" API REG	4-1/2" API REG	4-1/2" API REG	6-5/8" API REG	Connection	7-5/8" API REG
Make up Torque(KN.m)	10.4~11.4	24.1~26.5	24.1~26.5	51.7~56.9	N.W./ G.W.(KG)	338/388
Rotary Speed(rpm)	60-260	60-260	60-260	60-260	Nozzle Size (inch)	10/32
Weight on Bit(KN)	8-50	20-100	20-100	30-140	Rotary Speed(Rpm)	60-260
Max.WOB(KN)	90	130	130	180	Weight On Bit(KN)	30-200
Flow Rate(lps)	10-30	22-35	22-35	38-70	Max.WOB (KN)	240
					Flow Rate(lps)	45-80

1.PDC drill bit is used for weak and dangerous rock, foundation treatment, broken ground and other grouting reinforcement drilling;
2. It is used for tunnel ventilation, exhaust gas, monitoring drilling of rock mass buildings and concrete sampling drilling.
3. The application of balancing software makes the angle of cutting teeth more scientific.

API Standard PDC Drill Bit For Water Well Drilling 8 1/2 Inch 2

API Standard PDC Drill Bit For Water Well Drilling 8 1/2 Inch 3

FAQ

Q1: Do you have after-sales service?
A1:Yes.For the drilling machine,we provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.

Q2: What about the delivery time?
A2:Witnin 7-10days,it is acccording to your order and pls consult us and confirme.

Q3. What's your standard trade terms ?
A3: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4: What is your packaging condition?
A4: Usually, we use the standard export wooden box for LCL cargo or FCL in 20/40GP container.
