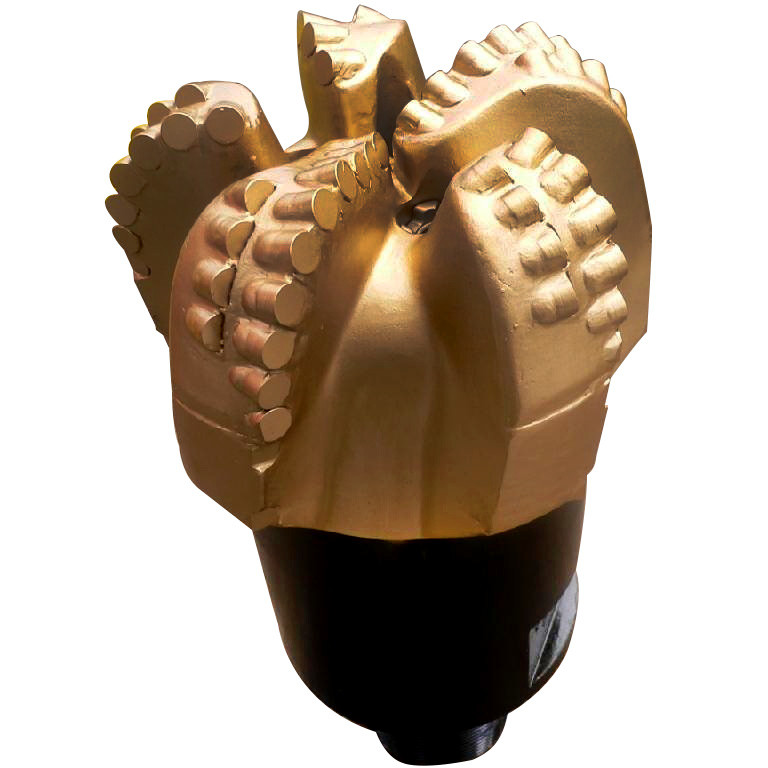

Name: 22 Inch PDC Drag Bits Support Customization
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 22''
Price: 1,150.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Customized:: Customized

Customized: Customized Standard:: API

Type:: PDC Bit

Material:: Steel Or Matrix

Usage:: Oil,Gas,Wells,Coal Mining

Connect Thread: API Or Reg Or Customized

Advantage: High-Efficiency ,Wear Resistant

API: 2 3/8"~7 5/8"

Machine Type: Drilling Tool

Highlight:

22 Inch PDC drag bits

Customization PDC drag bits

22Inch polycrystalline diamond compact pdc bits

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: 22''

Payment & Shipping Terms

Packaging Details: seaworthy package

Delivery Time: 20 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 3200 piece per month

Gallery

22 Inch PDC Drag Bits Support Customization

Product Description

PDC Drill Bit

Product Description

PDC Bit refers to Polycrystalline Diamond Compact bit (PDC bit) , which is a new type of bit with high abrasion resistance, high impact resistance, anti-deviation, antimud pack and high penetration rate.With the advantages of high rop, low WOB and high footage, it can reduce the production cost, speed up the production and improve the economic benefit of the oilfield, Types of Matrix PDC bit and steel body PDC bit.
Blade number: 3 Blade to 10 blade
Major models: 98mm/112mm/118mm/132mm/152mm/171mm/190mm/215mm/245mm/269mm/295mm/308mm/336mm/380mm

22 Inch PDC Drag Bits Support Customization 0

>>PDC bits to get sources of energy underground.
>>PDC bits to get the water underground.
>>PDC bits to install pipelines underground with No-Dig.
>>PDC bits to pile foundation hole for constructions.

Technical Parameter

Bit Type	6"	8-1/2"	8-1/2"	12-1/4"	Bit Type	17-1/2" GM1606T
IADC Code	M423	M432 M332	M323	M432 M332	IADC Code	M323
Blade	5	6	8	6	Blade	6
Cutter Size (mm)	Φ13 MM	Φ16 MM	Φ13 MM	Φ16MM	Cutter Size (mm)	Φ16MM;Φ13MM
Nozzle Qty/Type	5	13.2	9.6	30.78	Cutter Qty	Φ16×58;Φ13×81
Nozzle Qty/Type	3NZ	6NZ	4NZ	6NZ	Nozzle Qty/Type	8NZ
Gauge Length	1.5"	2.2"	2"	2.5"	Gauge Length (mm)	110
Connection	3-1/2" API REG	4-1/2" API REG	4-1/2" API REG	6-5/8" API REG	Connection	7-5/8" API REG
Make up Torque(KN.m)	10.4~11.4	24.1~26.5	24.1~26.5	51.7~56.9	N.W./ G.W.(KG)	338/388
Rotary Speed(rpm)	60-260	60-260	60-260	60-260	Nozzle Size (inch)	10/32
Weight on Bit(KN)	8-50	20-100	20-100	30-140	Rotary Speed(Rpm)	60-260
Max.WOB(KN)	90	130	130	180	Weight On Bit(KN)	30-200
Flow Rate(lps)	10-30	22-35	22-35	38-70	Max.WOB (KN)	240
					Flow Rate(lps)	45-80

22 Inch PDC Drag Bits Support Customization 2

22 Inch PDC Drag Bits Support Customization 3

FAQ

Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we
have drilling equipments like rigs, mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100%
advance payment after purchase order by T/T for small orders.

Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.

Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out
