Name: Efficient PDC Water Well Drill Bits 6 1/4 Inch
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 6 1/4inch
Price: 750.00 USD
Availability: InStock

Efficient PDC Water Well Drill Bits 6 1/4 Inch

1 piece

MOQ

USD650-850 per piece

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Customized:: Customized

Standard: API

Type:: PDC Bit

Material:: Steel Or Matrix

Usage:: Used In Very Hard Or Hardest Rock Formation

Highlight:

Water Well pdc drill bit

6 1/4 Inch pdc drill bit

Efficient polycrystalline diamond compact pdc bits

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: 6 1/4inch

Payment & Shipping Terms

Packaging Details: seaworthy package

Delivery Time: 25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 7000 piece per month

Gallery

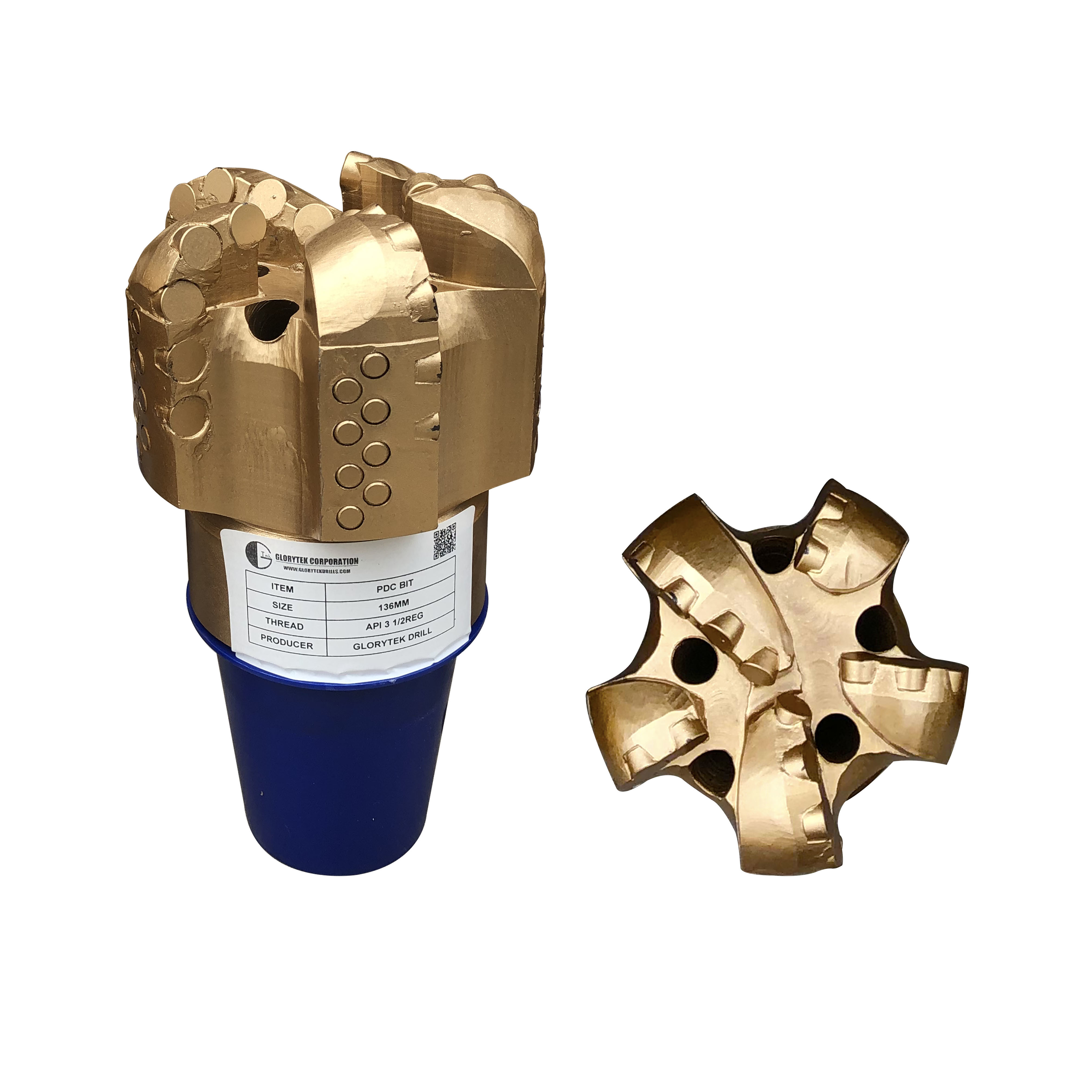

Efficient PDC Water Well Drill Bits 6 1/4 Inch

Product Description

PDC Drill Bit

Product Description

-Number of blades:5 blades
-Usage:It's a commonly used drilling tool in the drilling industry, we can supply steel body and matrix type.It is suitable for Water Well/ Oil/HDD Drilling.
-Wings: 2-wings,3-wings, 4-wings, 5-wings and 6-wings etc.
-Nomal Size: 6'',7 7/8'',8 1/2'',9 7/8'',12 1/4'',17 1/2''(27mm-559mm)

-Material:
> Matrix-type diamond compact (PDC) drill is a cutting-type drill that welds the diamond compact to the drill matrix by brazing.
The matrix bit with tungsten carbide powder, and brazed on the tungsten carbide matrix with synthetic poly crystal line
diamond composite sheet.
>Steel body PDC drill bits are machined and formed using nickel, chromium and molybdenum alloys. After heat treatment, the drill bit body is drilled, and the artificial poly crystalline diamond composite sheet is welded to the tooth cavity of the drill bit base body by brazing.

Efficient PDC Water Well Drill Bits 6 1/4 Inch 0

Technical Parameter

Size	6 1/2''	8''
Blade	5	5
Connection	3 1/2''REG	4 1/2REG
Body Tpye	Steel body	Steel body

Types of PDC Concave Bit & Application
Type		Application
PDC 3-wing Concave Bit	Normal	Fit for f <8 rock formations
PDC 3-wing Concave Bit	Reinforced	Fit for f <10 rock formations
PDC 4-wing Concave Bit	Normal	Fit for f <10 rock formations
PDC 4-wing Concave Bit	Reinforced	Fit for f <12 rock formations

PDC 5-wing Concave Bit
Type	Diameter (mm)	Heigh (mm)	Break Post (pcs)	PDC Cutter ( pcs)	Nozzle (pcs)
Normal Reinforced	75	120	2	8	6
	94	125	2	8	6
	113	130	2	12	6
	133	140	3	12	6

Efficient PDC Water Well Drill Bits 6 1/4 Inch 1

Efficient PDC Water Well Drill Bits 6 1/4 Inch 2

FAQ

Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.

Q: Which kind pf application can be used for DTH hammer?
A: Mining, tunnel, foundation pit, quarry, oil, well, etc.

Q: Do you have different type for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different type respectively.
