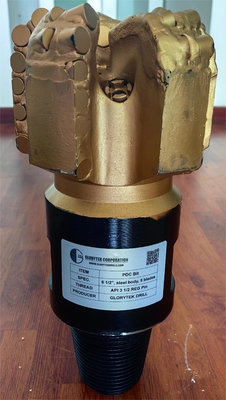

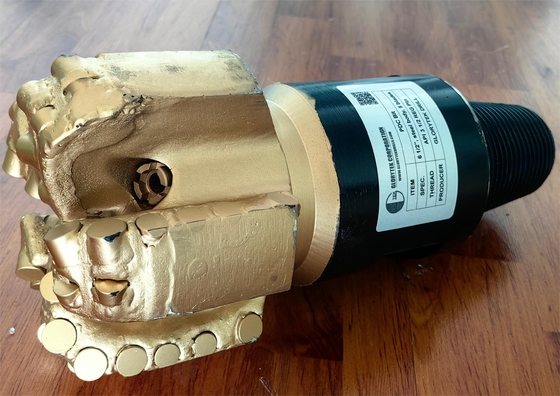

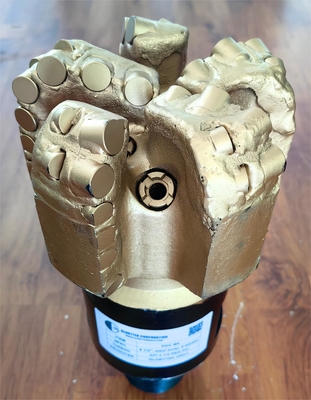

1. Description
The PDC bit is short for polycrystalline compact diamond bits. It is made up of tough, anti-friction matrix and gauge reinforcement. The PDC coring bit is suitable in homogeneous soft to medium sedimentary forms.
2. Product Parameters
|
Bit Type
|
6"
|
|
IADC Code
|
M423
|
|
Blade
|
5
|
|
Cutter Size (mm)
|
Φ13MM
|
|
Nozzle Qty/Type
|
5
|
|
Nozzle Qty/Type
|
3NZ
|
|
Gauge Length
|
1.5"
|
|
Connection
|
3-1/2" API REG
|
|
Make up Torque(KN.m)
|
10.4~11.4
|
|
Rotary Speed(rpm)
|
60-260
|
|
Weight on Bit(KN)
|
8-50
|
|
Max.WOB(KN)
|
90
|
|
Flow Rate(lps)
|
10-30
|
|
|
|
|
Above are regular sizes for your reference. Size can be customized as per your requirement.
|
3.Feature
a.There are several sizes of PDC cutters with high productivity and long service life.
b.Wearing cutters can be replaced to be utilized again.
c.PDC coring bits are of all standard drilling sizes and many region-specific sizes.
◆Steel Body PDC Drill Bit
Are made from high alloy steel and are easy to repair. Depending upon the application they are being used in, steel body PDC drill bits can be quite good for multiple runs.
◆Matrix Body PDC Drill Bit
Are known for providing improved wear resistance and erosion. As far as the cutter count is concerned, they are usually a heavier set than their steel body counterparts. Offering longer life and multiple bit runs, matrix body drill bits are best suited for applications of high volume or high sand.
4.Specifications
PDC Drill Bit
This PDC drill bit is a fixed pattern with a designed type of matrix on the top and equipped with natural diamonds on both sides. There are two types of the PDC drill bits: coring and non-coring drill bits. They are used to drill coal, gas and oil in soft to medium hard forms. The PDC drill bits consist of: 28mm, 32mm, 42mm, 45mm, 48mm, 56mm, 65mm, 76mm, 85mm, 96mm, 99mm, 114mm, and 123mm. The thread is NW male thread. Samples are available.
Related drill bit
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
we have designed and made PDC drill bits for oil and gas industry, and still continue to innovate while using top of the line degree of workmanship and skill to make sure every hole opener as well as drill bit is crafted for your use and requirement to perfection by our experienced professionals.
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
Q: Which kind pf application can be used for PDC bit?
A: Mining, tunnel, foundation pit, quarry, oil, well, etc.
Q: Do you have different type for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different type respectively.
Q:Are you Manufacture or Factory?
A:Yes we have our own factory.
Q:What the MOQ?
A. 1pc.
Q:How to place an order?
A. Inform size and model/main usage/quantity
Q:What is the Payment?
A. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
We also can accept L/C AT SIGHT if the quantity is large.
