1. Description
a.Size:27mm-559mm
b.All sizes of Steel and Matrix PDC Bits designed for Directional, Oil and Gas, Environmental, Waterwell, Workover, HDD, Construction, Geothermal. We offer complete rebuild of used PDC Bits as well.
c.Reliable quality and best price
d.Matrix body and steel body
e.MQO:1 set
In right formation & application, PDC can drill as twice fast as tricone or even more. You can save tons of time & money. But should you change your tricone bit to PDC bits. This article will give you a general idea to start consideration.
2. Product Parameters
| Bit Type |
8-1/2" |
8-1/2" |
| IADC Code |
M432
M332 |
M323 |
| Blade |
6 |
8 |
| Cutter Size (mm) |
16MM |
13MM |
| Nozzle Qty/Type |
13.2 |
9.6 |
| Nozzle Qty/Type |
6NZ |
4NZ |
| Gauge Length |
2.2" |
2" |
| Connection |
4-1/2" API REG |
4-1/2" API REG |
| Make up Torque(KN.m) |
24.1~26.5 |
24.1~26.5 |
| Rotary Speed(rpm) |
60-260 |
60-260 |
| Weight on Bit(KN) |
20-100 |
20-100 |
| Max.WOB(KN) |
130 |
130 |
| Flow Rate(lps) |
22-35 |
22-35 |
|
|

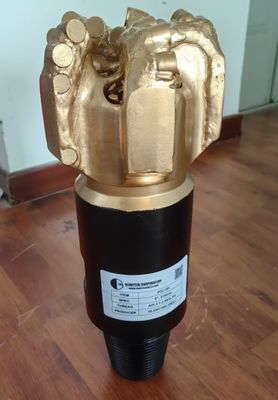

3.PDC Bit
PDC Drag Bit
PDC Drag bits work well for drilling in plastic and brittle formations like mudstone, muddy sandstone, shale, etc. as well as soft to moderately soft soils.
PDC non-coring Bit
4.Application
PDC drill bits are used in a wide range of oil and gas well drilling applications, including:
Vertical wells
Horizontal wells
Directional wells
Multilateral wells
Geothermal wells
Water wells
Related drill bit
PDC bits, drag bits, rock bits and other drill bits for:
Geo Exchange / Geothermal
Geo Technical
Water Well
Seismic and Mining
Horizontal Directional Drilling
Frac Plug Drilling
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
we have designed and made PDC drill bits for oil and gas industry, and still continue to innovate while using top of the line degree of workmanship and skill to make sure every hole opener as well as drill bit is crafted for your use and requirement to perfection by our experienced professionals.
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
Q: Which kind pf application can be used for PDC bit?
A: Mining, tunnel, foundation pit, quarry, oil, well, etc.
Q: Do you have different type for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different type respectively.
Q:Are you Manufacture or Factory?
A:Yes we have our own factory.
Q:What the MOQ?
A. 1pc.
Q:How to place an order?
A. Inform size and model/main usage/quantity
Q:What is the Payment?
A. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
We also can accept L/C AT SIGHT if the quantity is large.
