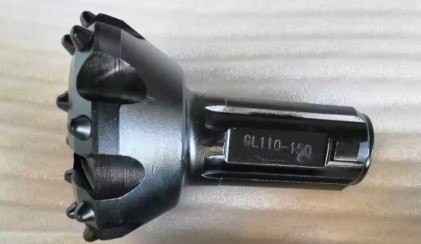

Low Air Pressure GL110 Mining DTH Hammer Carbide Drill Bits
Product Details:
Bit Face Shape Selection:
Flat face Concave face Convex face
Description:
Our company is dedicated in drilling line for many years to produce drilling equipment and drilling tools. For DTH rock hammer and bits, we have
♦ Bits for Low Pressure DTH Hammers
♦ Bits for Medium & High Pressure DTH Hammers
♦ Bits for High Efficiency High Pressure DTH Hammers
♦ Bits for Through Reverse Circulation DTH Hammers
Drill bit shank:
CIR, DHD, QL,SD,Mission, etc. series of Atlas and Sandvik etc.
Specifications:
----Type and Technical Specification of Bits for Low Pressure DTH Hammers ▼
|
Type
|
Number of Air hole
|
DIa.(mm)
|
Weight(kg)
|
Gauge Button
|
Front Button
|
Matching DTH Hammer
|
|
GL65PQ
|
1
|
68-72
|
1.5
|
4×ф12
|
3×ф12
|
GL65
|
|
GL75PQ
|
3
|
75-77
|
2.4
|
5×ф12
|
3×ф12
|
GL70
|
|
GL76PQ
|
2
|
76-78
|
2.5
|
5×ф12
|
3×ф12
|
GL76
|
|
GL76-78
|
2
|
78-82
|
2.6
|
5×ф12
|
3×ф12
|
|
GL80PQ
|
3
|
82-84
|
3
|
5×ф12
|
6×ф12
|
GL80 /80X
|
|
GL90A
|
3
|
90-95
|
3.6
|
6×ф14
|
4×ф12
|
|
GL80XD-90
|
3
|
90-95
|
3.4
|
6×ф12
|
4×ф12
|
GL80XD
|
|
GL80-II-80
|
3
|
80-82
|
3
|
5×ф12
|
4×ф12
|
GL80-II
|
|
GL90B
|
3
|
90-95
|
3.8
|
6×ф14
|
4×ф12
|
|
|
GL90T1
|
2
|
90-95
|
3.6
|
6×ф14
|
1×ф12
|
|
3×ф12
|
|
GL90T2
|
2
|
90-95
|
3.8
|
6×ф14
|
4×ф12
|
|
GL90T3J
|
3
|
90-95
|
3.6
|
6×ф14
|
4×ф12
|
|
GL90T5
|
2
|
90-95
|
3.6
|
5×ф14
|
4×ф12
|
|
GL90-100
|
3
|
100-105
|
4
|
6×ф14
|
5×ф12
|
|
GL90-105
|
3
|
105-110
|
4.2
|
6×ф14
|
5×ф12
|
|
GL90-110
|
3
|
110-115
|
4.5
|
8×ф14
|
3×ф12
|
|
GL90-120
|
3
|
120-125
|
5
|
8×ф14
|
3×ф12
|
|
GL90-130
|
3
|
130-135
|
6.8
|
9×ф14
|
4×ф12
|
|
GL110-110
|
3
|
110-115
|
6.1
|
6×ф14
|
5×ф12
|
|
|
GL110-115
|
3
|
110-115
|
6.3
|
6×ф14
|
5×ф12
|
|
GL110-120
|
3
|
120-125
|
7
|
6×ф14
|
6×ф12
|
|
GL110-125
|
3
|
125-130
|
7.1
|
6×ф14
|
7×ф12
|
|
GL110-130
|
3
|
130-135
|
7.3
|
6×ф14
|
7×ф12
|
|
GL110-135
|
3
|
135-140
|
8
|
6×ф14
|
7×ф12
|
|
GL110-140
|
3
|
140-145
|
8.2
|
6×ф14
|
8×ф12
|
|
GL110-150
|
3
|
150-155
|
9
|
6×ф14
|
8×ф12
|
|
GL150-155
|
3
|
155-160
|
16.3
|
15×ф16
|
4×ф14
|
GL150
|
|
GL150-165
|
3
|
160-165
|
17.3
|
15×ф16
|
5×ф14
|
|
GL150-185
|
3
|
180-185
|
19.6
|
15×ф16
|
6×ф14
|
|
GL150-200
|
3
|
200-205
|
23
|
9×ф16
|
12×ф14
|
|
GL170-175
|
3
|
175-180
|
22.8
|
15×ф16
|
8×ф14
|
GL170
|
|
GL170-185
|
3
|
185-190
|
23.24
|
15×ф16
|
8×ф14
|
|
GL170-195
|
3
|
195-198
|
24
|
15×ф16
|
10×ф14
|
|
GL170-200
|
3
|
200-203
|
25.8
|
15×ф16
|
9×ф14
|
|
GL170-210
|
3
|
210-213
|
26.5
|
12×ф16
|
6×ф14
|
|
6×ф16
|
|
GL170-220
|
3
|
220-223
|
28.5
|
15×ф16
|
11×ф14
|
|
GL170-230
|
3
|
230-233
|
32
|
15×ф16
|
12×ф14
|
|
GL170-240
|
3
|
240-243
|
36
|
21×ф16
|
6×ф14
|
|
GL170-250
|
3
|
250-253
|
45
|
15×ф16
|
4×ф14
|
|
|
Related Product
We can also support other drilling tools:
Get ready to embark on a thrilling drilling adventure with our top-notch tricone drill bits, DTH hammer bits, diamond drills, and well drilling bits.
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we have drilling equipment like rigs, mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100% advance payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
