Product Description:
Designed and manufactured for well inspectors, drillers, hydrogeologists and other professionals who need to view the condition of wells, drains, boreholes, vertical wells and open water.

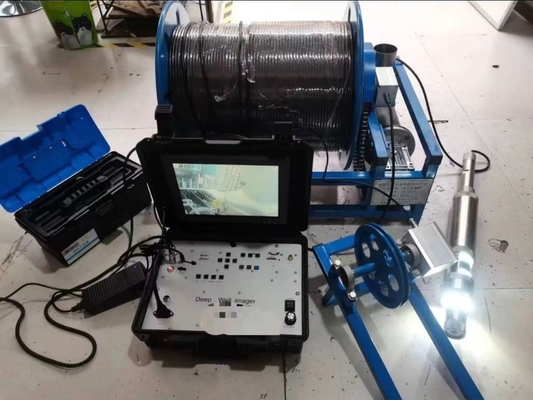

●Main control box
*APS main control box, size: 415 * 340 * 144*Voltage input: 12V / 220V
*Depth interface: connect depth sensor
*Probe interface: connect the probe to transmit video and power
*Display: 12 inch bright LED display for outdoor viewing
*It can record, capture photos and input by keyboard
*The USB flash disk stores video files and can be played back on site.
*Video 8 times magnification.
*One click switching video display

●Monitor
*12 inch BNC / VGA / HDMI / USB industrial control display:
*Size 280 × one hundred and eighty x 40mm
*Aspect ratio: 16:10
*Contrast: 450:1
*Brightness: 500CD / m2
*Resolution: 1280 * 800

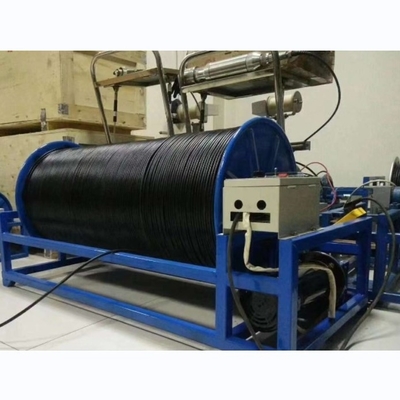

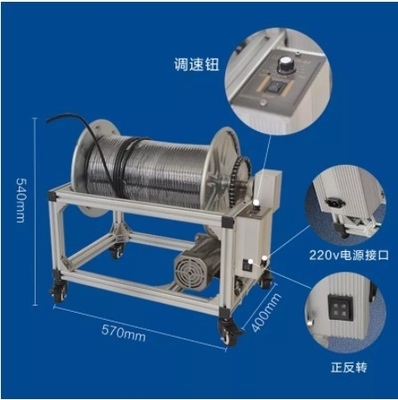

●Winch

*Manual winch or electric winch (optional)
*Winch: stamping reinforced wire stop reel
*Winch frame: aluminum profile, iron (optional)

●Dual camera

*Camera material: 304 stainless steel
*Camera size: Φ 73mm
*Camera lens material: front high transparent quartz glass Side end quartz glass effectively prevents abrasion
*Camera pixel: Sony CCD camera
*Lens angle: 120 degrees
*Camera lamp: front highlight LED lamp bead, side mounted LED strong light source lamp bead (adjustable brightness)
*Probe withstand voltage: withstand voltage 20MPa, and the maximum withstand voltage depth can reach 2000m
*The side camera can rotate 360 degrees forward and backward indefinitely

Technical Parameters:


Packing&Delivery:
Packing: Non-fumigation wooden box.
Delivery: Normally 7-10 days after your down payment. Shipping by sea, air or express are all available.
