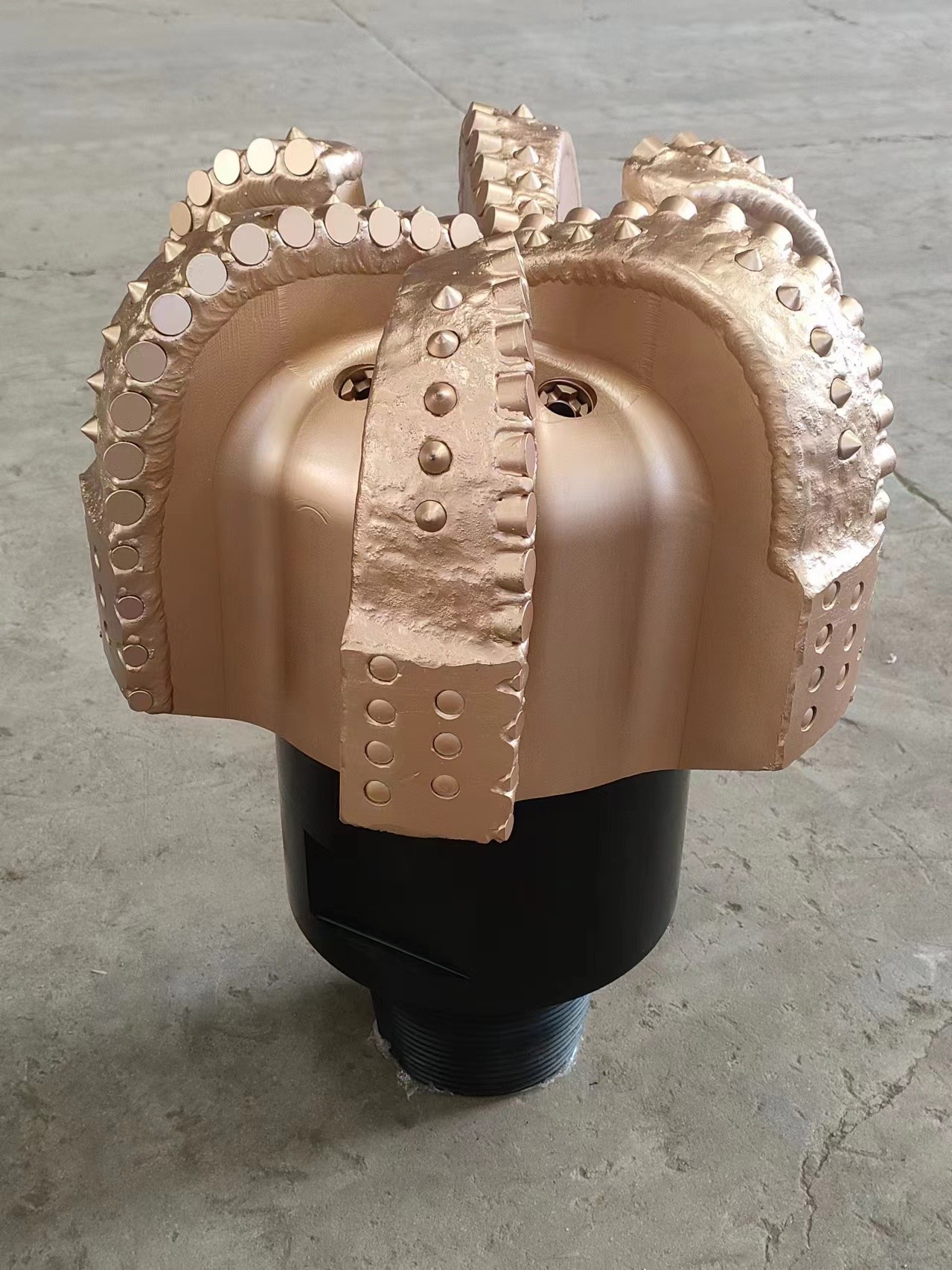

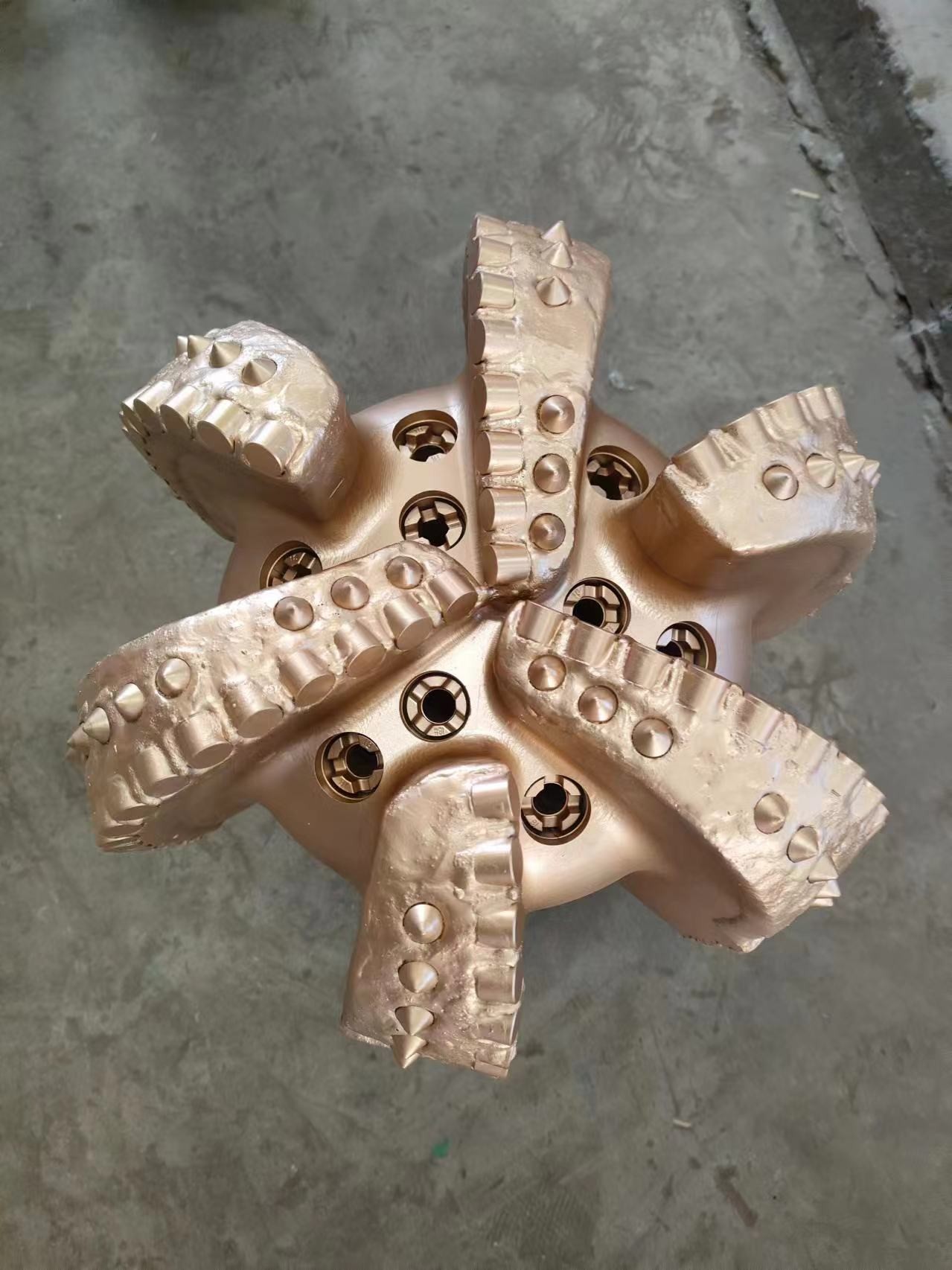

Name: 17 1/2 Inch API Standard 6 Wing Pdc Bit Geothermal Well Drilling
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 17 1/2inch 6-wing
Price: 8,250.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Customized:: Customized

API: 2 3/8"~7 5/8"

Type:: Drilling Tool

Material:: Steel/matrix Body

Usage:: Oil,Gas,Wells,Coal Mining

Api: 2 3/8

Nozzle Qty: 8 NZ

Package Type: Fumigation Free Wooden Box

Durability: High Durability

Bearing Type: Journal Or Roller

Item: PDC Bit

Warranty: 3 Months

Applicable Industries: Construction Works , Energy & Mining

Machine Type: Drilling Tool

Thread Connection: 7 5/8

Cutting Angle: Various Angles

Cutter: 16mm

Highlight:

17 1/2 inch PDC Drill Bit

API standard PDC Drill Bit

6 wing PDC Drill Bit

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: 17 1/2inch 6-wing

Payment & Shipping Terms

Packaging Details: seaworthy package

Delivery Time: 10-20days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 3000 piece per month

Gallery

17 1/2 Inch API Standard 6 Wing Pdc Bit Geothermal Well Drilling

Product Description

PDC Drill Bit

Product Description

1.PDC bits are used in various drilling operations, including oil and gas exploration, geothermal drilling, and mining.
2.PDC bits can be customized with different cutter sizes, shapes, and configurations to optimize drilling performance.
3.The use of PDC bits can significantly reduce drilling time and increase overall drilling efficiency.

17 1/2 Inch API Standard 6 Wing Pdc Bit Geothermal Well Drilling 0

Technical Parameter

Size	17 1/2"
Number of Nozzles	8
Number of Blades	6
Total Number of Cutters	29
Primary Cutter Size	13mm
API Pin Connection	7 5/8" API Reg
Weight on Bit	280kg

Company Profile

Glorytek Industry (Beijing)Co.,Ltd., based in Beijing, China, specializes in manufacturing and exporting high-quality drilling equipment and parts for mining, water well drilling, exploration, and various engineering projects. Our experienced team of designers and engineers ensures successful project completion according to clients' specific requirements. Our products are widely used in diverse sectors such as oil and gas, hydropower, national defense, and underwater rock drilling.

17 1/2 Inch API Standard 6 Wing Pdc Bit Geothermal Well Drilling 1

17 1/2 Inch API Standard 6 Wing Pdc Bit Geothermal Well Drilling 2

FAQ

Q1: Do you have after-sales service?
A1:Yes.For the drilling machine,we provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.

Q2: What about the delivery time?
A2:Witnin 7-10days,it is acccording to your order and pls consult us and confirme.

Q3. What's your standard trade terms ?
A3: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4: What is your packaging condition?
A4: Usually, we use the standard export wooden box for LCL cargo or FCL in 20/40GP container.
