Name: 14 3/4 Inch PCD Drill Bit API Standard 6 Baldes High Quality
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 14 3/4inch
Price: 6,150.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Customized:: Customized

Advantage: High-Efficiency ,Wear Resistant

Connect Thread: API Or Reg Or Customized

Material:: Steel And Matrix

Usage:: HDD Drilling

Gauge Length: 55mm

Packing: Wooden Box, Carton

Wings: 6 Wings

Cutters Size: 16mm

Torque: High

Market: USA Russia Middle East Asia

Quality: High Quality

Keyword: 6 Wings PDC Drill Bits

Api: 7 5/8

Cutting Structure: Matrix Or Steel Body

Application: Coal Mining Etc.

Highlight:

6 baldes pdc drill bit

High Quality pdc drill bit

14 3/4inch pdc drill bit

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: 14 3/4inch

Payment & Shipping Terms

Packaging Details: seaworthy package

Delivery Time: 14-21days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 3800 piece per month

Gallery

14 3/4 Inch PCD Drill Bit API Standard 6 Baldes High Quality

Product Description

PDC Drill Bit

Product Description

1.PDC bits are used in various drilling operations, including oil and gas exploration, geothermal drilling, and mining.
2.PDC bits can be customized with different cutter sizes, shapes, and configurations to optimize drilling performance.
3.The use of PDC bits can significantly reduce drilling time and increase overall drilling efficiency.
4.PDC bits are less prone to wear and damage compared to traditional roller cone bits.

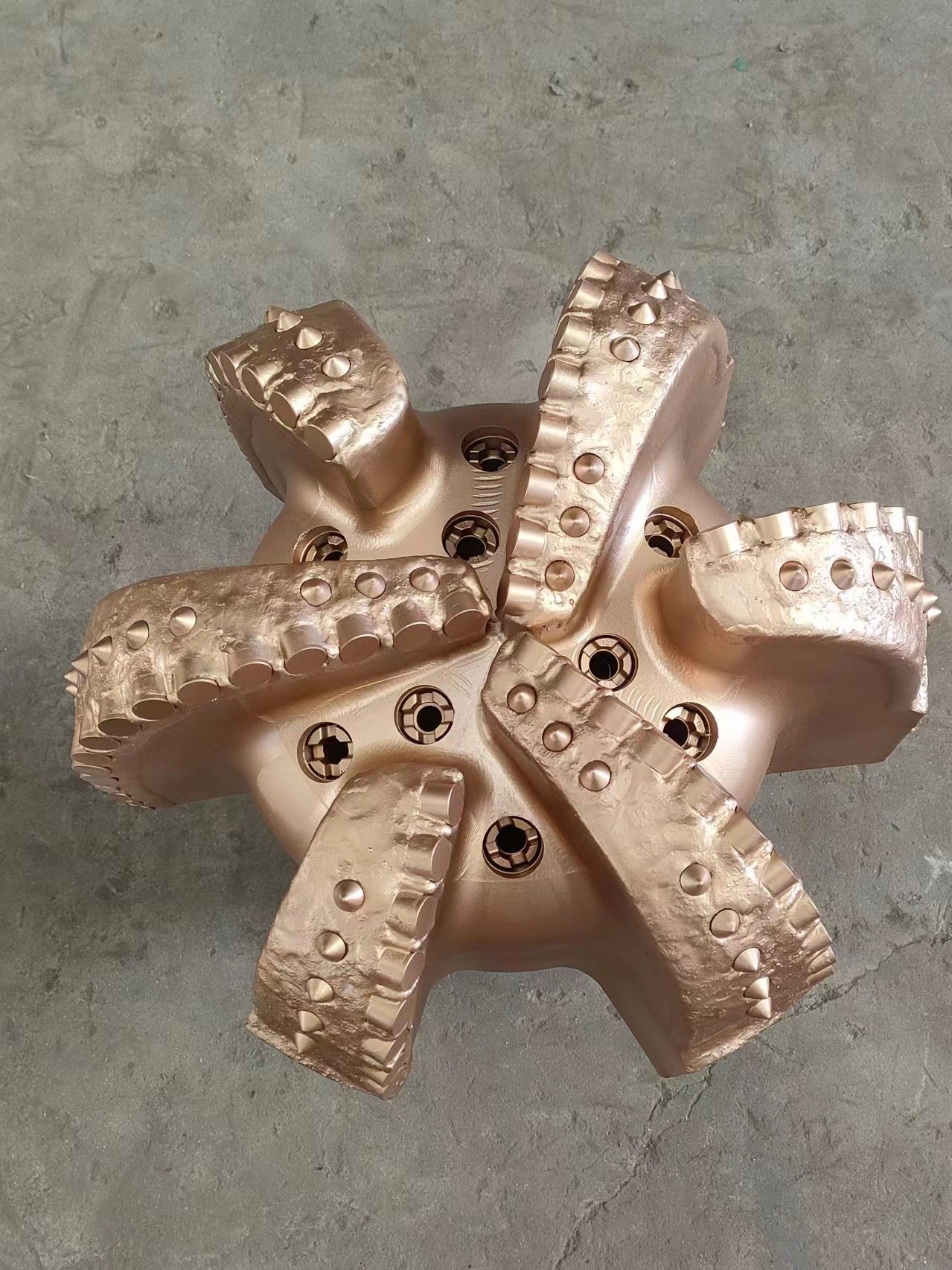

14 3/4 Inch PCD Drill Bit API Standard 6 Baldes High Quality 0

Technical Parameter

Bit Type	6"	8-1/2"	8-1/2"	12-1/4"	Bit Type	17-1/2" GM1606T
IADC Code	M423	M432 M332	M323	M432 M332	IADC Code	M323
Blade	5	6	8	6	Blade	6
Cutter Size (mm)	Φ13 MM	Φ16 MM	Φ13 MM	Φ16MM	Cutter Size (mm)	Φ16MM;Φ13MM
Nozzle Qty/Type	5	13.2	9.6	30.78	Cutter Qty	Φ16×58;Φ13×81
Nozzle Qty/Type	3NZ	6NZ	4NZ	6NZ	Nozzle Qty/Type	8NZ
Gauge Length	1.5"	2.2"	2"	2.5"	Gauge Length (mm)	110
Connection	3-1/2" API REG	4-1/2" API REG	4-1/2" API REG	6-5/8" API REG	Connection	7-5/8" API REG
Make up Torque(KN.m)	10.4~11.4	24.1~26.5	24.1~26.5	51.7~56.9	N.W./ G.W.(KG)	338/388
Rotary Speed(rpm)	60-260	60-260	60-260	60-260	Nozzle Size (inch)	10/32
Weight on Bit(KN)	8-50	20-100	20-100	30-140	Rotary Speed(Rpm)	60-260
Max.WOB(KN)	90	130	130	180	Weight On Bit(KN)	30-200
Flow Rate(lps)	10-30	22-35	22-35	38-70	Max.WOB (KN)	240
					Flow Rate(lps)	45-80

Company Profile

Glorytek Industry ( Beijing) Co., Ltd located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

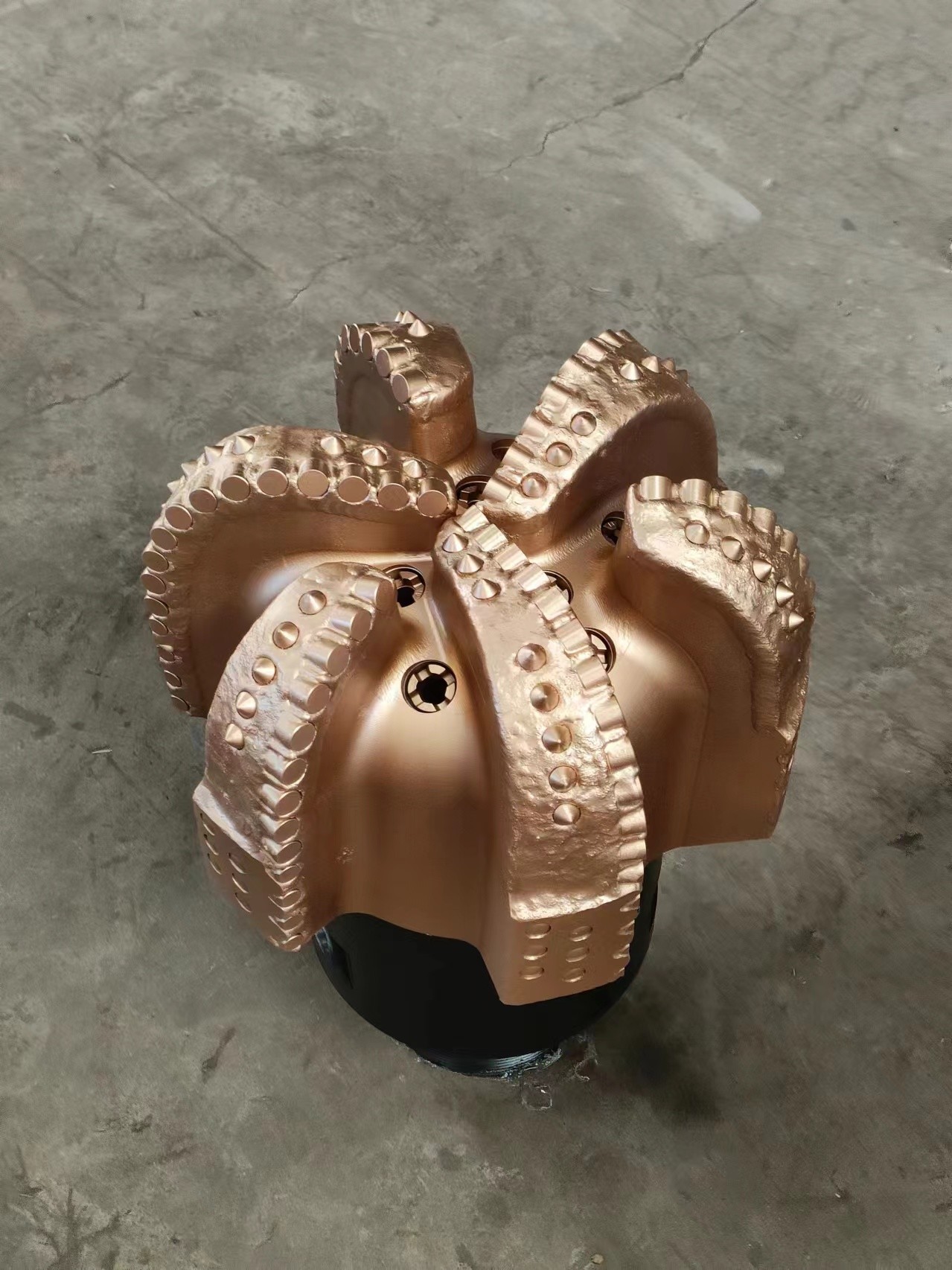

14 3/4 Inch PCD Drill Bit API Standard 6 Baldes High Quality 1

14 3/4 Inch PCD Drill Bit API Standard 6 Baldes High Quality 2

FAQ

Q: Are you manufacturer or trading company?

A: We are professional manufacturer with 20+ years experience.

Q: Which kind pf application can be used for tricone bit?

A: Mining, hdd drilling, foundation pit, quarry, oil, well, etc.

Q: What is the MOQ?
A. The MOQ is 1 Piece

Q: What is the payment terms?

A: We can accept payment by T/T, Credit Card, West Union etc.
