Name: 17 1/2inch 6-blade New Pdc Drill Bit Oil Well Drilling Bits Geothermal Drilling
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 17 1/2'' 6balde
Price: 9,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Customized:: Customized

API: 2 3/8"~7 5/8"

Type:: Drilling Tool

Material:: Steel/matrix Body

Usage:: Oil,Gas,Wells,Coal Mining

Size Available: 17 1/2'', All Kinds

Blades: 6 Blades

Rotory Speed: 60-350RPM

Usage: Geothermal Drilling

Thread: 7 5/8

Nozzle Qty: 8NZ

Package Type: Fumigation Wooden Box Or Iron Box

Cutting Edge Style: Straight

Quality: High Quality

Standard: API

Market: Global

Highlight:

geothermal drilling pdc drill bits

17 1/2inch pdc drill bits

6-blade pdc drill bits

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: 17 1/2'' 6balde

Payment & Shipping Terms

Packaging Details: seaworthy package

Delivery Time: 15-25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 3500 piece per month

Gallery

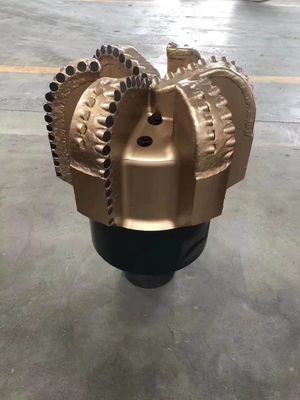

17 1/2inch 6-blade New Pdc Drill Bit Oil Well Drilling Bits Geothermal Drilling

Product Description

PDC Drill Bit

Product Description

1.PDC bits are designed to withstand high-temperature and high-pressure drilling environments.The use of PDC bits can result in smoother wellbores and reduced wellbore instability issues.
2.PDC bits are suitable for both vertical and horizontal drilling applications.These bits are compatible with various drilling fluids, including water-based, oil-based, and synthetic muds.
3.PDC bits are capable of drilling through various formations, including shale, limestone, sandstone, and dolomite.

17 1/2inch 6-blade New Pdc Drill Bit Oil Well Drilling Bits Geothermal Drilling 0

Technical Parameter

Bit Type	6"	8-1/2"	8-1/2"	12-1/4"	Bit Type	17-1/2" GM1606T
IADC Code	M423	M432 M332	M323	M432 M332	IADC Code	M323
Blade	5	6	8	6	Blade	6
Cutter Size (mm)	Φ13 MM	Φ16 MM	Φ13 MM	Φ16MM	Cutter Size (mm)	Φ16MM;Φ13MM
Nozzle Qty/Type	5	13.2	9.6	30.78	Cutter Qty	Φ16×58;Φ13×81
Nozzle Qty/Type	3NZ	6NZ	4NZ	6NZ	Nozzle Qty/Type	8NZ
Gauge Length	1.5"	2.2"	2"	2.5"	Gauge Length (mm)	110
Connection	3-1/2" API REG	4-1/2" API REG	4-1/2" API REG	6-5/8" API REG	Connection	7-5/8" API REG
Make up Torque(KN.m)	10.4~11.4	24.1~26.5	24.1~26.5	51.7~56.9	N.W./ G.W.(KG)	338/388
Rotary Speed(rpm)	60-260	60-260	60-260	60-260	Nozzle Size (inch)	10/32
Weight on Bit(KN)	8-50	20-100	20-100	30-140	Rotary Speed(Rpm)	60-260
Max.WOB(KN)	90	130	130	180	Weight On Bit(KN)	30-200
Flow Rate(lps)	10-30	22-35	22-35	38-70	Max.WOB (KN)	240
					Flow Rate(lps)	45-80

Company Profile

Glorytek Industry (Beijing)Co.,Ltd., based in Beijing, China, is a leading manufacturer and exporter of high-quality drilling equipment and parts. With a highly experienced team of designers and engineers, we successfully deliver projects tailored to our clients' requirements. Our products find extensive use in mining, water well drilling, exploration, anchor grouting, side slope protection, oil and gas, underwater rock drilling, hydropower, and national defense projects.

17 1/2inch 6-blade New Pdc Drill Bit Oil Well Drilling Bits Geothermal Drilling 1

17 1/2inch 6-blade New Pdc Drill Bit Oil Well Drilling Bits Geothermal Drilling 2

FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we
have drilling equipments like rigs, mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100%
advance payment after purchase order by T/T for small orders.

Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.

Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out
