Name: 6 1/2'' IADC837 High Quality High Drill Ability Tricone Bit For Oil Exploration
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: 6 1/2'' IADC837
Price: 1,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Tricone Bit

Customized:: Customized

Type:: Core Drill Bit

Usage:: Well Drilling

Material:: High Speed Steel

Transport Package: Seaworthy Packing

Specification: Various Sized Can Be Selected.

Application: Soft To Medium Formation

Material: Carbide Tricone Bit

Tci: Tungsten Carbide Insert

Size: 6 1/2 Inches

Type Of Machine: Drilling Tools Tricone Bit

Color: Black, Blue, Red, Etc.

Advantage: High Efficiency Tricone Bit

Model: Rock Bit

Projects: Geothermal Well Drilling

Highlight:

Oil Exploration Tricone Bit

IADC837 Tricone Bit

High Drill Ability Tricone Bit

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE

Model Number: 6 1/2'' IADC837

Payment & Shipping Terms

Packaging Details: seaworthy package

Delivery Time: 7-15days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 8000 piece per month

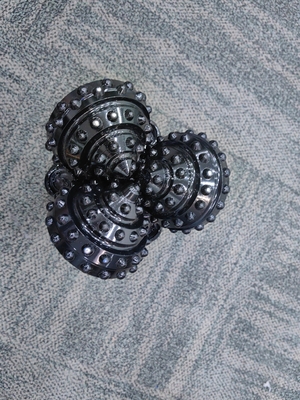

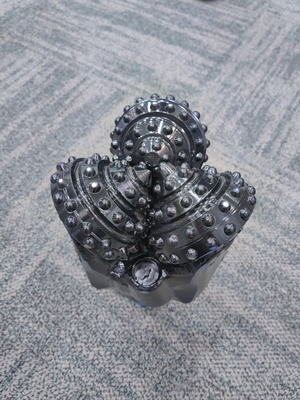

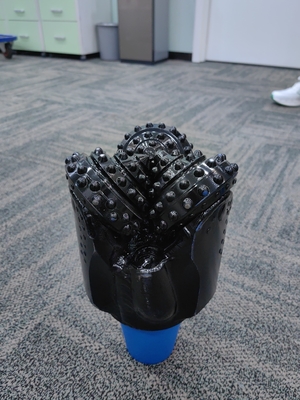

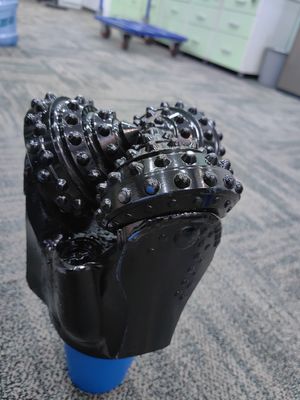

Gallery

6 1/2'' IADC837 High Quality High Drill Ability Tricone Bit For Oil Exploration

Product Description

TCI Tricone Bit

Product Description

---- Cutting Structure
Steel Tooth: Premium tungsten carbide hard facing on the surface, it's greatly enhance the wear resistance of the tooth.
Tungsten Carbide Inserts: Various type high quality tungsten carbide inserts can be equipped on the bits, professional and
scientific selection of the inserts as per the different application and drilling process to achieve high efficient drilling
production.
---- Gauge Structure
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
---- Bearing Structure
Journal bearing and roller bearing types are available to be chosen. Abrasion & seizure resistance, loading capacity, stability of the bearing are well improved, suitable for high speed rotary drilling.
---- Seals and Lubrication
Premium O-ring, Optimal seal compression and curved seal structure can enhance the seal performance. Pressure difference type compensating system assures a good greasing lubrication function.
---- IADC vary from 114--637 applicable for different type formation and different drilling rotary speed.

6 1/2'' IADC837 High Quality High Drill Ability Tricone Bit For Oil Exploration 0

Technical Parameter

Product	Tricone Bit
Model	TCI BIT, STEEL TOOTH BIT
IADC CODE	116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
IADC CODE	417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535
Available sizes	From 2 7/8 to 26" larger sizes for hole opener bit ,reamer bit
Advantage	most favorable price and best quality
Bearing type	sealed bearing and non-sealed bearing metal sealed journal bearing rubber sealed journal bearing aircooled bearing type
Formation or layer	Soft, medium soft, hard, medium hard, very hard formation
Button size (extra features)	Button bit, saw teeth 1) Y-Conical teeth 2) X-chisel teeth 3) K- wide teeth 4) G- Gauge protection
Packing	Wooden case
Delivery terms	By sea or by air
Market	Market
Application	Petroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work

Our Company

6 1/2'' IADC837 High Quality High Drill Ability Tricone Bit For Oil Exploration 1

Glorytek Industry (Beijing) Co., Ltd, based in Beijing, China, is a leading manufacturer and exporter of high-quality drilling equipment and parts. With a highly experienced team of designers and engineers, we successfully deliver projects tailored to our clients' requirements. Our products find extensive use in mining, water well drilling, exploration, anchor grouting, side slope protection, oil and gas, underwater rock drilling, hydropower, and national defense projects.

6 1/2'' IADC837 High Quality High Drill Ability Tricone Bit For Oil Exploration 2

6 1/2'' IADC837 High Quality High Drill Ability Tricone Bit For Oil Exploration 3

FAQ

Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.

Q: Which kind pf application can be used for tricone bit?
A: Mining, hdd drilling, foundation pit, quarry, oil, well, etc.

Q: What is the MOQ?
A. The MOQ is 1 Piece

Q: What is the payment terms?
A: We can accept payment by T/T, Credit Card, West Union etc.
