Manufacturing Customization Support 6 1-2inch Matrix Body PDC Drill Bits for Well Drilling
Detailed drawing
1.Types of PDC Bits

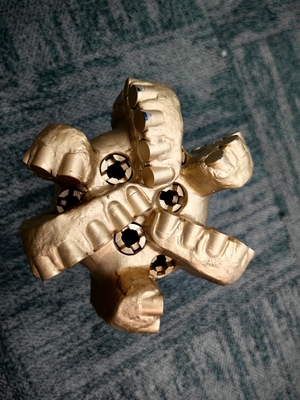

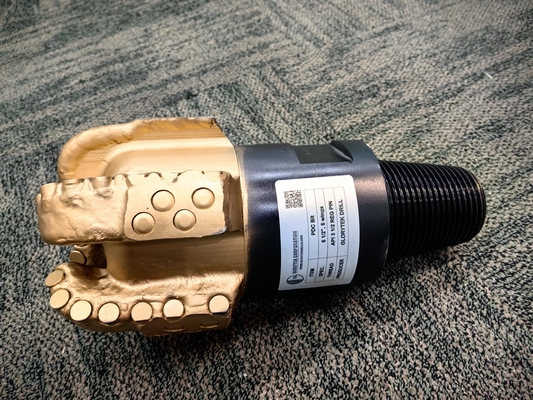

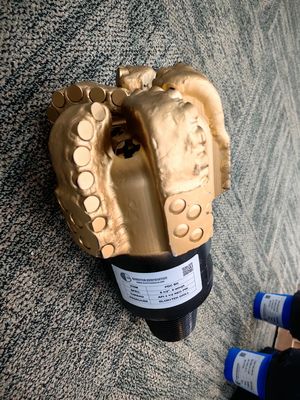

Matrix Body PDC Bits
“Matrix” is a very hard, rather brittle composite material comprising tungsten carbide grains metallurgically bonded with a softer, tougher, metallic binder. Matrix is desirable as a bit material because its hardness is resistant to abrasion and erosion. It is capable of withstanding relatively high compressive loads, but, compared with steel, has low resistance to impact loading.
Steel Body PDC Bits
Steel is the opposite of matrix. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance. Steel bodies are considerably stronger than matrix bodies.
We are a PDC bits supplier. If you are interested in our products, please contact us now!
2. Product Parameters
|
Bit Type
|
6"
|
8-1/2"
|
8-1/2"
|
12-1/4"
|
Bit Type
|
17-1/2" GM1606T
|
|
IADC Code
|
M423
|
M432
M332
|
M323
|
M432 M332
|
IADC Code
|
M323
|
|
Blade
|
5
|
6
|
8
|
6
|
Blade
|
6
|
|
Cutter Size (mm)
|
Φ13MM
|
Φ16MM
|
Φ13MM
|
Φ16MM
|
Cutter Size (mm)
|
Φ16MM;Φ13MM
|
|
Nozzle Qty/Type
|
5
|
13.2
|
9.6
|
30.78
|
Cutter Qty
|
Φ16×58;Φ13×81
|
|
Nozzle Qty/Type
|
3NZ
|
6NZ
|
4NZ
|
6NZ
|
Nozzle Qty/Type
|
8NZ
|
|
Gauge Length
|
1.5"
|
2.2"
|
2"
|
2.5"
|
Gauge Length (mm)
|
110
|
|
Connection
|
3-1/2" API REG
|
4-1/2" API REG
|
4-1/2" API REG
|
6-5/8" API REG
|
Connection
|
7-5/8" API REG
|
|
Make up Torque(KN.m)
|
10.4~11.4
|
24.1~26.5
|
24.1~26.5
|
51.7~56.9
|
N.W./ G.W.(KG)
|
338/388
|
|
Rotary Speed(rpm)
|
60-260
|
60-260
|
60-260
|
60-260
|
Nozzle Size (inch)
|
10/32
|
|
Weight on Bit(KN)
|
8-50
|
20-100
|
20-100
|
30-140
|
Rotary Speed(Rpm)
|
60-260
|
|
Max.WOB(KN)
|
90
|
130
|
130
|
180
|
Weight On Bit(KN)
|
30-200
|
|
Flow Rate(lps)
|
10-30
|
22-35
|
22-35
|
38-70
|
Max.WOB (KN)
|
240
|
|
|
|
|
|
|
Flow Rate(lps)
|
45-80
|
|
Above are regular sizes for your reference. Size can be customized as per your requirement.
|
|
|
3.Recommended Rock Formation
PDC drill bits have high adaptability and flexibility. It can be customized according to different geological characteristics and drilling needs to adapt to various complex and ever-changing drilling environments. Whether it's oil drilling, geothermal exploration, or mining, PDC drill bits can find the most suitable solution.
4.Application
●The toughest formations oil and gas wells are drilled successfully by our clients
●Unconventional oil and gas wells
●Improve ROP and longer lasting drill bits and also lower costs
Related drill bit
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
we have designed and made PDC drill bits for oil and gas industry, and still continue to innovate while using top of the line degree of workmanship and skill to make sure every hole opener as well as drill bit is crafted for your use and requirement to perfection by our experienced professionals.
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
Q: Which kind pf application can be used for PDC bit?
A: Mining, tunnel, foundation pit, quarry, oil, well, etc.
Q: Do you have different type for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different type respectively.
Q:Are you Manufacture or Factory?
A:Yes we have our own factory.
Q:What the MOQ?
A. 1pc.
Q:How to place an order?
A. Inform size and model/main usage/quantity
Q:What is the Payment?
A. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
We also can accept L/C AT SIGHT if the quantity is large.
