Manufacturing Customization Support 6 1-2inch Matrix Body PDC Drill Bits for Well Drilling

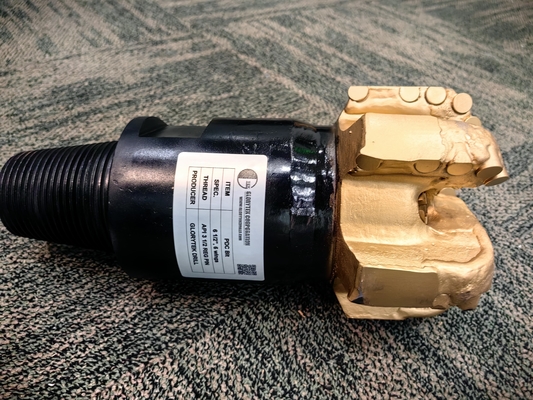

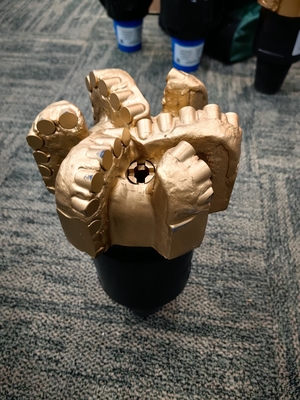

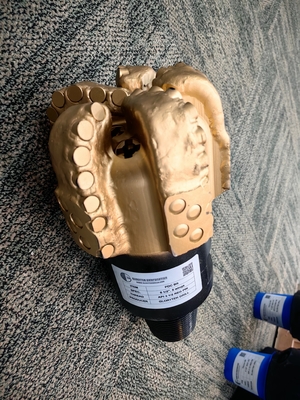

Detailed drawing
1.Features of PDC Bit
● Better Durability
Premium 6-level wing design is more durable than 3-level.
Gage pads have tungsten carbide inserts for maximum wear resistance
All cutters are premium quality to extend drill life and durability
● Asymmetric Force Balance Design
Cutter layout is force balanced to drill precise round holes and reduce drill spin
● Thread Versatility
Available in a variety of threads and sizes
We are a PDC bits supplier. If you are interested in our products, please contact us now!
2. Product Parameters
|
Bit Type
|
6"
|
8-1/2"
|
8-1/2"
|
12-1/4"
|
Bit Type
|
17-1/2" GM1606T
|
|
IADC Code
|
M423
|
M432
M332
|
M323
|
M432 M332
|
IADC Code
|
M323
|
|
Blade
|
5
|
6
|
8
|
6
|
Blade
|
6
|
|
Cutter Size (mm)
|
Φ13MM
|
Φ16MM
|
Φ13MM
|
Φ16MM
|
Cutter Size (mm)
|
Φ16MM;Φ13MM
|
|
Nozzle Qty/Type
|
5
|
13.2
|
9.6
|
30.78
|
Cutter Qty
|
Φ16×58;Φ13×81
|
|
Nozzle Qty/Type
|
3NZ
|
6NZ
|
4NZ
|
6NZ
|
Nozzle Qty/Type
|
8NZ
|
|
Gauge Length
|
1.5"
|
2.2"
|
2"
|
2.5"
|
Gauge Length (mm)
|
110
|
|
Connection
|
3-1/2" API REG
|
4-1/2" API REG
|
4-1/2" API REG
|
6-5/8" API REG
|
Connection
|
7-5/8" API REG
|
|
Make up Torque(KN.m)
|
10.4~11.4
|
24.1~26.5
|
24.1~26.5
|
51.7~56.9
|
N.W./ G.W.(KG)
|
338/388
|
|
Rotary Speed(rpm)
|
60-260
|
60-260
|
60-260
|
60-260
|
Nozzle Size (inch)
|
10/32
|
|
Weight on Bit(KN)
|
8-50
|
20-100
|
20-100
|
30-140
|
Rotary Speed(Rpm)
|
60-260
|
|
Max.WOB(KN)
|
90
|
130
|
130
|
180
|
Weight On Bit(KN)
|
30-200
|
|
Flow Rate(lps)
|
10-30
|
22-35
|
22-35
|
38-70
|
Max.WOB (KN)
|
240
|
|
|
|
|
|
|
Flow Rate(lps)
|
45-80
|
|
Above are regular sizes for your reference. Size can be customized as per your requirement.
|
|
|
3.Regular Size
These (PCD) bits shear the rock with a continuous scraping motion and are very effective in shale (and other hard) formations, especially when used with oil-based muds.
The most common sizes are 3 7/8" to 6 1/4",
other sizes available upon request.
4.Application
They are made by combining layers of Poly-Crystalline Diamond (Synthetic Diamond) with substrate of carbide at high temperature and pressure.
●Geo Exchange / Geothermal
●Geo Technical
●Water Well
●Seismic and Mining
●Horizontal Directional Drilling
●Frac Plug Drilling
●Other Drilling Applications
Related drill bit
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
we have designed and made PDC drill bits for oil and gas industry, and still continue to innovate while using top of the line degree of workmanship and skill to make sure every hole opener as well as drill bit is crafted for your use and requirement to perfection by our experienced professionals.
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
Q: Which kind pf application can be used for PDC bit?
A: Mining, tunnel, foundation pit, quarry, oil, well, etc.
Q: Do you have different type for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different type respectively.
Q:Are you Manufacture or Factory?
A:Yes we have our own factory.
Q:What the MOQ?
A. 1pc.
Q:How to place an order?
A. Inform size and model/main usage/quantity
Q:What is the Payment?
A. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
We also can accept L/C AT SIGHT if the quantity is large.
