6 1/2 inch Imported Material PDC Drill Bits for sandstone drilling

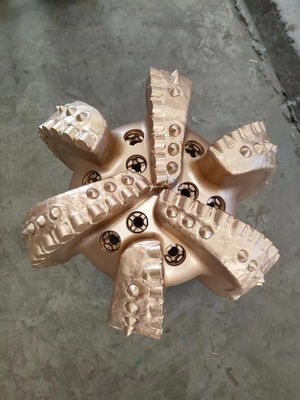

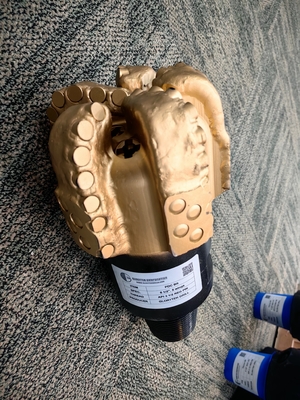

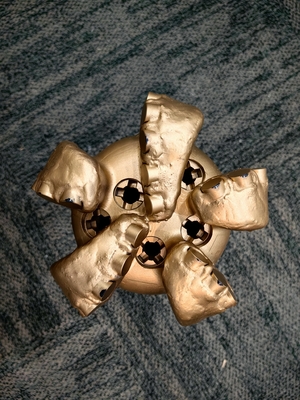

Detailed drawing
1.Main Features
High wear resistance and high impact strength.
Long service life, the service life of PDC bits is 4 to 5 times longer than diamond bits and 10 times longer than tungsten carbide bits.
High efficiency and cost-effective.
We are a PDC bits supplier. If you are interested in our products, please contact us now!
2. Product Parameters
|
Bit Type
|
6"
|
8-1/2"
|
8-1/2"
|
12-1/4"
|
Bit Type
|
17-1/2" GM1606T
|
|
IADC Code
|
M423
|
M432
M332
|
M323
|
M432 M332
|
IADC Code
|
M323
|
|
Blade
|
5
|
6
|
8
|
6
|
Blade
|
6
|
|
Cutter Size (mm)
|
Φ13MM
|
Φ16MM
|
Φ13MM
|
Φ16MM
|
Cutter Size (mm)
|
Φ16MM;Φ13MM
|
|
Nozzle Qty/Type
|
5
|
13.2
|
9.6
|
30.78
|
Cutter Qty
|
Φ16×58;Φ13×81
|
|
Nozzle Qty/Type
|
3NZ
|
6NZ
|
4NZ
|
6NZ
|
Nozzle Qty/Type
|
8NZ
|
|
Gauge Length
|
1.5"
|
2.2"
|
2"
|
2.5"
|
Gauge Length (mm)
|
110
|
|
Connection
|
3-1/2" API REG
|
4-1/2" API REG
|
4-1/2" API REG
|
6-5/8" API REG
|
Connection
|
7-5/8" API REG
|
|
Make up Torque(KN.m)
|
10.4~11.4
|
24.1~26.5
|
24.1~26.5
|
51.7~56.9
|
N.W./ G.W.(KG)
|
338/388
|
|
Rotary Speed(rpm)
|
60-260
|
60-260
|
60-260
|
60-260
|
Nozzle Size (inch)
|
10/32
|
|
Weight on Bit(KN)
|
8-50
|
20-100
|
20-100
|
30-140
|
Rotary Speed(Rpm)
|
60-260
|
|
Max.WOB(KN)
|
90
|
130
|
130
|
180
|
Weight On Bit(KN)
|
30-200
|
|
Flow Rate(lps)
|
10-30
|
22-35
|
22-35
|
38-70
|
Max.WOB (KN)
|
240
|
|
|
|
|
|
|
Flow Rate(lps)
|
45-80
|
|
Above are regular sizes for your reference. Size can be customized as per your requirement.
|
|
|
3.Regular Size
-Wings: 2-wings,3-wings, 4-wings, 5-wings and 6-wings etc.
-Normal Size: 6'',7 7/8'',8 1/2'',9 7/8'',12 1/4'',17 1/2''(27mm-559mm)
other sizes available upon request.
4.Application
PDC drill bit is used for weak and dangerous rock, foundation treatment, broken ground and other grouting reinforcement
drilling;
It is used for tunnel ventilation, exhaust gas, monitoring drilling of rock mass buildings and concrete sampling drilling;
The application of balancing software makes the angle of cutting teeth more scientific.
Packing and Delivery
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
we have designed and made PDC drill bits for oil and gas industry, and still continue to innovate while using top of the line degree of workmanship and skill to make sure every hole opener as well as drill bit is crafted for your use and requirement to perfection by our experienced professionals.
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
Q: Which kind pf application can be used for PDC bit?
A: Mining, tunnel, foundation pit, quarry, oil, well, etc.
Q: Do you have different type for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different type respectively.
Q:Are you Manufacture or Factory?
A:Yes we have our own factory.
Q:What the MOQ?
A. 1pc.
Q:How to place an order?
A. Inform size and model/main usage/quantity
Q:What is the Payment?
A. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
We also can accept L/C AT SIGHT if the quantity is large.
