TCI Teeth Elastomer sealed bearing tricone rock bit

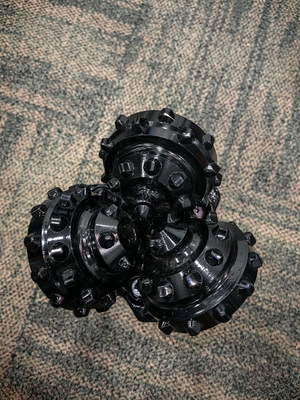

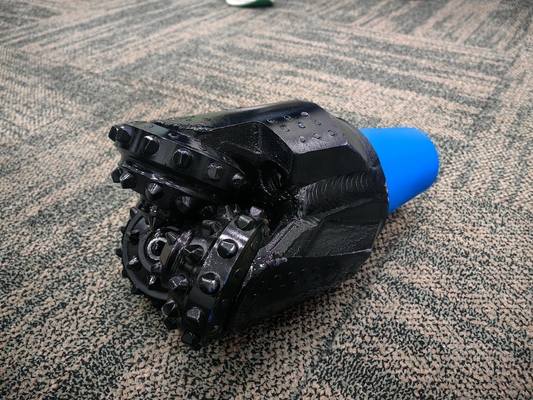

The Photo of products
1.Description:
Cutting Structure
The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit.
Gauge Structure
Multiple gauge protection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
Bearing Structure
High precision bearing with two thrust faces. Ball lock the cone.Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.
Seal and Lubrication
Premium O-ring, Optimal seal compression and curved seal structure can enhance the seal performance. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
Product Application
It can receive highWOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape, tooth density and tooth exposure height.
2.Applications:
Tricone Bits are widely used in Petroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work.
3.Specifications:
4.Feature Advantage:
When the roller bit is working, the cutting teeth contact the bottom of the well alternately, the rock breaking torque is small, the contact area between the cutting teeth and the bottom of the well is small;
The specific pressure is high, and it is easy to cut into the formation;
The total length of the working edge is large, so the wear is relatively reduced;
The roller bit can adapt to a variety of formations from soft to hard.
5.Packing and Delivery:
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
