Drill pipes
Product Description
Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.
According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice versa. Usually we are offering 50mm,60mm,76mm,89mm,95mm,102mm,114mm127mm,140mm,159mmetc.
usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc.
According to customers request, from1000mm to 6000mm length of pipe are available.
Product Parameters
|
Outer diameter
|
Thread
|
Wall thickness
|
Length
|
Wrench flat
|
|
mm
|
mm
|
mm
|
mm
|
|
76
|
2-3/8 API REG
|
5.5
|
1000
|
57
|
|
1500
|
|
2000
|
|
3000
|
|
1000
|
65
|
|
1500
|
|
2000
|
|
3000
|
|
6.5
|
3000
|
|
4500
|
|
6000
|
|
89
|
2-3/8 API REG
|
|
1000
|
65
|
|
1500
|
|
2000
|
|
3000
|
|
6.5
|
1000
|
|
1500
|
|
2000
|
|
3000
|
|
4500
|
|
6000
|
|
102
|
2-3/8 API REG
|
6.5
|
1000
|
75
|
|
1500
|
|
2000
|
|
3000
|
|
4500
|
|
6000
|
|
2-7/8 API REG
|
1000
|
83
|
|
1500
|
|
2000
|
|
3000
|
|
4500
|
|
6000
|
|
114
|
3-1/2 API REG
|
6.5
|
1000
|
95
|
|
1500
|
|
2000
|
|
3000
|
|
4500
|
|
6000
|

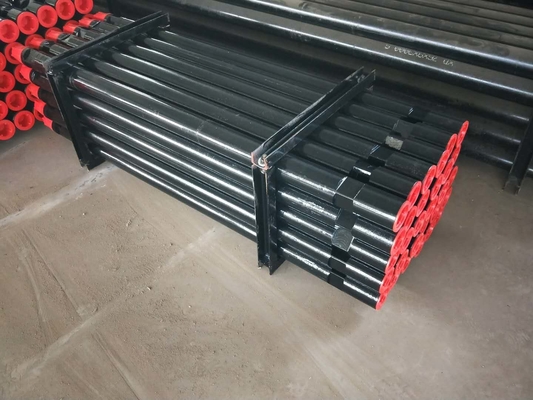

Detailed Photos
Company Profile
Glorytek Industry (Beijing) Co., Ltd,
located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
After-sale Warranty
(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we
have drilling equipments like rigs, mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100%
advance payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
